Collection: Lifting stations

Which lifting station suits your situation?

A lifting station discharges wastewater that is produced below sewer level: a toilet in the basement, a washing machine in the cellar, a bathroom on a houseboat. The first question is always whether sewage passes through the station, because that determines which standard applies.

What to look for

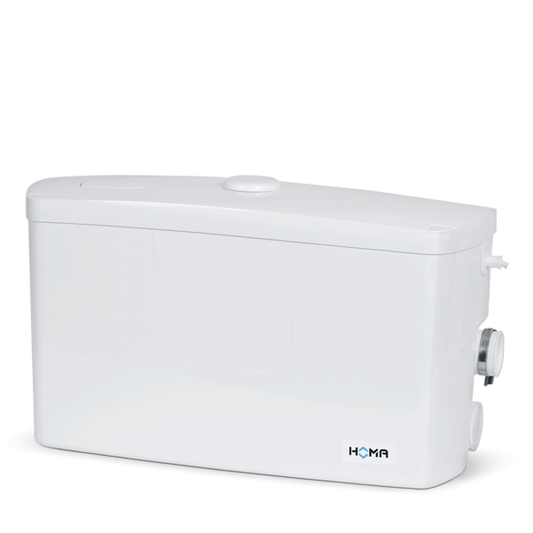

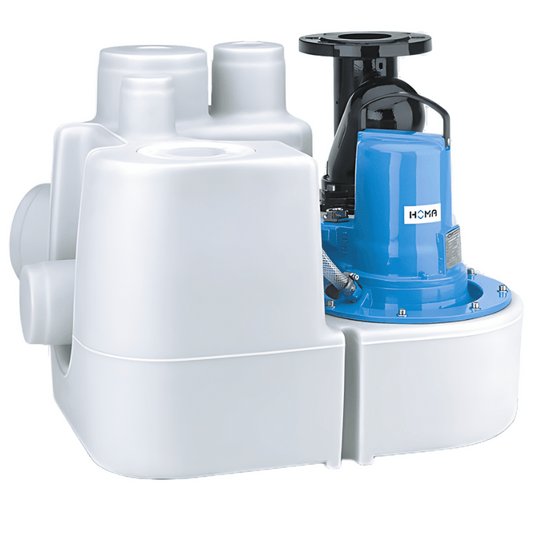

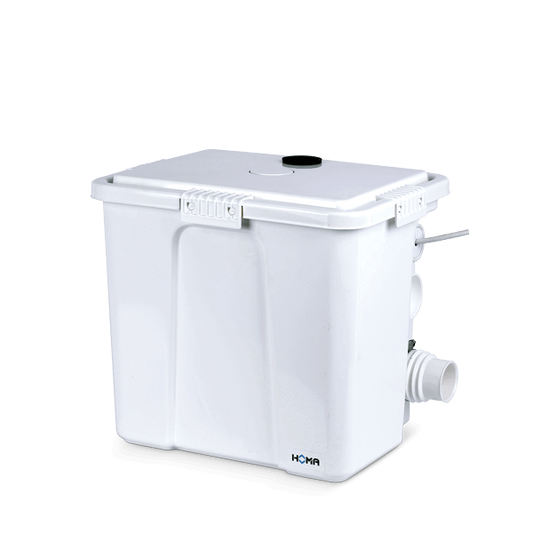

• With or without sewage. For a toilet, EN 12050-1 applies; for grey water only (wash basin, washing machine, shower) a lighter station is enough. Never choose a grey water station for a toilet.

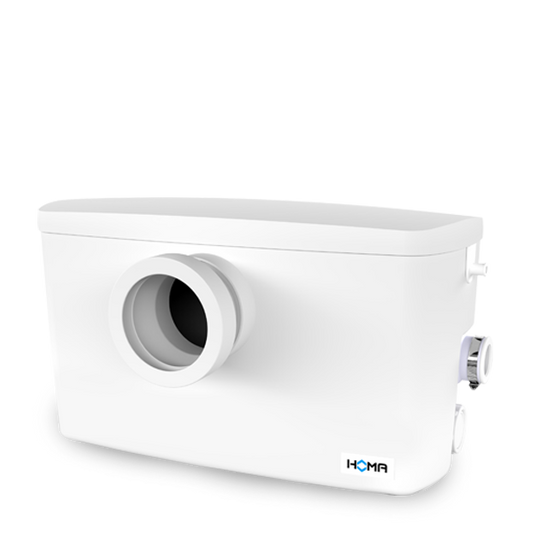

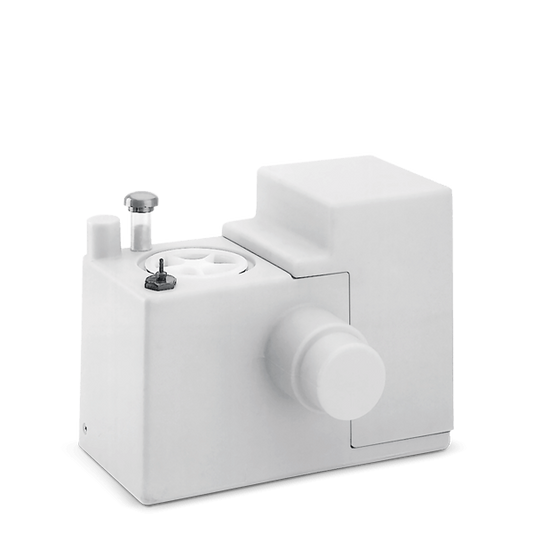

• Cutting system or vortex. A cutting system shreds solids so they pass through a thin pressure pipe — useful when the sewer is far away or the ground rises. Note that cutter pumps need back pressure. If the pressure pipe is short and wide, a vortex impeller is more reliable.
• Tank volume. The more tapping points and the greater the peak load, the larger the tank. For a single toilet, compact is enough; for a whole household or a business, go bigger.

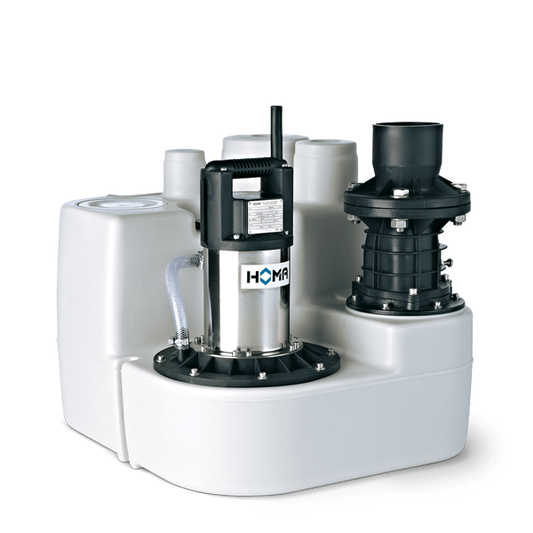

• Submersible. If the station stands in a room that can flood, choose a submersible version. The control unit does have to go in a dry, well-ventilated room.

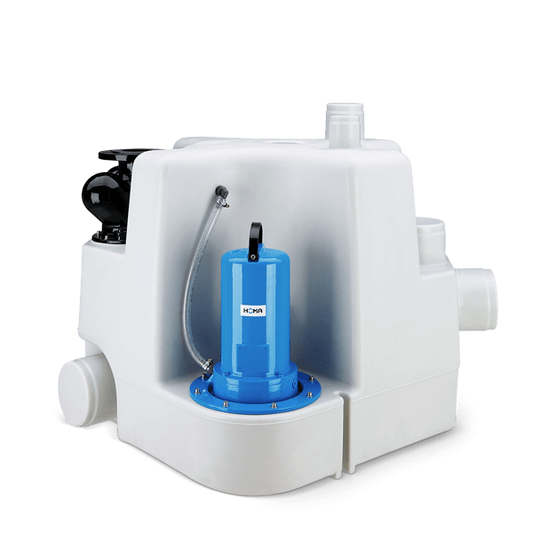

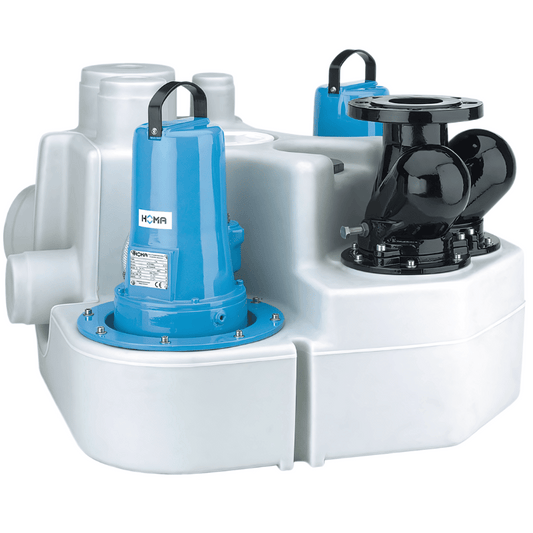

• Single or twin pump. Two pumps that alternate wear evenly and take over from each other on failure. For a hotel, a business or a shared line that is not a luxury but operational reliability.

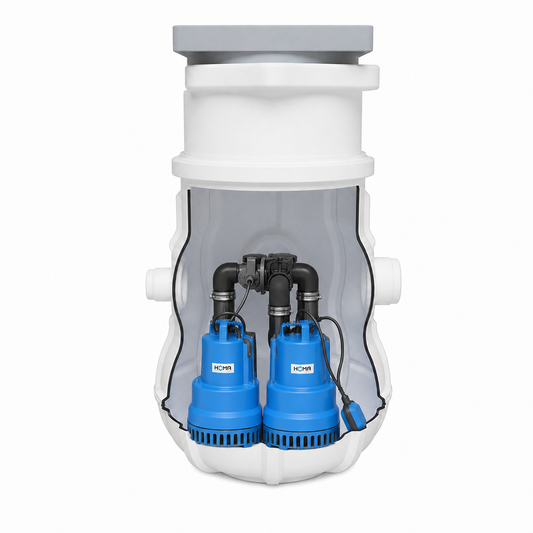

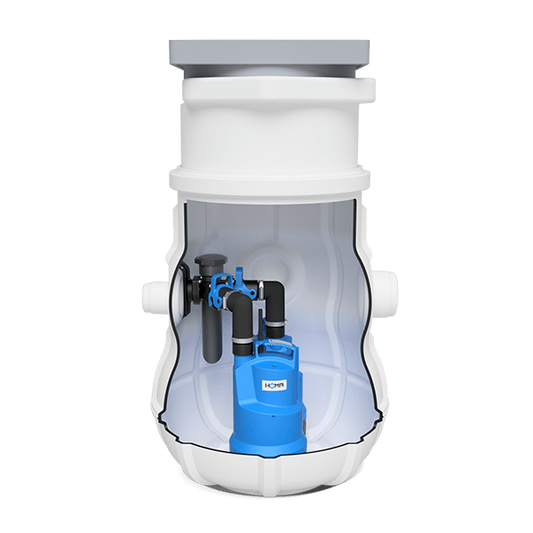

If the station has to go underground outside, see the pump sumps. For wastewater without a toilet you can also look at the grey water pumps or the sewage pumps. Not sure? Use the pump selector or call +31 85 210 08 97.
