Pros and cons:
+ Complete lifting station with proven Bully C140 WA pump, pre-installed and ready for connection
+ Carbon filter in the ventilation with overflow protection — no odors
+ CH140 version resistant to chemically contaminated water, such as salt water (15%) or condensate
- For grey wastewater (no faeces); solids up to 10 mm
Wastewater lifting station with interchangeable pump:

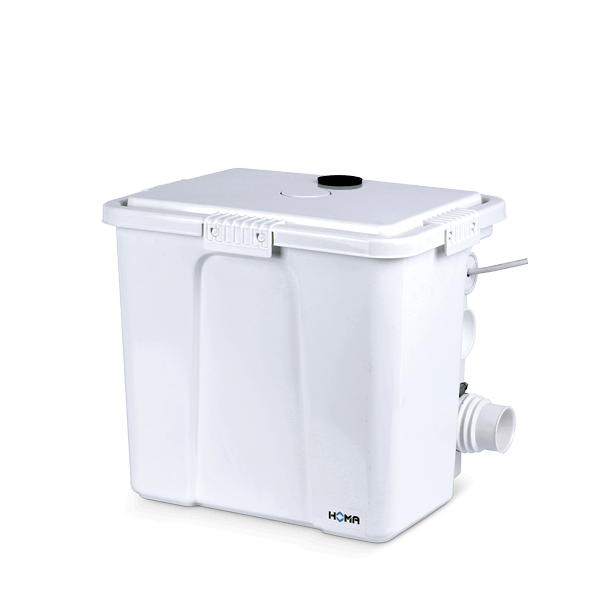

The HOMA San.iQ plus is a wastewater lifting station with an above-ground collection tank in which a complete Bully C140 WA submersible pump is pre-installed and ready for connection. That is the big difference with fixed mini-installations: if the pump breaks down after years of service, you only replace the pump instead of the entire installation.
Choose the CH140 version if the wastewater is chemically contaminated — think of condensate from a central heating boiler or salt water from a water softener. In practice, we mostly see the standard C140 version for washing machines and showers in the basement, and the CH version in boiler rooms. Both operate fully automatically with a standard power outlet.
Scope of supply:
Reservoir with Bully C(H)140 WA pump pre-installed and ready for connection, elastic connector, non-return valve in the pressure outlet, carbon filter in the ventilation with overflow protection, 5 m cable and plug.
Technical specifications:
| Head (Hmax): | 7.0 m |
| Flow rate (Qmax): | 6.5 m³/hour |
| Power (P2): | 0.17 kW |
| Voltage: | 230 Volt / 1 phase |
| Free passage: | 10 mm |
| Pressure connection: | Ø 40 mm |
| Inlets: | 1x 40 mm / 4x 50 mm |
| Item numbers: | 9804170 / 9804171 |
Downloads:
Datasheet and manual available on request via our customer service.
Non-binding advice?
Are you unsure between the C140 and CH140 versions? Feel free to contact our customer service — we are happy to help you.
