Article number: JP50076
COMPLI 300E - Pentair Jung Pumpen
A station with unique features:

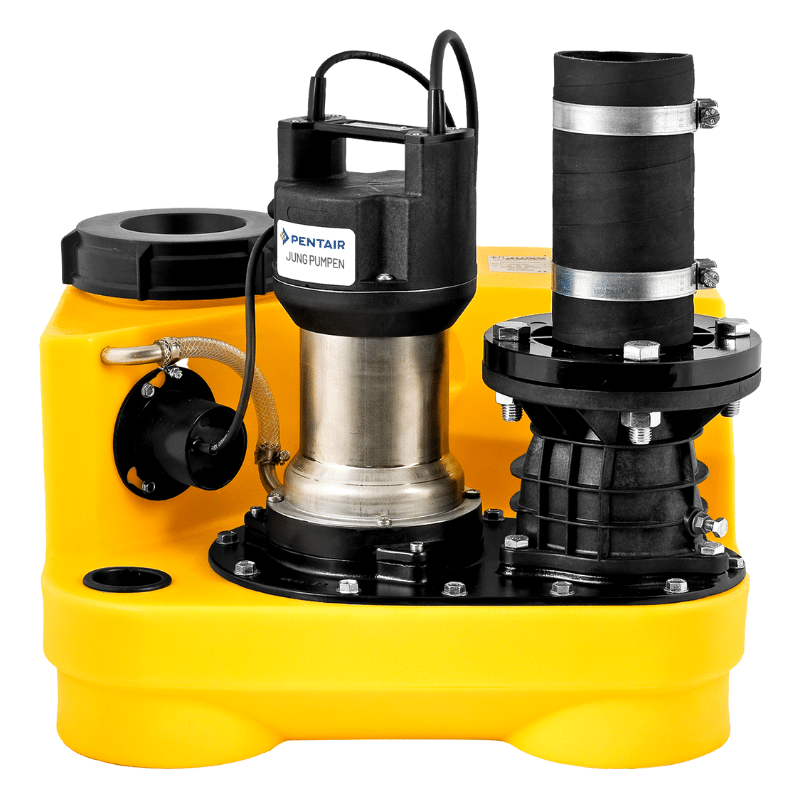

The Compli 300 E is the smallest sewage lifting station in the Compli series. This system is specially developed for the discharge of wastewater from residential units such as basement apartments. Thanks to its very compact reservoir dimensions and numerous connection options, the Compli 300 E is versatile.
The Compli 300 E is effortless to install, not only due to its low weight but also because of the plug with an integrated circuit board, so you don't need an electrician to commission the system.
The powerful AC motor of the Compli 300 E rests on a stable base with a ring-shaped cast iron housing, which makes the system particularly stable and ensures smooth operation.
Pros and cons:
+ Suitable for submersion: no risk during flooding
+ Most compact model in our range
+ Delivered ready for connection: incl. control box

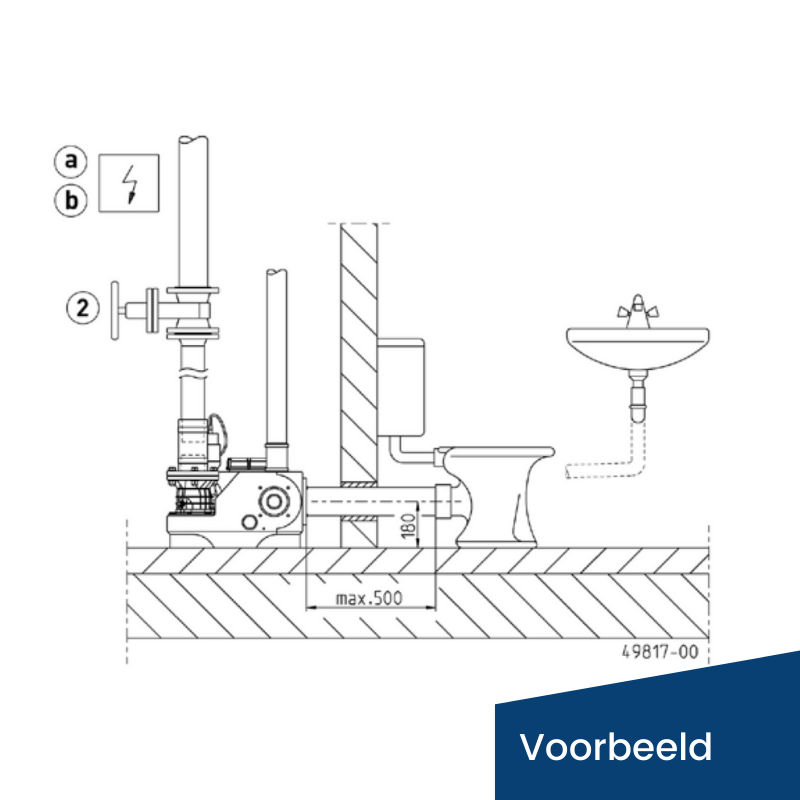

+ Variable connection options mean the unit can be placed almost anywhere
+ Possibilities to link to SMART HOME systems
+ Reliable VORTEX impeller and PE reservoir
+ 5-year factory warranty!
- Pumps with cutting mechanisms require backpressure: view stations without cutting systems here
Why a lifting station from Pentair?
The range of sewage lifting stations extends from small installations for processing a single toilet to large installations for hotels, shops, and industry. All installations operate automatically and are distinguished by container volumes and pump sizes. All installations are fully produced and assembled in our own factory in Germany. The various PE reservoirs are also produced here by Pentair itself.
Not 2 but 5 years warranty!
We are convinced of the quality of our products. That is why we offer SHK-FACHBETRIEBEN a 5-year warranty on the purchase of selected products.
Register your pump to claim the warranty!
Scope of delivery:
Ready-to-connect tank system according to EN 12050 with clamp flange DN 100 for inlet height 180 mm, additional inlets DN 100/50 horizontal and vertical, mounted submersible pump and connection flange DN 80 with pipe section 90 mm outer diameter, pre-assembled check valve DN 80, elastic connection with clamps for plastic pressure pipe DN 80 and a slide sleeve for the ventilation pipe DN 70, automatic float switch, control system (protection class IP 44) with mains voltage-dependent audible alarm, LED display "ready for operation", manual-0-auto switch and potential-free contact for alarm forwarding. Power cable 4 m.
Delivered by pallet, please take into account the weight.

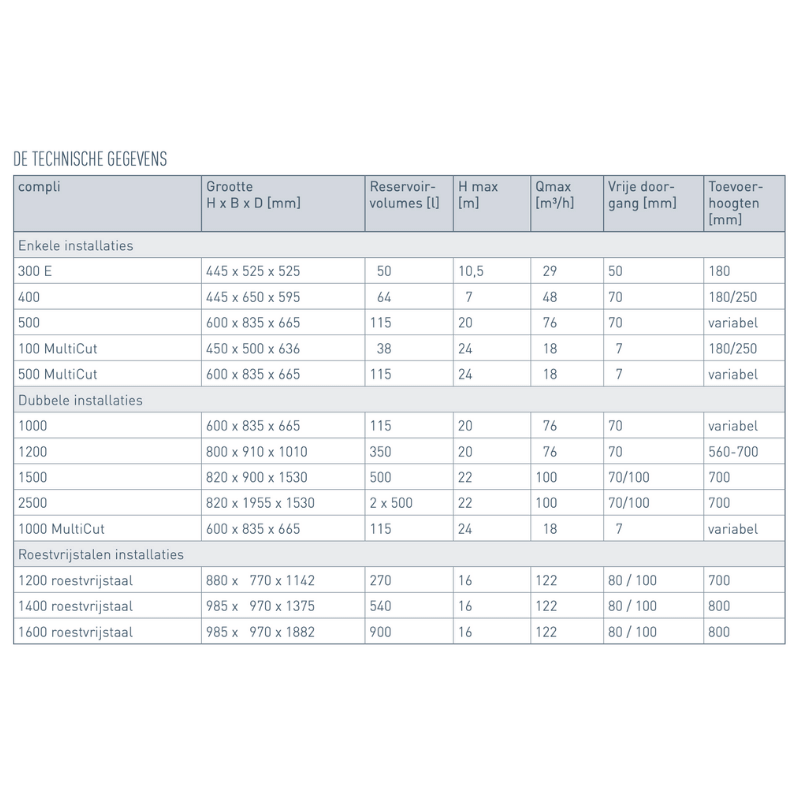

Technical specifications:
| Delivery head: | 7 meters |
| Flow rate: | 30 m3/hour |
| Power (P1): | 1.37 kW |
| Voltage: | 230 Volts |
| Rated current: | 6.0 A |
| Tank capacity: | 50 liters |
| Weight: | 31 kg |

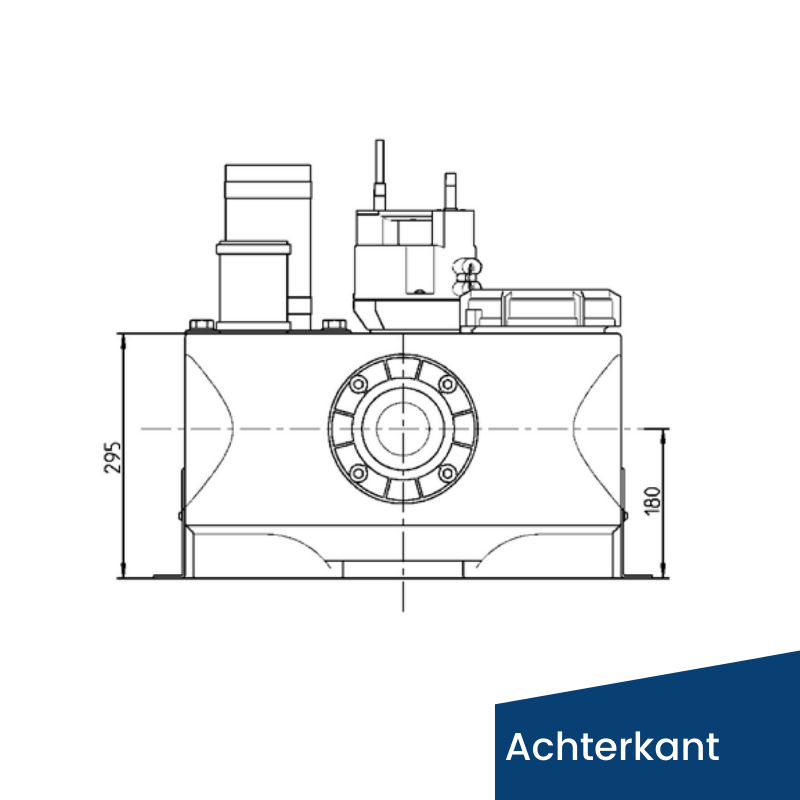

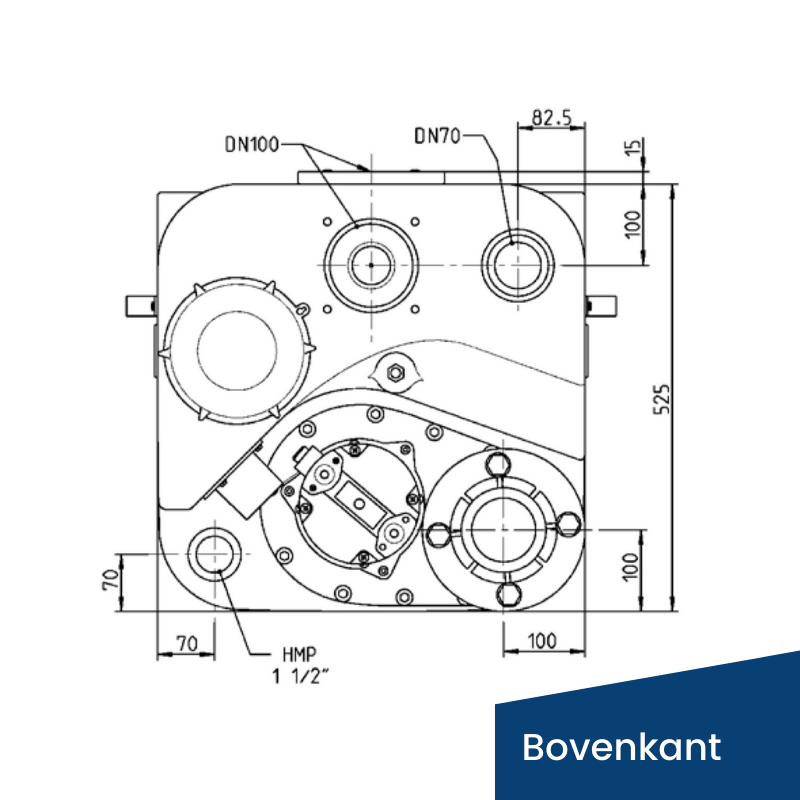

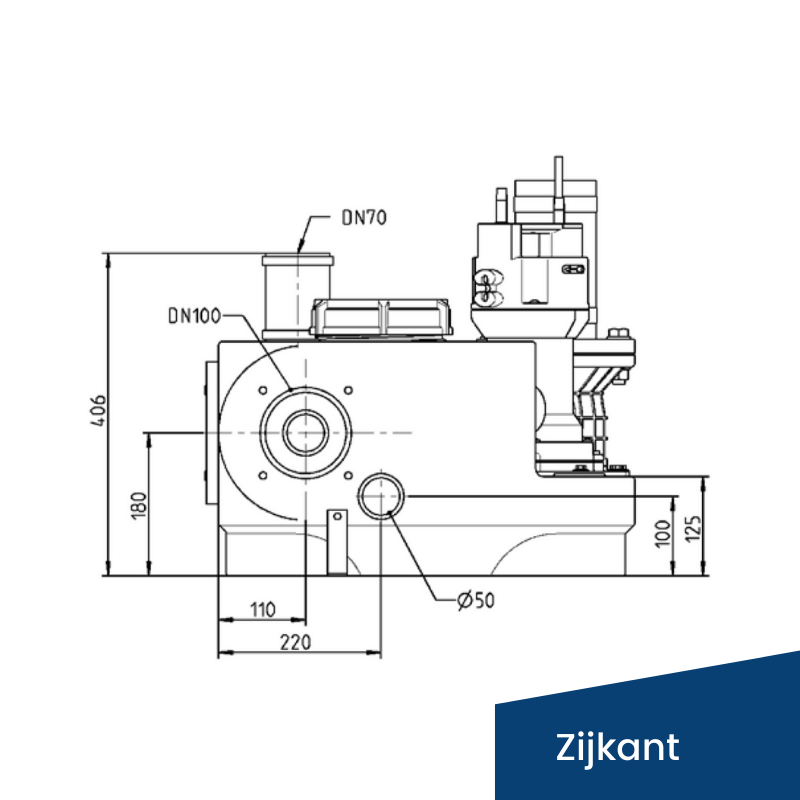

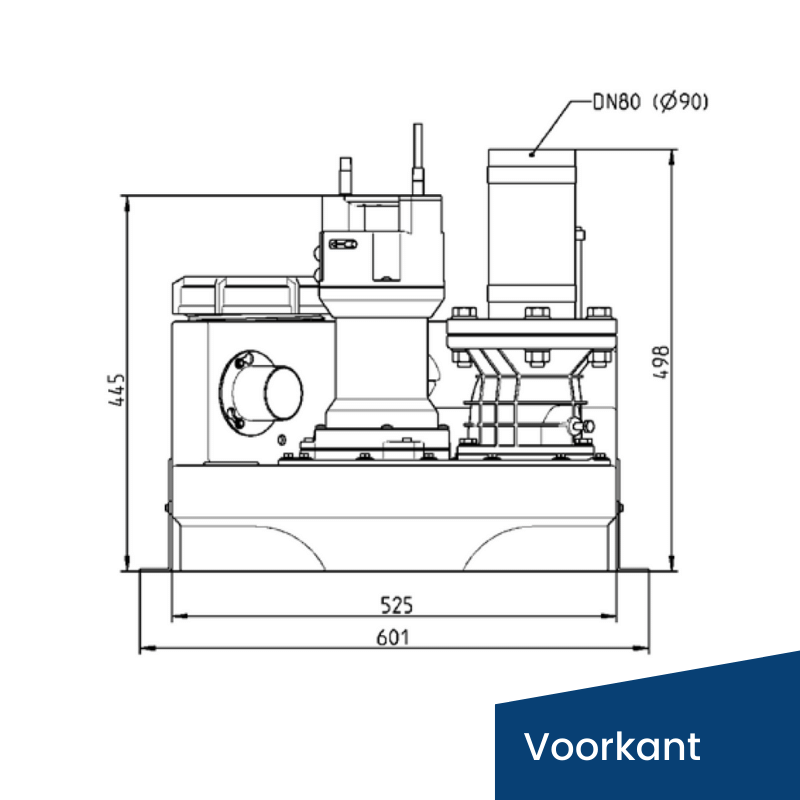

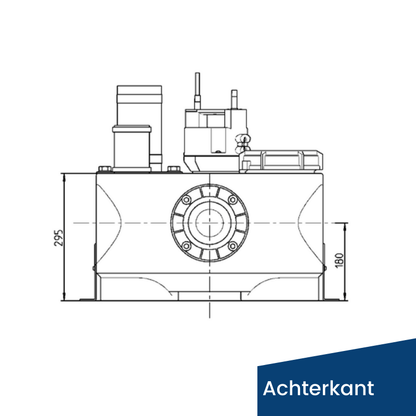

| Dimensions: | See images |
| Pressure connection: | DN 80 flange |
| Plug: | Schuko |
| Power cable: | 4m H07RN-F |
| Free passage: | 7mm |
| Impeller: | Vortex, GRP |
Downloads:
1. Product sheet COMPLI 300 E
2. User manual COMPLI Series
3. Promo sheet COMPLI series
4. Technical drawing COMPLI 300 E (dwg)
