Article number: JP50077
COMPLI 310 E - Pentair Jung Pumpen
A station with unique features:

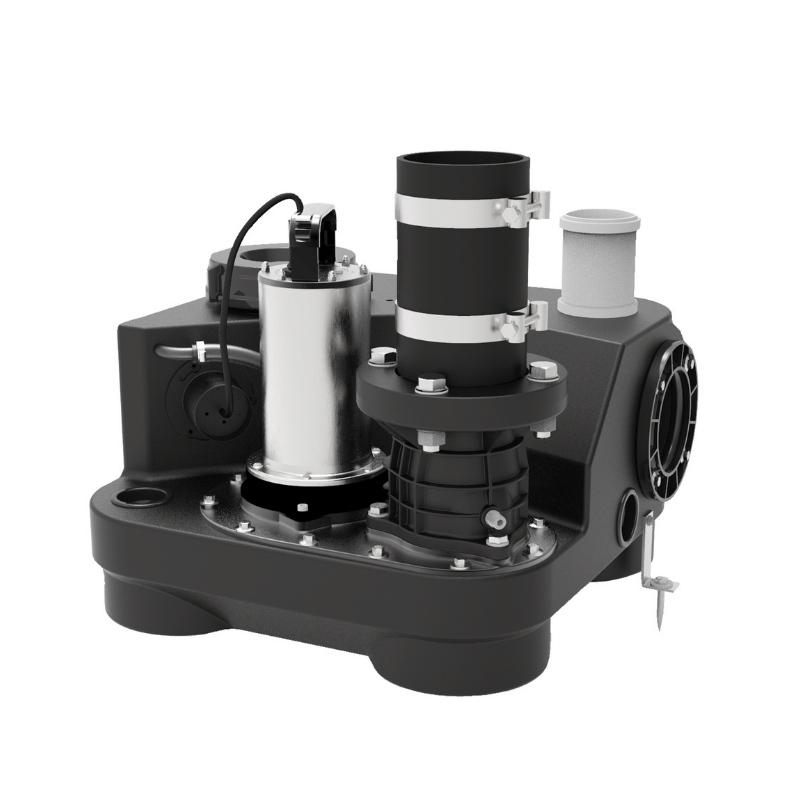

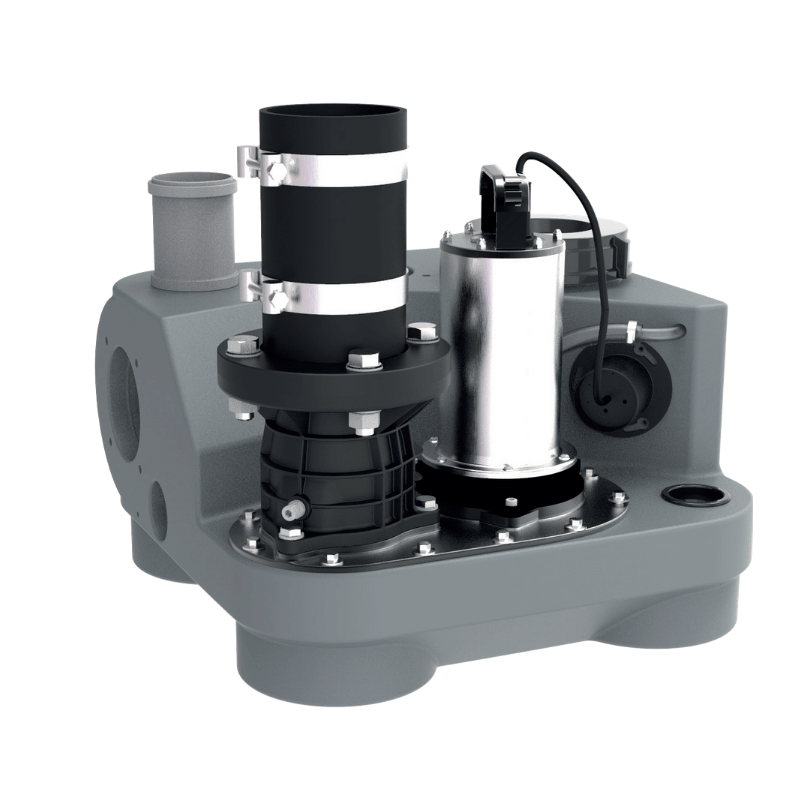

The COMPLI 310 E is the smallest sewage lifting station in the COMPLI range. This station has been specially developed for the discharge of wastewater from homes, for example, homes with a basement. Thanks to its very compact tank dimensions and numerous connection options, the COMPLI 310 E is versatile.
The COMPLI 310 E is easy to install, not only due to its low weight but also because of its plug with integrated control, meaning you don't need an electrician to commission the installation.
The submersible installation can be used for general purposes in areas at risk of flooding. The socket must be connected in a well-ventilated and flood-protected area.
The powerful single-phase motor of the COMPLI 310 E rests on a stable base with an annular cast iron housing, which makes the installation particularly stable and ensures smooth operation.
Pros and cons:
+ Suitable for submersion: no risk during flooding
+ Most compact model in our range
+ Supplied ready for connection: incl. control cabinet
+ Variable connection options mean the unit can be placed almost anywhere
+ Options for coupling to SMART HOME systems
+ Non-return valve prevents pipe drainage
- Potentially insufficient capacity for your situation
Why a lifting station from Pentair?

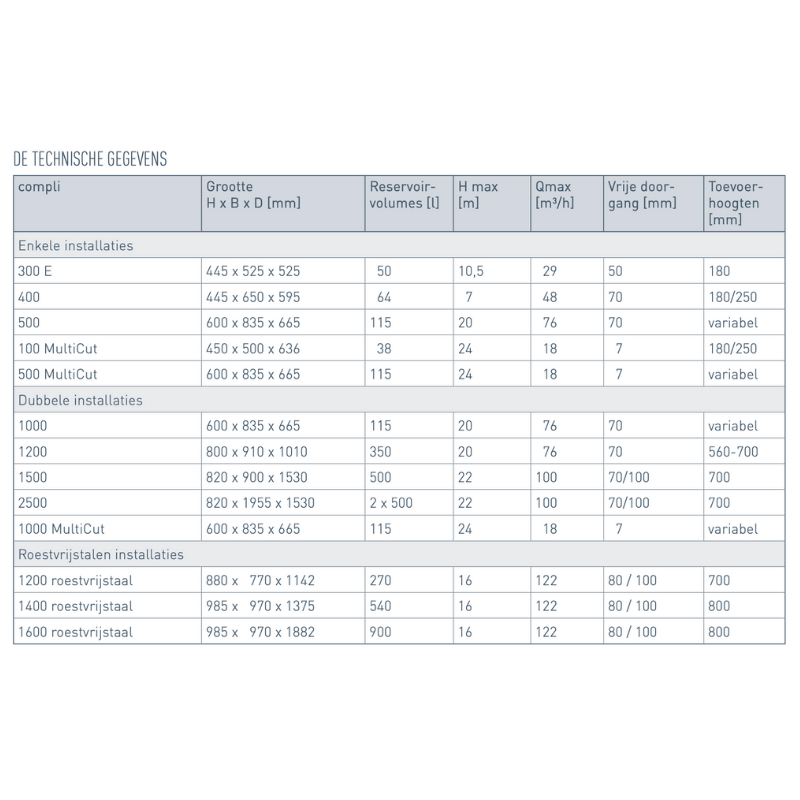

The range of sewage lifting stations extends from small installations for processing a single toilet to large installations for hotels, businesses, and industry. All installations operate automatically and are distinguished by container volumes and pump sizes. All installations are fully produced and assembled in Pentair's own factory in Germany. The various PE tanks are also produced here by Pentair themselves.
Not 2 but 5 years warranty!
We are convinced of the quality of our products. That is why we offer SHK-FACHBETRIEBEN a 5-year warranty on the purchase of selected products.
Register your pump to claim the warranty!
Scope of delivery:

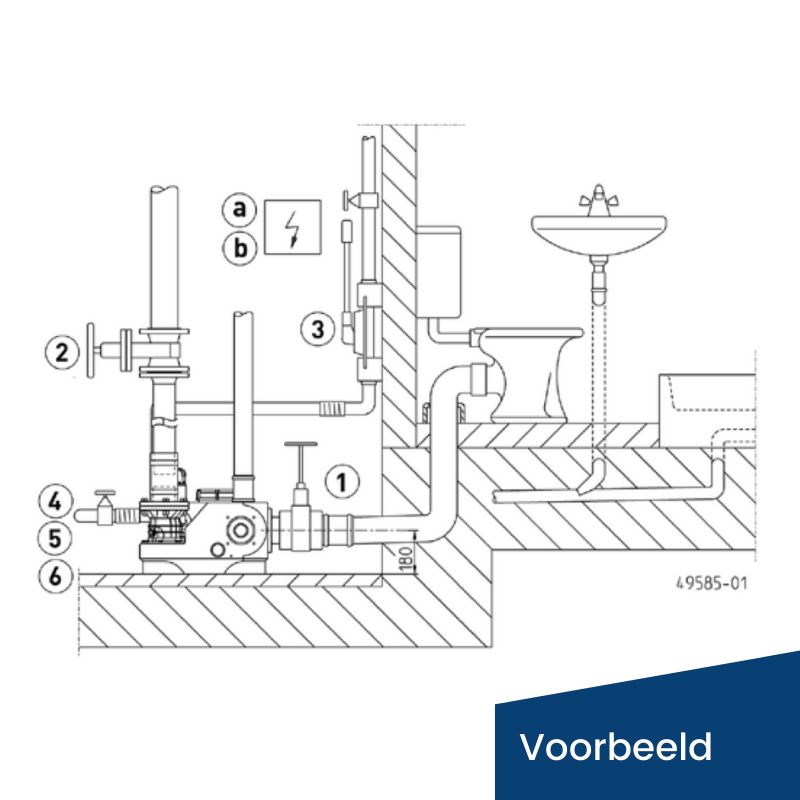

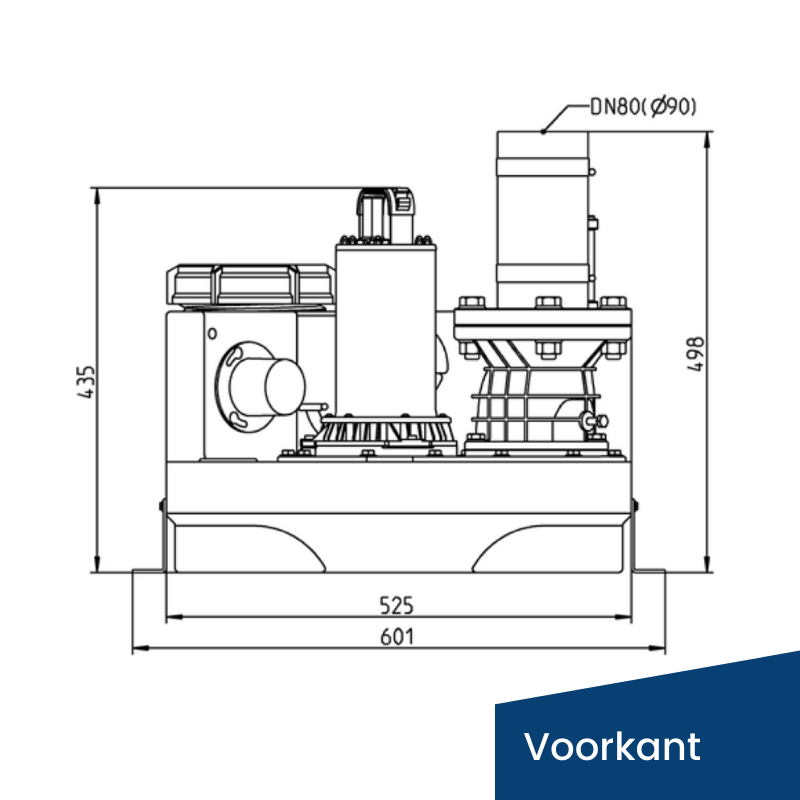

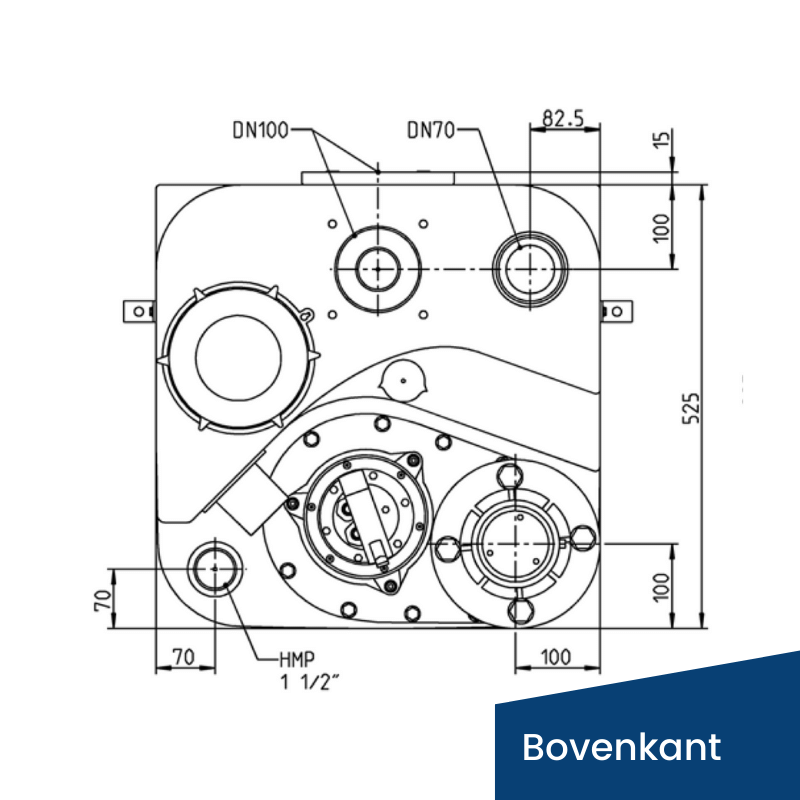

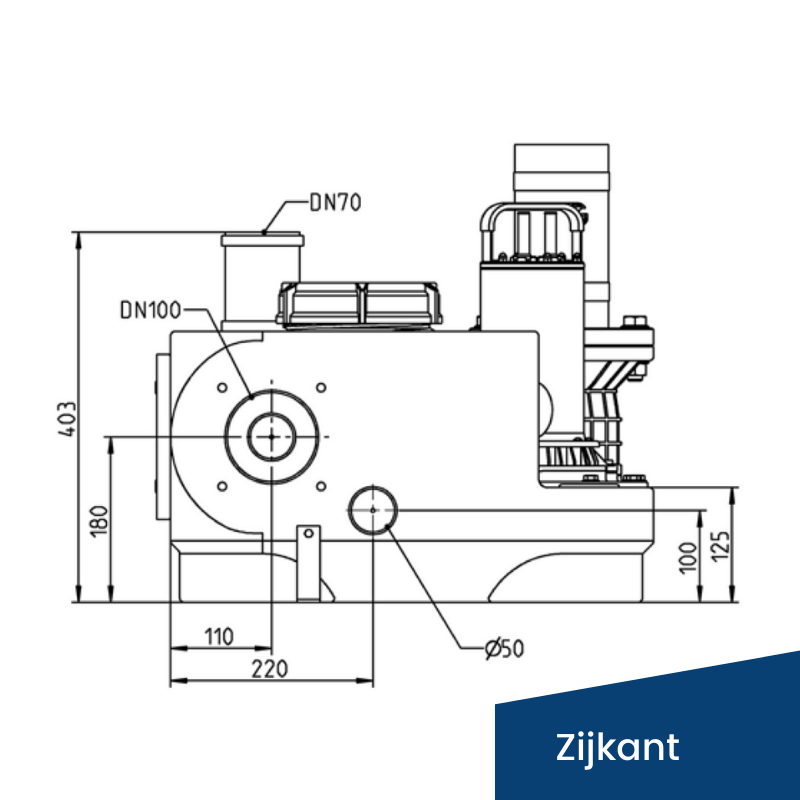

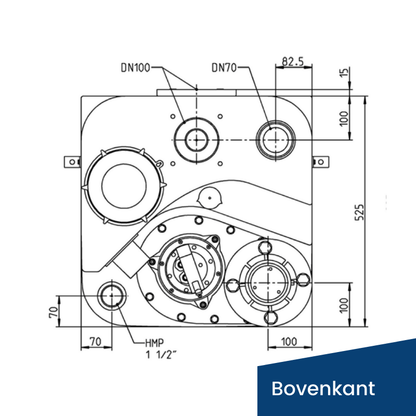

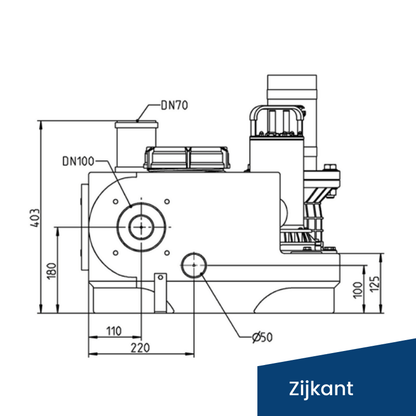

Ready-to-connect tank installation according to EN 12050 with clamp flange DN 100 for inlet height 180 mm, additional inlets DN 100/50 horizontal and vertical, mounted submersible pump and connection flange DN 80 with pipe section 90 mm outer diameter, pre-assembled non-return valve DN 80, elastic connection with clamps for plastic pressure pipe DN 80 and a sliding sleeve for the ventilation pipe DN 70, automatic float switch, control system (protection class IP 44) with mains voltage-dependent audible alarm, LED display "ready for operation", manual-0-auto switch and potential-free contact for alarm forwarding. Power cord 4 m.

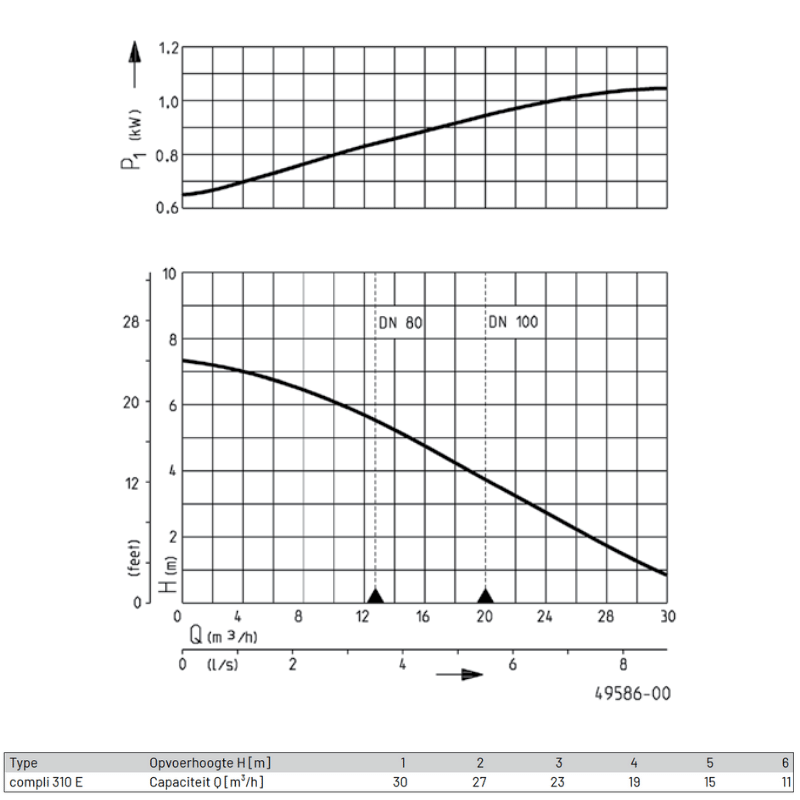

Technical specifications:
| Head: | 6 meters |
| Flow rate: | 30 m3/hour |
| Power 1 pump: | 1.20 kW |
| Voltage: | 230 Volt |
| Tank capacity: | 50 liters |
| Weight: | 31 kg |
| Power cable: | 4m H07RN-F, Schuko plug |
| Free passage: | 50mm |
Downloads:
1. Product sheet COMPLI 310 E
2. User manual COMPLI 310 E
3. Promo sheet COMPLI series
