Pros and Cons:
+ Dual pump installation with 2 pumps — reliable, even with large volumes of water
+ PCM control box with pneumatic level control and alarm included
+ Underground tank (66 L) with tileable, odour-tight cover — disappears completely into the floor
- For wastewater without faeces
Twin-pump pumping station for wastewater below sewer level:

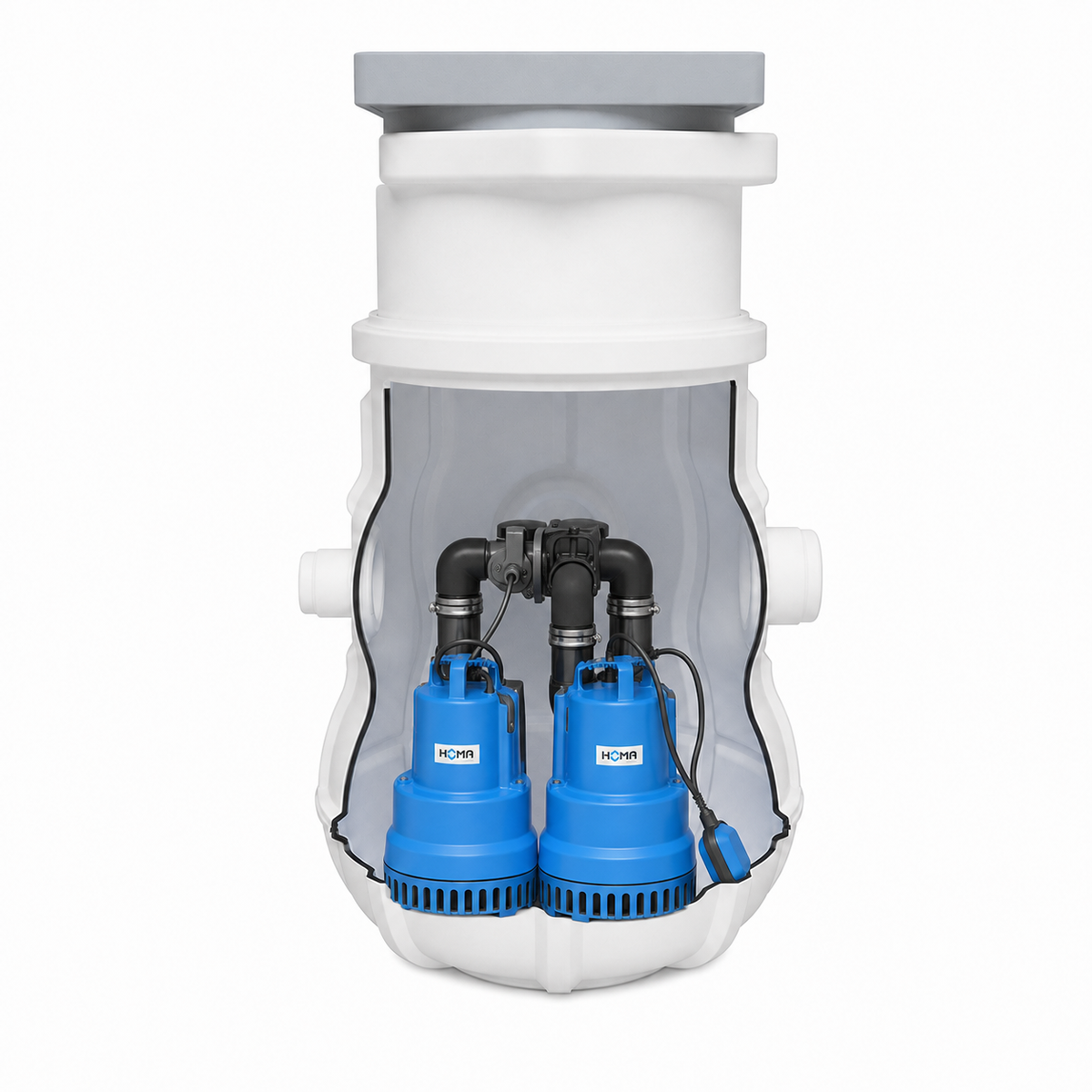

The HOMA Saniquick UFT100 is the complete underground pumping station for basements, cellars and garages where reliability is paramount: two pumps with non-return valves and piping are already installed in the tank, controlled by the PCM control box with pneumatic level control and alarm.
You choose the version based on the desired pump: from the compact C140 (7 m head) to the powerful TP28 series (up to 13.6 m and 25 m³/hour). The CH versions are chemically resistant. The cover plate is tileable, height-adjustable and 360° rotatable. A separate tank (without pumps) is also available.
Scope of delivery:
Tank with compensation frame, tileable cover, 2 pumps with non-return valve and piping, 10 m cable, PCM control box with pneumatic level control and alarm. (Version "tank": without pumps.)
Technical specifications:
| Head (Hmax): | 7.0 - 13.6 m (depending on pump choice) |
| Flow rate (Qmax): | 6.5 - 25.2 m³/hour |
| Power (P2): | 0.17 - 0.90 kW |
| Voltage: | 230V (W) / 400V (D) |
| Tank capacity: | 66 litres |
| Inlets: | 3x Ø 110 mm |
| Discharge connection: | 1¼" int. |
| Material: | Polyethylene tank |
Downloads:
Datasheet Saniquick UF100/UFT100 (PDF)
Manual Saniquick UF/UFT (PDF, DE/EN/NL)
Non-binding advice?
Are you unsure which UFT100 version suits your situation? Please feel free to contact our customer service — we are happy to help you.
