Pros and cons:
+ Stainless steel cutting mechanism shreds solids — thin pressure pipe (DN 40/50) is sufficient
+ Submersible and odor/gas-tight plastic tank
+ Incl. pneumatic level control and control box
- Single pump: for redundancy, choose the dual pump Sanimaster G
Faecal lifting station with shredder pump:

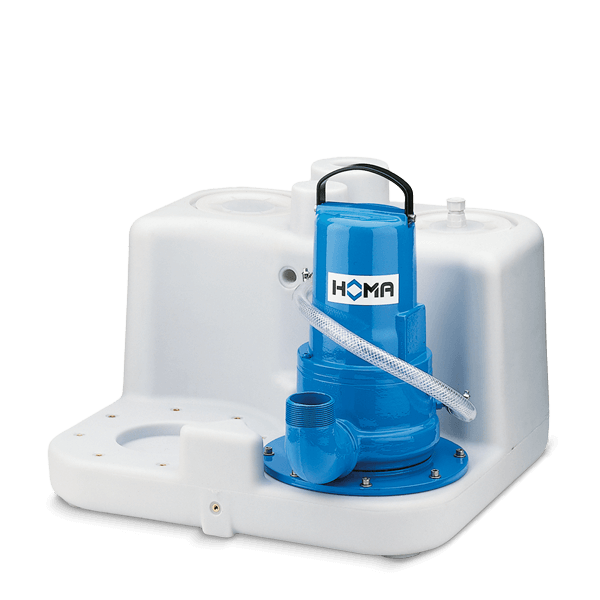

The HOMA Saniboy G pumps wastewater with faeces from toilets, washbasins and showers in areas below sewer level (DIN EN 12056). The pre-mounted shredding mechanism reliably shreds solids before they enter the pressure pipe — this allows for a thin pressure pipe of DN 40 or DN 50, keeping installation costs low. Also suitable for sparsely populated areas or difficult topography where small pipe diameters are required.
Choice of tank type 180 (inlet height 180 mm) or type 250 (250 mm). The GSP versions are the entry-level models on 230V; the G versions deliver up to 33 m head (230V or 400V).
Scope of delivery:
Tank with 1 shredder pump, pneumatic level control and control box. Pump cable: 3 m, control box: 0.8 m.
Technical specifications:
| Head (Hmax): | 17.3 - 33.0 m |
| Flow rate (Qmax): | 15.1 - 20.9 m³/hour |
| Power (P2): | 0.90 - 1.90 kW |
| Voltage: | 230V (W) / 400V (D) |
| Pressure connection: | 1½" int. |
| Inlets: | DN 40 / DN 100 |
| Speed: | 2900 rpm |
| Material: | Pump housing and impeller cast iron, shredder stainless steel 1.4528, tank plastic |
Downloads:
Datasheet Saniboy G / Sanimaster G (PDF)
Manual Saniboy G / Sanimaster G (PDF, DE/EN/NL)
Non-binding advice?
Are you undecided between Saniboy (single pump) and Sanimaster (dual pump)? Feel free to contact our customer service — we are happy to help you.
