Pros and cons:
+ Fully available: choose the tank with the desired pump (WA = 230V or DA = 400V, both with float) — direct plug & play
+ Underground tank (66 L) with tileable, odor-proof cover — disappears completely into the floor
+ Frame and cover plate adjustable in height and 360° rotatable: precisely adaptable to floor and tile direction
- Single pump — for full redundancy, choose the dual-pump Saniquick UFT100
Pump sump for wastewater below sewer level:

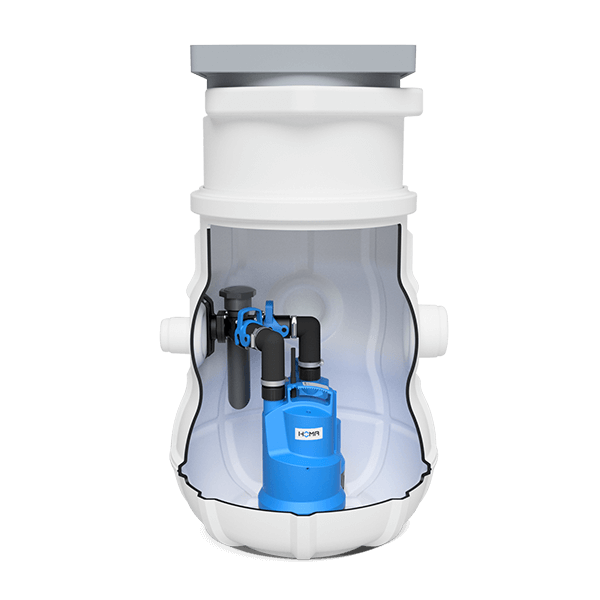

The HOMA Saniquick UF100 is an underground wastewater lifting station for basements, cellars, bathrooms, and garages. The polyethylene tank is built into the floor and collects wastewater from sinks, showers, washing machines, or basement drainage — the pump automatically discharges it to the sewer. The single pump switches itself on via the built-in float (WA or DA version); a control box is not needed.
When ordering, you directly choose the desired pump: from the compact C140 WA (7 m head) to the powerful TP28 versions (up to 25 m³/hour, available in 230V and 400V) or the fully stainless steel TCV408 WA. The CH versions are chemically resistant. The cover plate can be used as a drainage channel or tile frame and is adjusted precisely to floor level and tile direction after tiling. For placement in concrete against rising groundwater, a wall collar is available as an accessory. Do you only want the tank and install a pump yourself? Then choose the "Tank (without pumps)" version.
Scope of delivery:
Tank with compensation frame, tileable cover and installation fittings, plus the chosen pump with float and 10 m cable. ("Tank" version: without pump.)
Technical specifications:
| Head (Hmax): | 7.0 – 13.6 m (depending on pump choice) |
| Flow rate (Qmax): | 6.5 – 25.2 m³/hour |
| Power (P2): | 0.17 – 0.90 kW |
| Voltage: | 230V (WA) or 400V (DA, TP28 versions) — both with float |
| Tank capacity: | 66 liters |
| Inlets: | 3x Ø 110 mm |
| Pressure connection: | 1¼" int. |
| Material: | Polyethylene tank, PVC installation set |
Downloads:
Datasheet Saniquick UF100/UFT100 (PDF)
Manual Saniquick UF/UFT (PDF, DE/EN/NL)
Non-binding advice?
Are you unsure which pump suits your Saniquick UF100? Feel free to contact our customer service — we are happy to help you think it through.
