Item number: C102 W: 9805600H · C102 D: 9805602H
Pros and cons:
+ Floodable wastewater pumping station with integrated ball check valve
+ Vortex impeller with 40 mm free passage: suitable for wastewater containing faeces
+ Pneumatic level control with separate control box
+ Available in 230 V and 400 V
- Installation work for DN 80 pressure pipe required
Wastewater pumping station for the entire house:

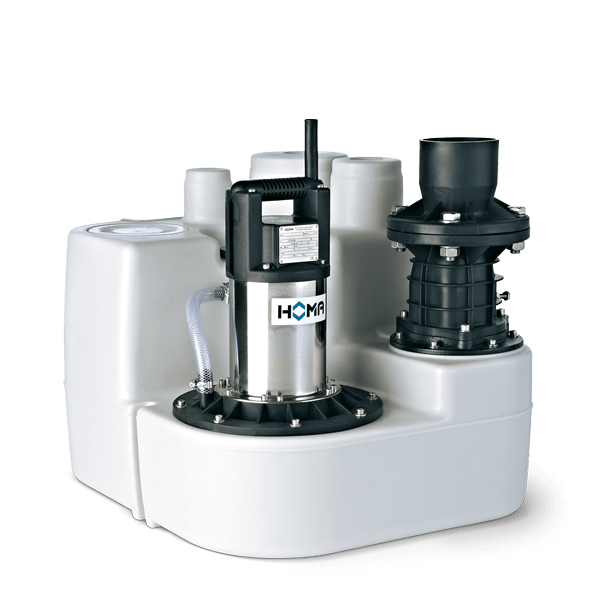

The HOMA Sanistar C102 and C106 are wastewater pumping stations for rooms below the backflow level — toilets, bathrooms, and kitchens in basements and cellars. All wastewater collects in the floodable plastic tank and is pumped into the sewer above the backflow level via a DN 80 pressure pipe. The integrated ball check valve prevents sewage from flowing back.
The C106 is the more powerful of the two: 12.5 meters delivery head and 34 m³/hour, compared to 9.5 meters and 28 m³/hour for the C102. Both have a cast iron vortex impeller, a stainless steel motor housing, and pneumatic level control — solid technology that you won't have to worry about for years.
Scope of delivery:
Tank with pump, check valve, elastic transition piece, connection set for pressure pipe, pneumatic level control, control box; pump cable 4 m, control box 0.8 m.
Technical specifications:
| Delivery head (Hmax): | C102: 9.5 m / C106: 12.5 m |
| Flow rate (Qmax): | C102: 28.0 m³/hour / C106: 34.0 m³/hour |
| Power (P2): | C102: 0.85 kW / C106: 1.20 kW |
| Voltage: | W: 230 V / 1 phase — D: 400 V / 3 phases |
| Free passage: | 40 mm (vortex impeller) |
| Discharge connection: | DN 80 |
| Inlets: | DN 40 / DN 100 / DN 150 |
| Item numbers: | 9805602H / 9805601H / 9805603H |
Downloads:
Datasheet and manual available upon request via our customer service.
Non-binding advice?
Are you unsure between the C102 and C106, or between single and dual pump versions? Feel free to contact our customer service — we are happy to advise you.
