Article numbers: 1BZEDP752, 1BZEDP762, 1BZEDP772 and 1BZEDP782
Pros and cons
+ Vortex impeller for heavily soiled wastewater and solids
+ Free passage of 40 or 50 mm, depending on the version
+ Robust cast iron construction and two mechanical shaft seals in oil chamber
+ Suitable for long-term use in sumps and small lifting stations
- Not intended for highly abrasive media such as sand or for long fibers

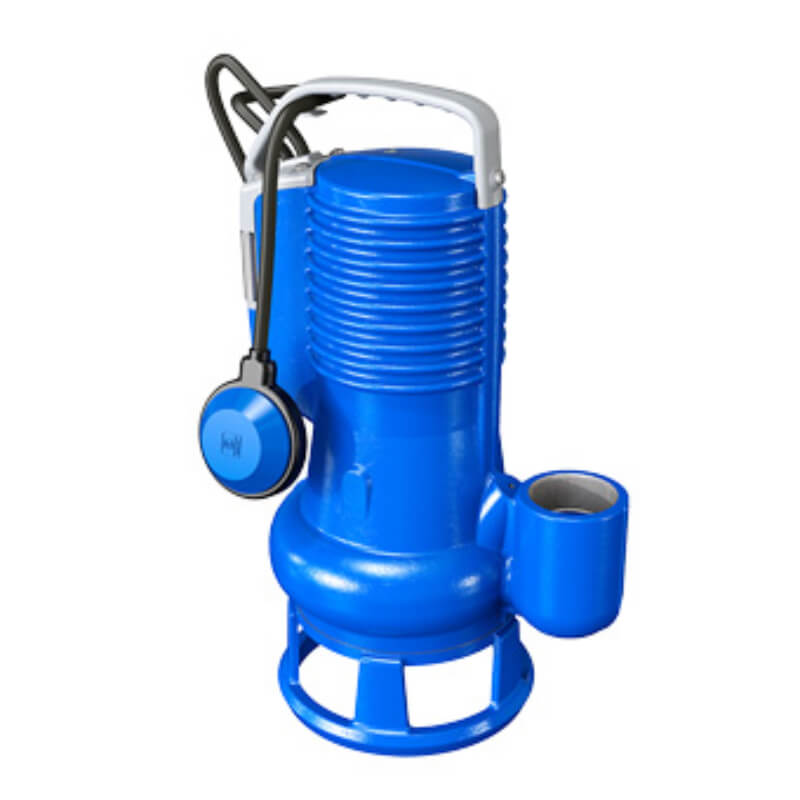

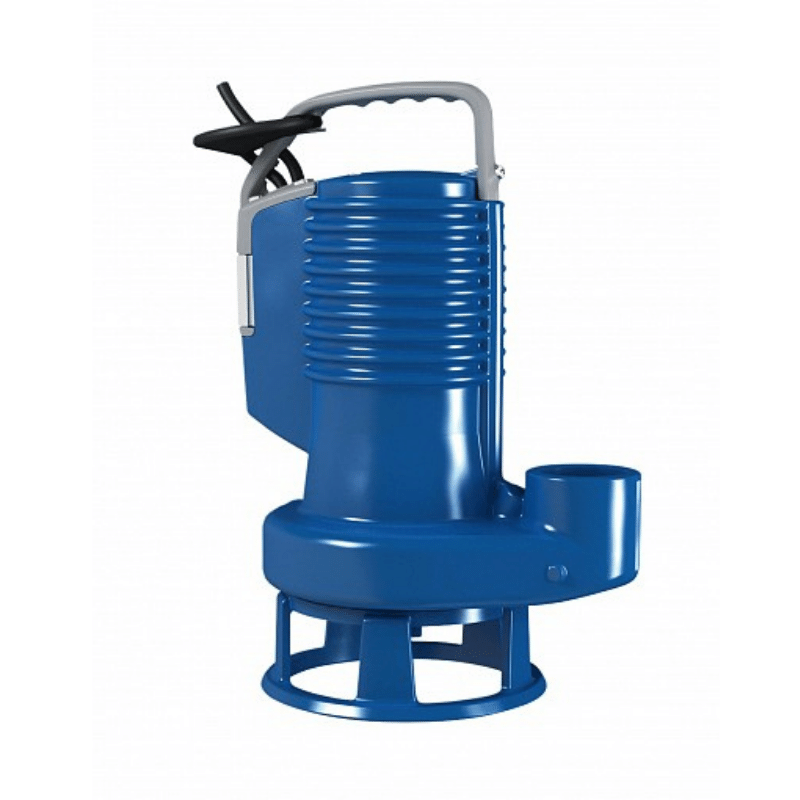

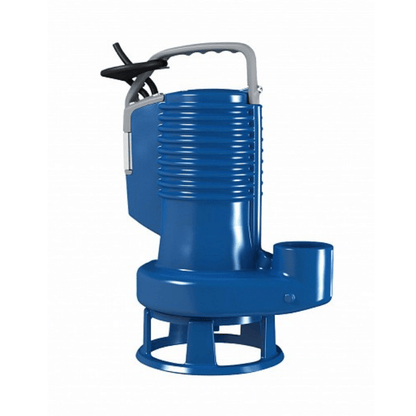

Robust dirty water submersible pump with vortex impeller
The Zenit DG BluePro has been developed for pumping heavily soiled wastewater with solids. The vortex impeller keeps the risk of clogging low and allows the water to flow freely through the pump. This series is therefore well suited for collection pits, wastewater pits and small lifting stations in homes and light utility.
The four versions differ in motor power, discharge connection and free passage. Do not only choose based on maximum power: the required capacity depends on the head, pipe diameter, pipe length and the number of bends.
Which version do you choose?
| Version | Power P2 | Discharge connection | Free passage | Article number |
| 50/2/G40V | 0.37 kW | G 1½″ | 40 mm | 1BZEDP752 |
| 75/2/G40V | 0.55 kW | G 1½″ | 40 mm | 1BZEDP762 |
| 100/2/G40V | 0.74 kW | G 1½″ | 40 mm | 1BZEDP772 |
| 150/2/G50V | 1.10 kW | G 2″ | 50 mm | 1BZEDP782 |
Technical characteristics
| Pump type | Dirty water submersible pump with vortex impeller |
| Pump casing and impeller | Cast iron |
| Protection class | IP68 |
| Maximum medium temperature | 40 °C |
| Maximum immersion depth | 20 meters |
| Shaft seal | Two mechanical silicon carbide seals in oil chamber |
| Voltage | Version dependent; check the desired connection before ordering |
Scope of delivery
Zenit DG BluePro submersible pump in the chosen version. Plug, float and electrical version are configuration dependent; check these with the variant or let us select the correct version.
Download
Declaration of Conformity Zenit blue/bluePRO (English)
Need help choosing?
Send us the desired capacity, vertical head, pipe length, pipe diameter and voltage. Via the contact form, we would be happy to calculate which version suits your installation.
