Article numbers: 1BZEDP810, 1BZEDP820 and 1BZEDP840
Pros and cons
+ Compact and light stainless steel dirty water submersible pump
+ Vortex impeller for dirty water and solids
+ Cooling jacket allows operation when the motor is partly above water
+ Free passage of 25 or 40 mm, depending on the version
- Not intended for highly abrasive media such as sand

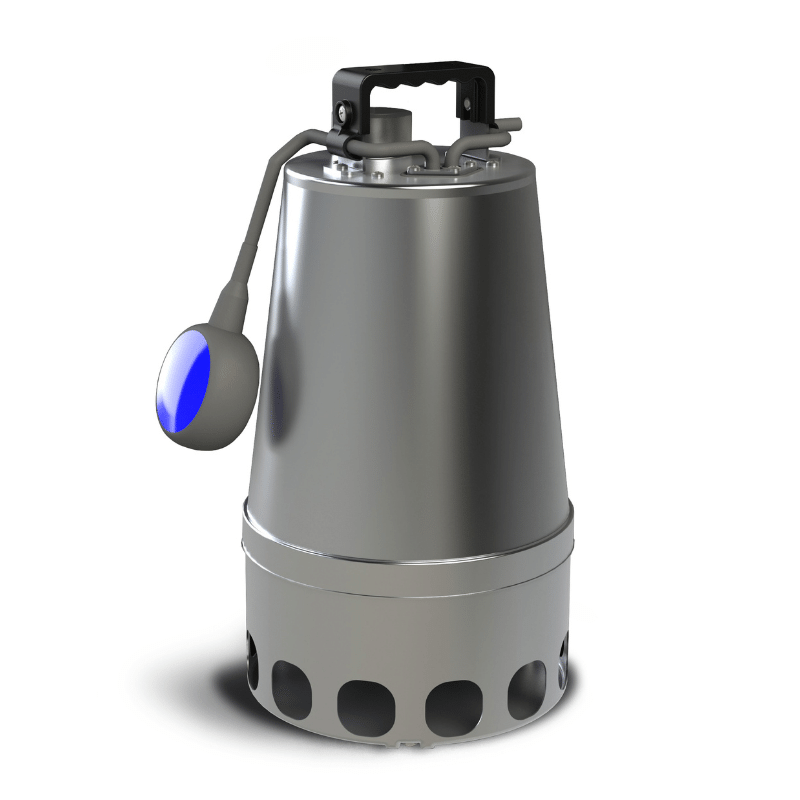

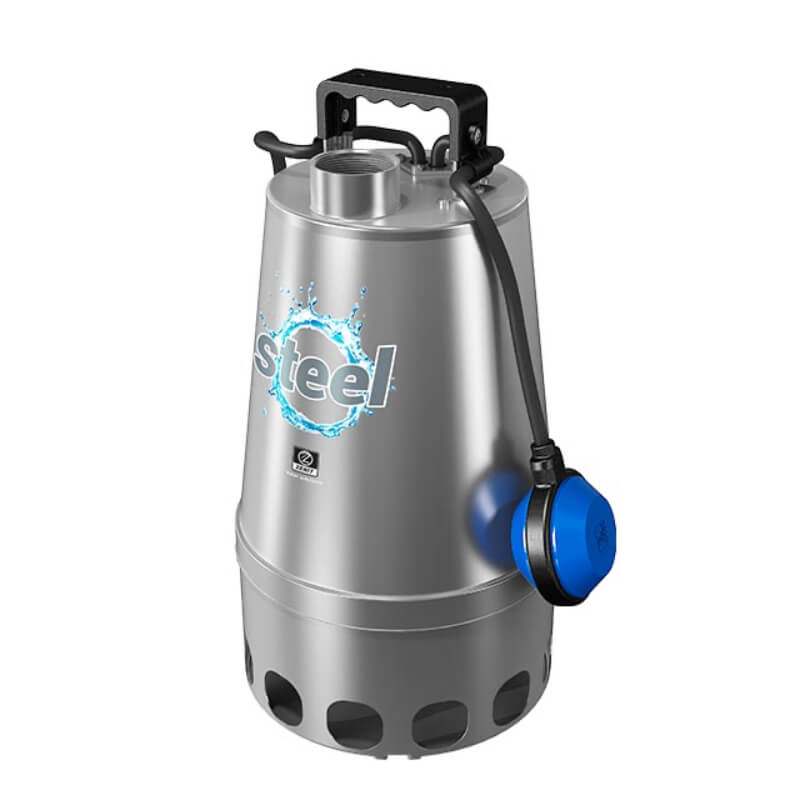

Compact stainless steel dirty water submersible pump with vortex impeller

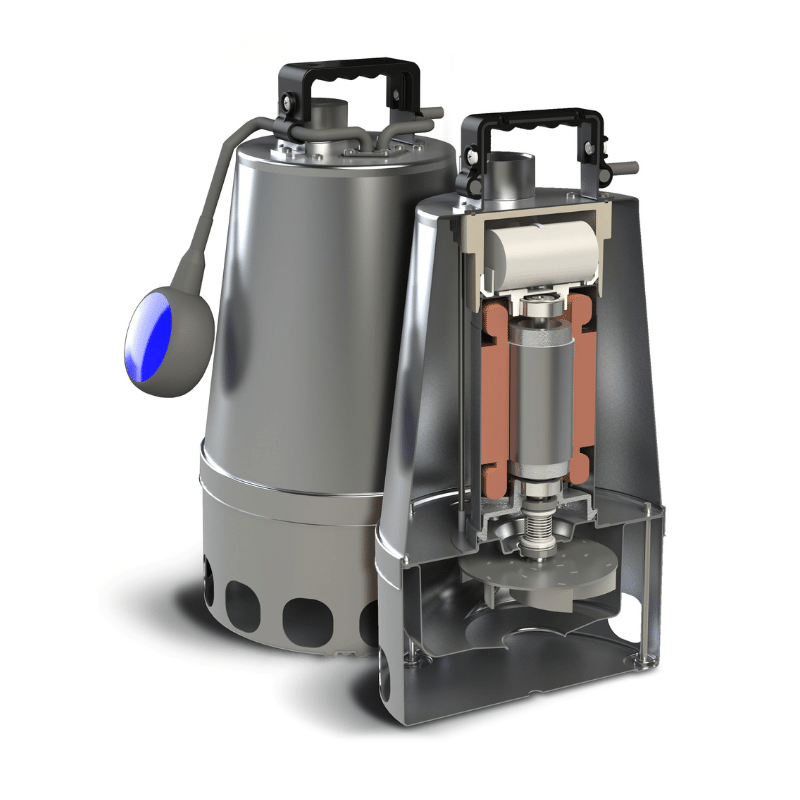

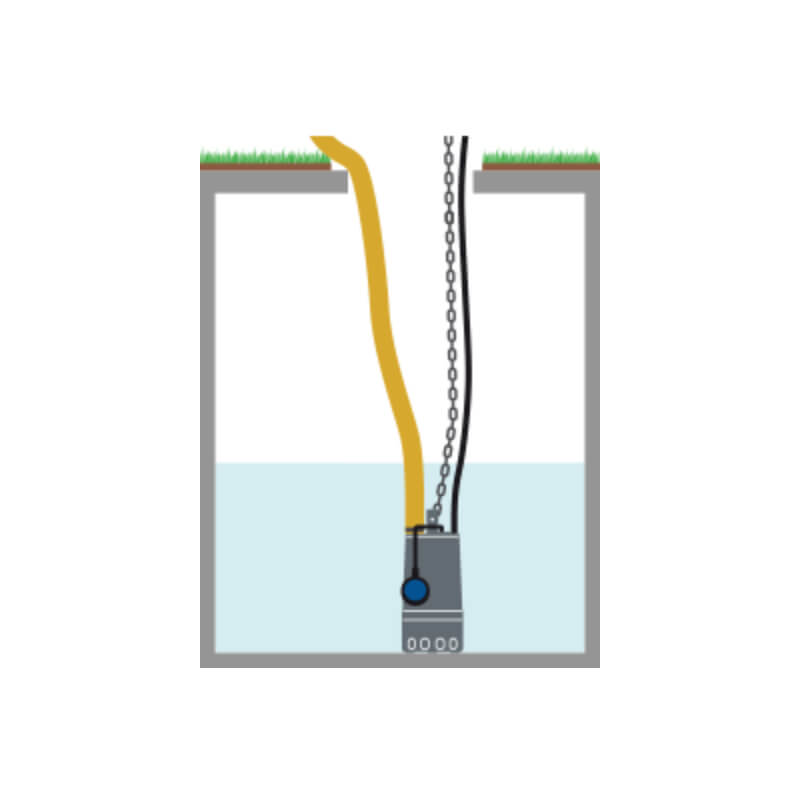

The Zenit DG Steel is a compact stainless steel submersible pump for dirty water in domestic and small civil installations. The vortex impeller processes solids without the water having to pass through the impeller narrowly. The pump is suitable for, among other things, cellar and drainage pits, reservoirs, wastewater pits and temporary use during flooding.
The integrated cooling jacket helps to keep the motor at temperature when the pump is only partially submerged. This makes the series practical in smaller pits and with fluctuating water levels.
Which version do you choose?
| Version | Power P2 | Discharge connection | Free passage | Article number |
| DG Steel 37/2 | 0.37 kW | G 1¼″ | 25 mm | 1BZEDP810 |
| DG Steel 55/2 | 0.55 kW | G 1½″ | 40 mm | 1BZEDP820 |
| DG Steel 75/2 | 0.75 kW | G 1½″ | 40 mm | 1BZEDP840 |
Technical characteristics
| Pump type | Dirty water submersible pump with vortex impeller |
| Pump housing and impeller | Stainless steel AISI 304 |
| Shaft | Stainless steel AISI 431 |
| Maximum medium temperature | 40 °C; maximum 90 °C for 3 minutes |
| Maximum immersion depth | 20 meters |
| Shaft seal | Mechanical SiC-Al seal in oil chamber with V-ring |
| Voltage | Version-dependent; check the desired connection before ordering |
Scope of delivery
Zenit DG Steel submersible pump in the chosen version with 10 meter cable. Plug, float and electrical version are configuration-dependent; check these with the variant or let us select the correct version.
Download
Product brochure Zenit DG Steel (English)
Need help choosing?
Send us the desired capacity, vertical head, pipe length, pipe diameter and available voltage. Via the contact form, we would be happy to help you calculate which version suits your application.
