Article number: 4 meters: JP00227 · 10 meters: JP09261
Pros and Cons:
+ Can be used in both fixed and mobile setups
+ Less sedimentation (and thus maintenance) due to integrated flushing device
+ Years of innovation incorporated into the submersible pump

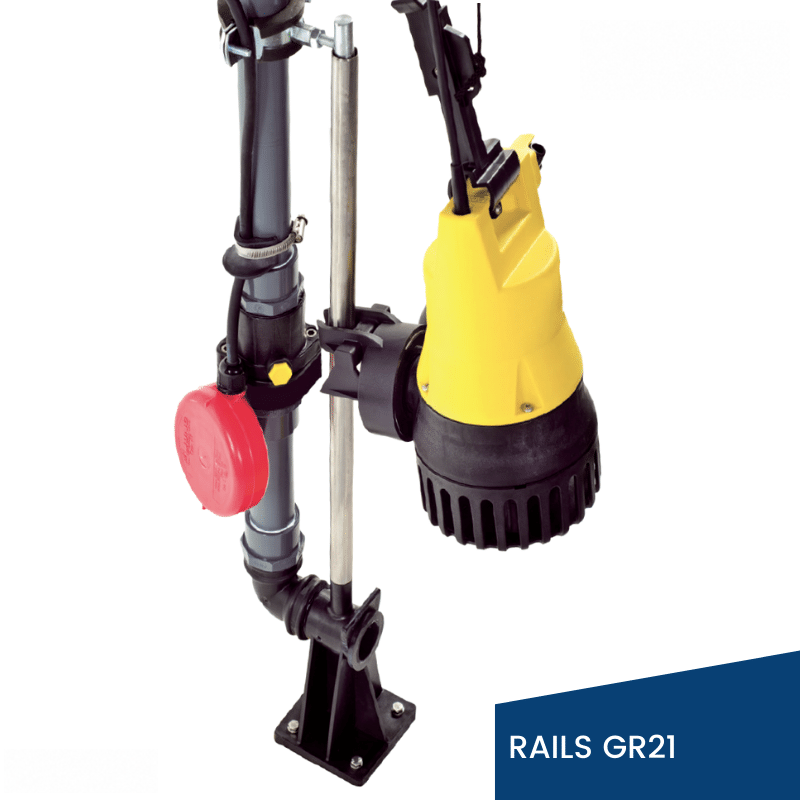

+ GR21 guide rail system allows for quick and easy maintenance (optional)
+ After running dry, the pump can be vented through a borehole in the pump housing
- The U5K(S) is not suitable for aggressive water: the U3K(S) SPECIAL is

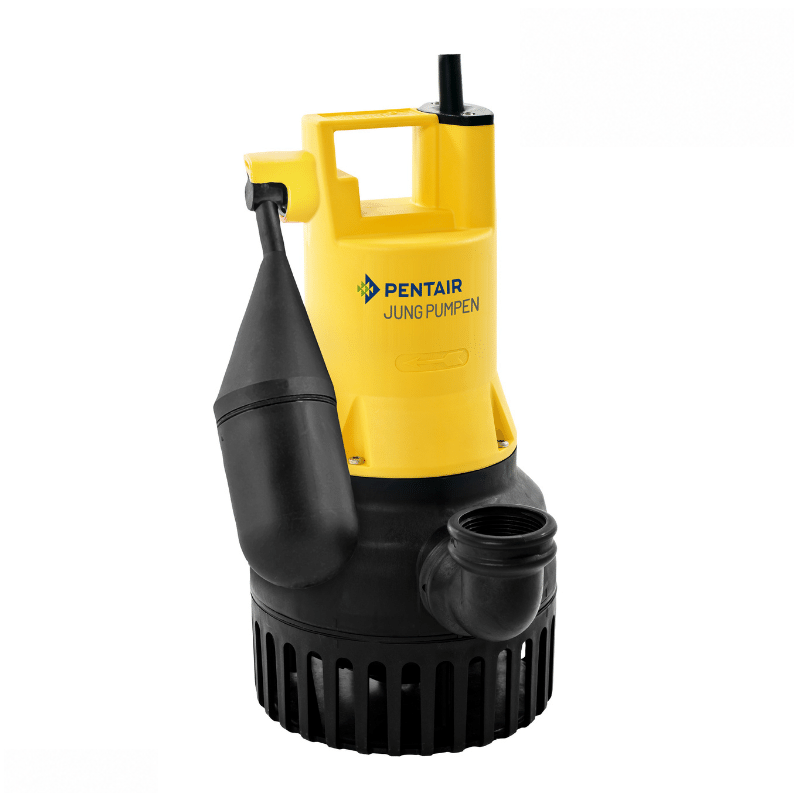

Powerful drainage submersible pump with cooling jacket:
The U6K(S) is a very powerful and versatile submersible pump for stationary and mobile use. This pump discharges domestic wastewater free of faecal matter up to a particle size of 10 mm. The removable basket allows the passage to be increased up to 20 mm. When the U5KS is permanently installed in a cellar shaft or reservoir, it discharges wastewater from domestic appliances and installations with water discharge, such as washing machines, dishwashers, sinks, etc., with integrated switching electronics. The flushing device ensures that deposits in reservoirs or shafts are kept to a minimum.
"This is a general-purpose pump, for both wastewater and groundwater. The ability to reduce the minimum pumped water level increases the range of applications." ATM Test Magazine
For use in narrow containers or at low switching heights, special floats are used. This video shows how the installation or replacement of a float can be done quickly and easily. It also demonstrates how the free passage in a U5K and U6K submersible pump can be increased from 10 to 20 mm.
Our knowledge base contains useful tips for adapting your U-series submersible pump, which may help the submersible pump better meet your needs.
Scope of delivery:
Pump according to EN 12050 with 90° discharge elbow, 11⁄4” internal thread, cable and Schuko plug, non-return valve for mobile use, S version with built-in level control. The pump is supplied with a mounted screen, which can be replaced with the supplied feet if a free passage of 20 mm is required.

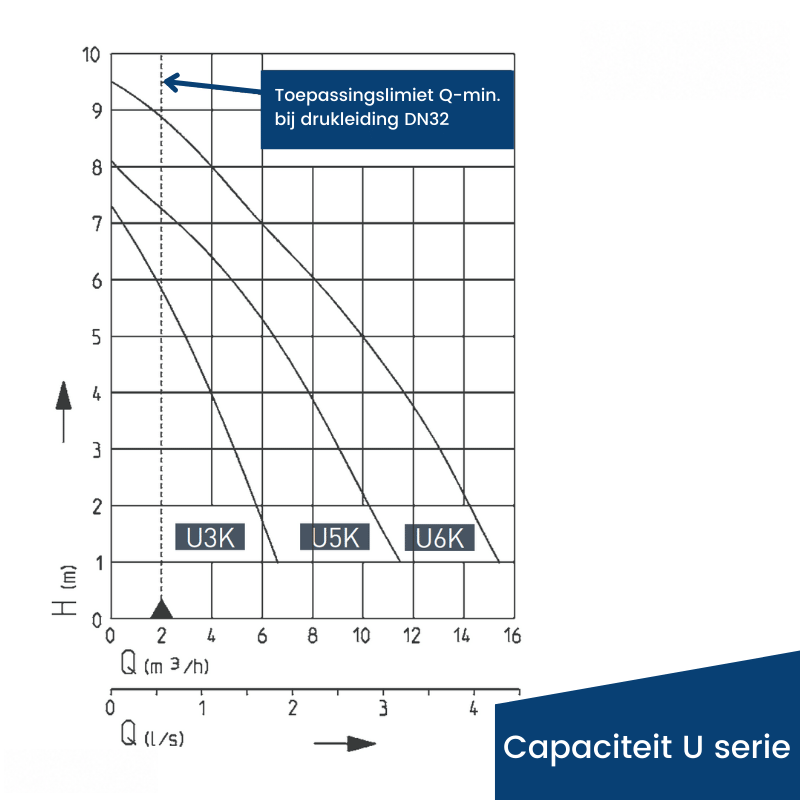

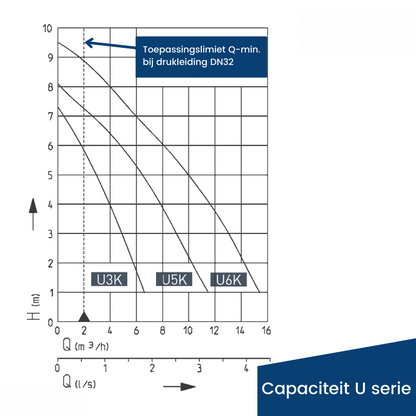

Technical specifications:
| Head: | 9.5 meters |
| Flow rate: | 15,500 l/hour |
| Power: | 520 Watt |
| Voltage: | 230 Volt |
| Impeller | Vortex, GRP |
| Power cable: | 4m/10m H07RN-F, Schuko plug |
| Free passage: | 20mm |
Downloads:
1. Product sheet U6K (S)
2. U-series User Manual
3. U-series Promo Sheet
Dompelpomp.shop installation service:
Would you prefer to have this pump installed by an expert in your home or property? You can! We work with certified installers who have been trained by our suppliers to install our lifting stations, submersible pumps and pump sumps. Feel free to contact our customer service for a suitable offer or read more about our installation service here.
Obligation-free advice?
Do you have questions about this pump, how to apply it, and whether it is suitable for your situation? Please feel free to contact our customer service and we will do our best to help you.
