Article number: 4 meters: JP09387 · 10 meters: JP09417
Pros and Cons:
+ Can be used in both fixed and mobile setups

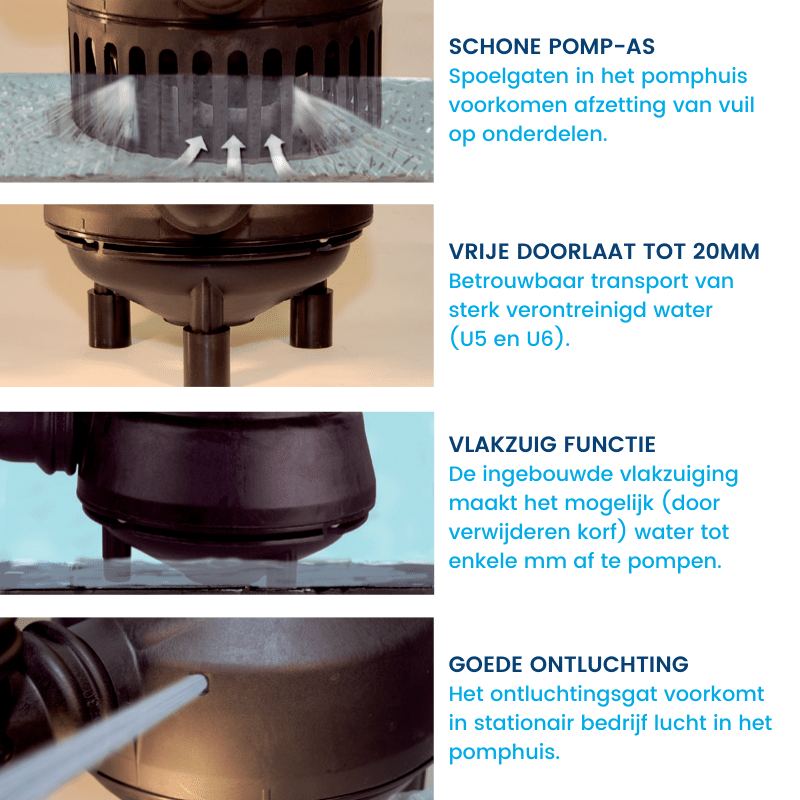

+ Less sedimentation (and thus maintenance) due to integrated flushing device
+ Years of innovation have gone into the submersible pump

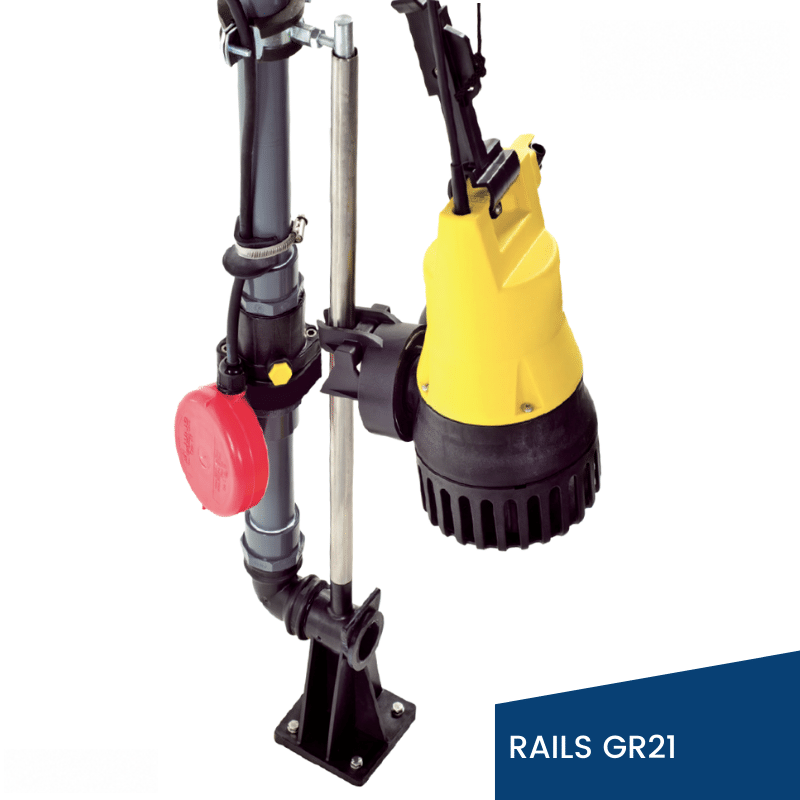

+ GR21 guide rail system allows for quick and easy maintenance (optional)
+ After dry running, the pump can be vented through a bore in the pump housing
- The U5K(S) is not suitable for aggressive water: the U3K(S) SPECIAL is
- Possibly insufficient capacity: view the U6KS here

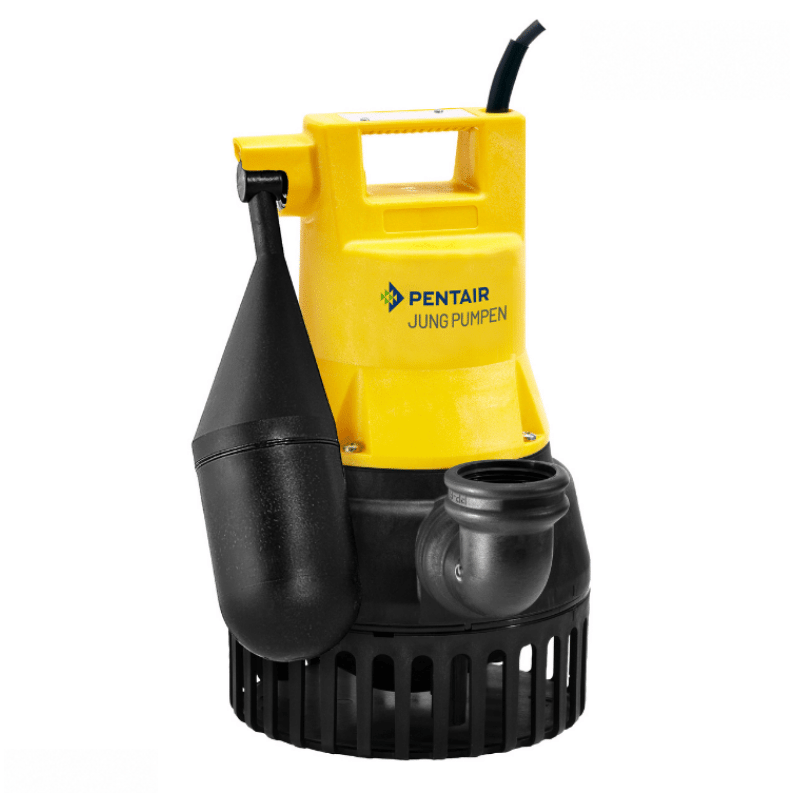

Drainage submersible pump with cooling jacket:
The U5K(S) is a very powerful and versatile submersible pump for stationary and mobile use. This pump discharges sewage-free wastewater with a particle size of up to 10 mm. With the removable basket, the passage can be increased to 20 mm. If the U5KS is installed stationary in a cellar shaft or reservoir, it discharges wastewater from household appliances and installations with a water outlet such as washing machines, dishwashers, sinks, etc., using integrated control electronics. The flushing device ensures that deposits in reservoirs or shafts are kept to a minimum.
"This is a general-purpose pump for both wastewater and groundwater. The ability to reduce the minimum pump-down water level increases its range of applications." ATM Testmagazine
For use in narrow containers or with low switching heights, special floats are used. This video shows how the installation or replacement of a float can be carried out quickly and easily. It also demonstrates how the free passage of a U5K and U6K submersible pump can be increased from 10 to 20 mm.
The pump is available as a plug-and-play FLUT-SET. With this set, you always have a submersible pump ready in case of flooding, for example. View the FLUT-SET here.
Our knowledge base contains useful tips for customizing your U-series submersible pump, which may make the submersible pump even better suited to your needs.
Scope of delivery:
Pump according to EN 12050 with 90° discharge elbow, 11⁄4” internal thread, cable and Schuko plug, non-return valve for mobile use, S version with mounted level control. The pump is supplied with a mounted strainer, which can be exchanged with the included legs if a free passage of 20 mm is required.

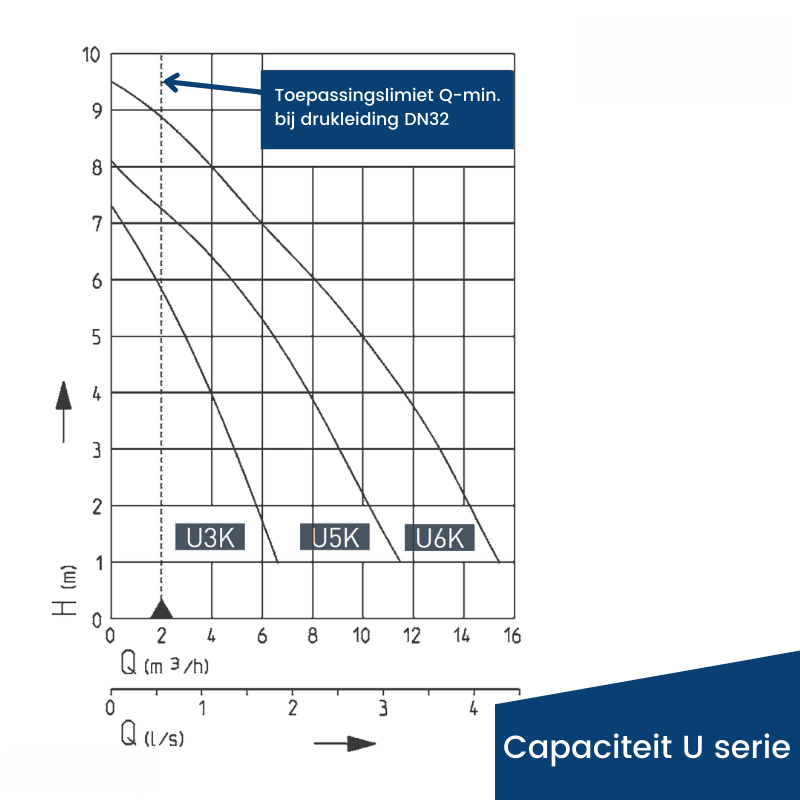

Technical specifications:
| Delivery head: | 8.1 meters |
| Flow rate: | 11,500 l/hour |
| Power: | 520 Watt |
| Voltage: | 230 Volt |
| Impeller | Vortex, GRP |
| Power cable: | 4m/10m H07RN-F, Schuko plug |
| Free passage: | 20mm |
Downloads:
1. Product sheet U5K (S)
2. User Manual U-series
3. Promo sheet U-series
Dompelpomp.shop installation service:
Would you prefer to have this pump installed by an expert in your home or property? You can! We work with certified installers who have been trained by our suppliers to install our lifting stations, submersible pumps, and pump sumps. Feel free to contact our customer service for a suitable offer or read more about our installation service here.
No-obligation advice?
Do you have questions about this pump, how to apply it, and whether it is suitable for your situation? Please feel free to contact our customer service and we will do our best to help you.
