Article number: 4 meters: JP00206 · 10 meters: JP09808
Pros and cons:
+ Can be used for both fixed and mobile setups
+ Less residue (and thus less maintenance) due to integrated flushing device
+ Years of innovation incorporated into the submersible pump

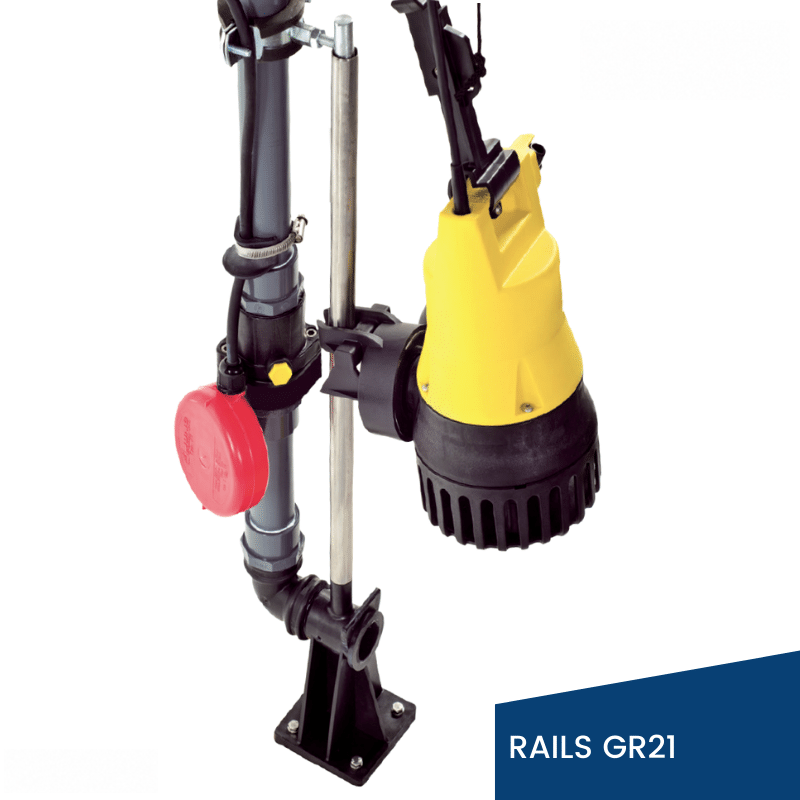

+ Guide rail system GR21 enables quick and easy maintenance (option)
+ After running dry, the pump can be vented through drilling in the pump housing
+ Check valve prevents pipe from emptying
- The U3K(S) is not suitable for aggressive water: the U3K(S) SPECIAL is

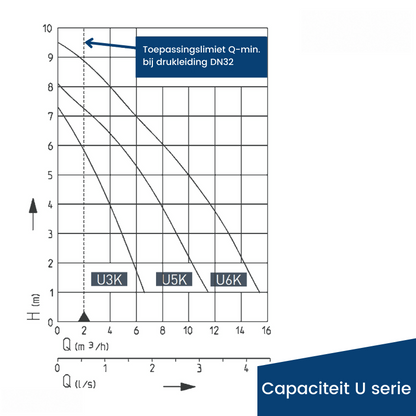

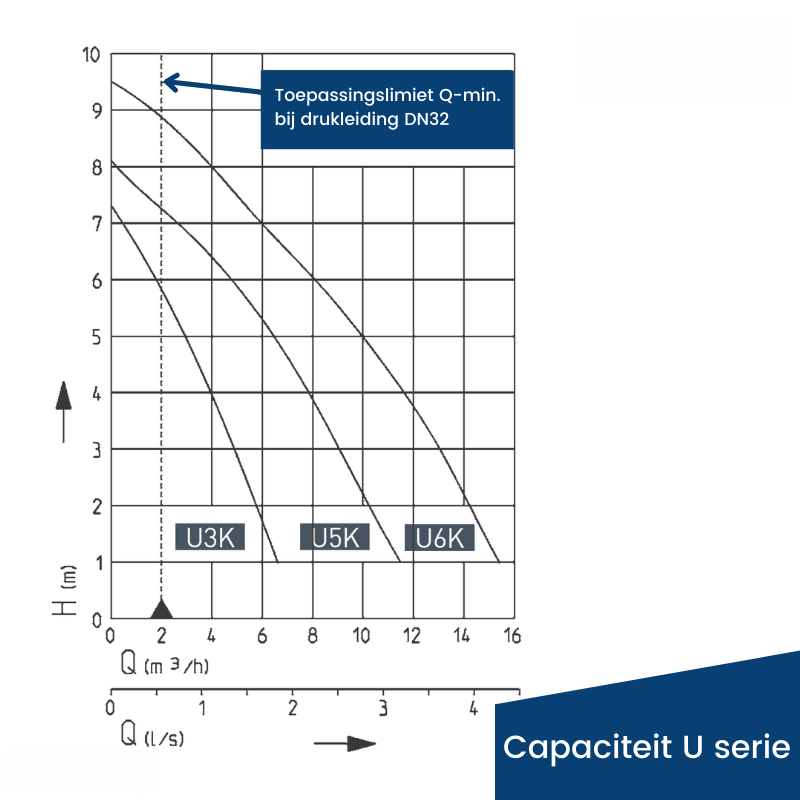

- Possibly insufficient capacity: view its bigger brothers here
Drainage submersible pump with cooling jacket:

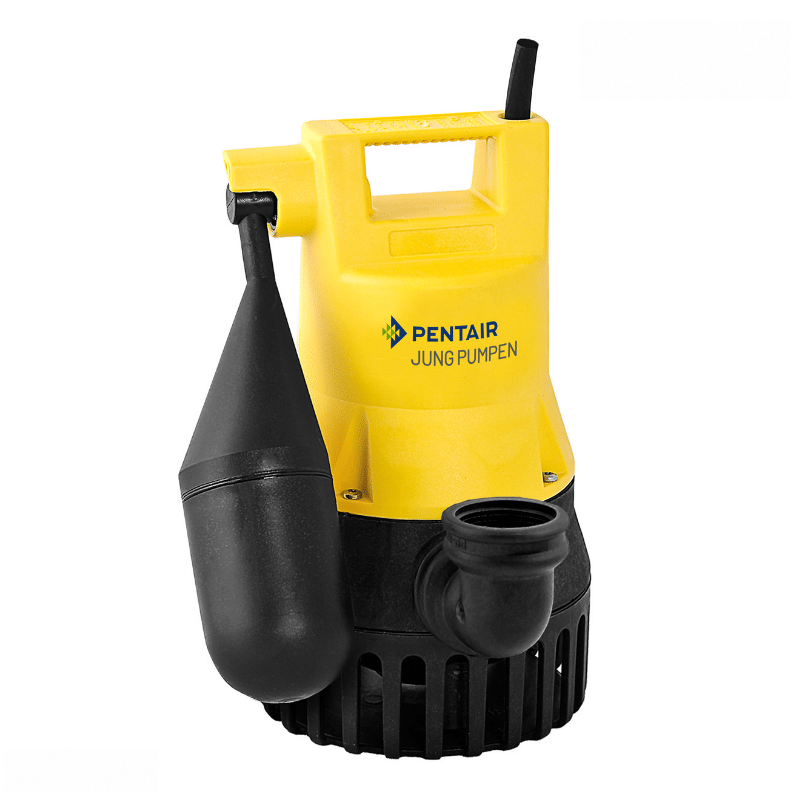

The U3K(S) is an exceptionally versatile submersible pump for fixed installation and mobile use. EIP technology for increased operational safety, an integrated flushing device to reduce deposits, and the built-in flat suction for pumping down to very low water levels are just a few of the innovative advantages of this pump.
The pump discharges rainwater, lightly contaminated water, and domestic wastewater, including from domestic dishwashers and washing machines (boil wash).
Our knowledge base contains useful tips for customizing your U-series submersible pump, which may make the submersible pump even better suited to your needs.
Scope of delivery:

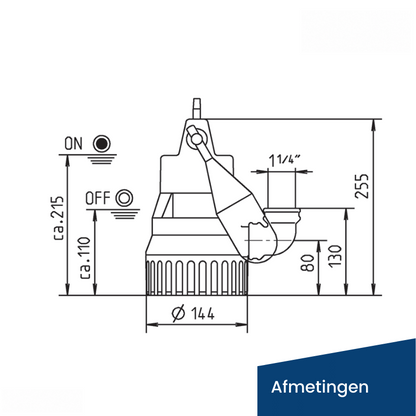

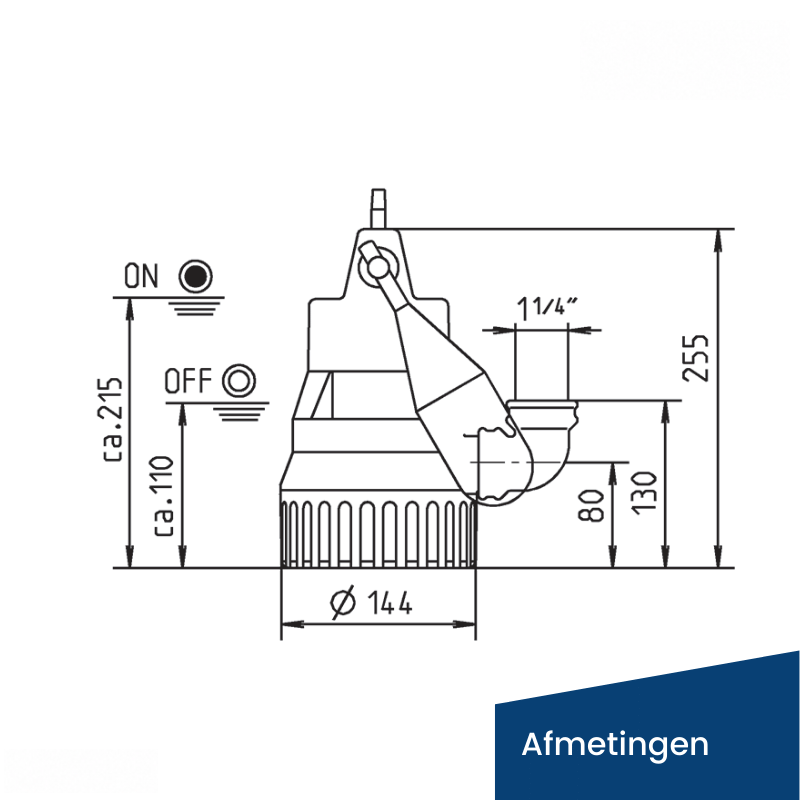

Pump according to EN 12050 with 90-degree discharge elbow, 1 1/4” internal thread, cable and Schuko plug, check valve for mobile use, with built-in level control (mechanical float switch).
Technical specifications:
| Head: | 7.1 meters |
| Flow rate: | 6250 l/hour |
| Power: | 320 Watt |
| Voltage: | 230 Volt |
| Impeller | Vortex, GRP |
| Weight: | 31 kg |
| Power cable: | 4m/10m H07RN-F, Schuko plug |
| Free passage: | 10mm |
Downloads:
1. Product sheet U3K (S)
2. User manual U-series
3. Promo sheet U-series
Dompelpomp.shop installation service:
Would you prefer to have this pump installed by an expert in your home or property? You can! We work with certified installers who have been trained by our suppliers to install our lifting stations, submersible pumps, and pump sumps. Feel free to contact our customer service for a suitable offer or read more about our installation service here.
Non-binding advice?
Do you have questions about this pump, how to apply it, or whether it is suitable for your situation? Please feel free to contact our customer service and we will do our best to assist you.
