Article number: JP09479
Pros and cons:
+ Plug-and-play emergency set
+ Includes powerful submersible pump
+ Continuous use possible due to jacket cooling
+ Quick and easy hose connection with included C-Storz couplings
+ Float can be locked by float fixing ring to prevent automatic shut-off
+ Wall mounting possible for storage
- The U5K(S) is not suitable for abrasive particles: view here our other sets
Must-have submersible pump set for home and business:

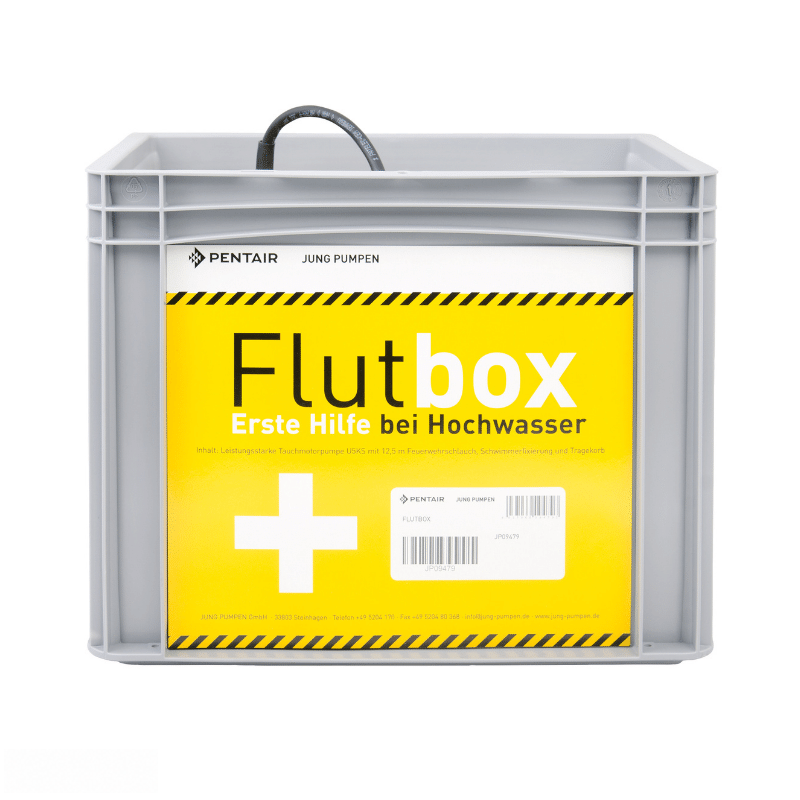

This FLUT-BOX is a complete submersible pump set for emergencies. By placing the pump with the carrying basket on the floor in the flooded area, then connecting the fire hose and electricity, the water is quickly pumped away via the 12.5-meter long water hose (delivery head of 8.1 meters and a flow rate of up to 11,500 liters per hour).
By locking the float with the supplied ring, the pump can pump water down to a residual water level of 35 mm. The suction strainer of the innovative submersible pump can be removed, allowing pumping down to a residual water level of 6mm.

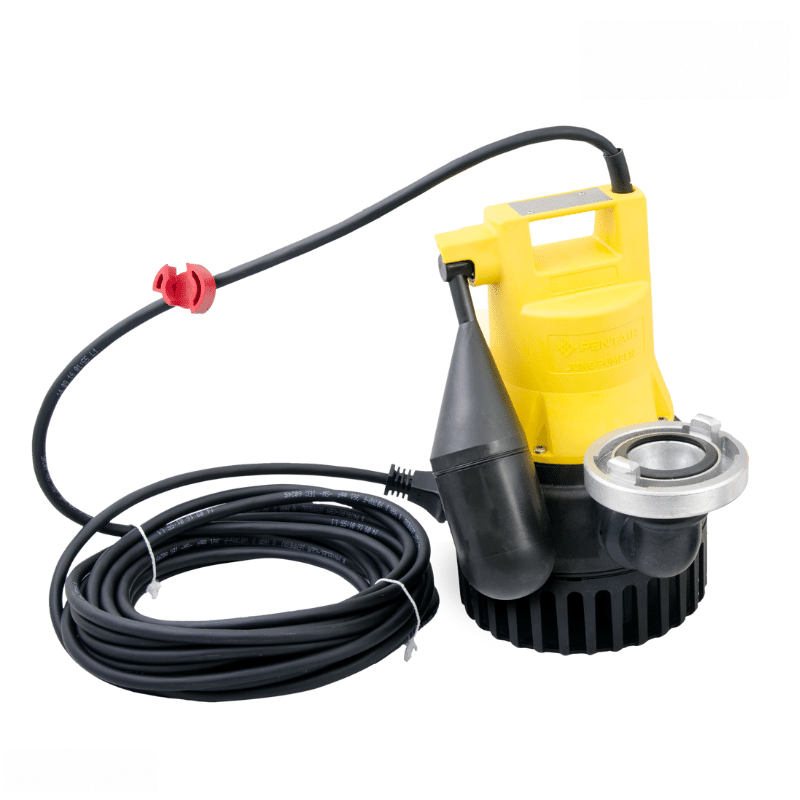

Without the transport box, the U5K(s) is a very powerful and versatile submersible pump for stationary and mobile use. This pump discharges faeces-free wastewater with a grain size of up to 10 mm. By removing the basket, the passage can be increased to 20 mm. If the U5KS is installed stationary in a cellar shaft or reservoir, it discharges wastewater from household appliances and setups with a water drain such as washing machines, dishwashers, sinks, etc., using integrated switching electronics. The flushing device ensures that deposits in reservoirs or shafts are kept to a minimum.
"This is a general-purpose pump, for both wastewater and groundwater. The ability to lower the minimum pumpable water level increases its application possibilities." ATM Testmagazine
Special floats are used for use in narrow containers or at low switching heights. This video shows how to quickly and easily install or replace a float. It also demonstrates how the free passage in a U5K and U6K submersible pump can be increased from 10 to 20 mm.
Our knowledge base contains useful tips for adapting your U-series submersible pump, which may make the submersible pump even better suited to your needs.
Scope of delivery:
1 Submersible pump U5KS, 1 fire hose 12.5 m with C-Storz coupling (C52), 1 transport box with integrated pump bracket for pump fixation, 1 ring for float locking.
Technical specifications:
| Head: | 8.1 meters |
| Flow rate: | 11,500 l/hour |
| Power: | 520 Watt |
| Voltage: | 230 Volt |
| Impeller | Vortex, GRP |
| Power cable: | 4m/10m H07RN-F, Schuko plug |
| Free passage: | 20mm |
Downloads:
1. Product sheet U5K (S)
2. User manual U-series
3. Promo sheet U-series
4. Product sheet FLUT-BOX
5. Promo sheet FLUT-BOX
