Pros and Cons:
+ Vortex impeller with 50-65 mm free passage: virtually clog-free
+ Up to 59 m³/hour and 21 m head
+ Cast iron housing and impeller, stainless steel outer casing
+ All versions also available in explosion-proof (ATEX)
- Slightly lower efficiency than the TP50M with channel impeller
Clog-free wastewater pump with vortex impeller:

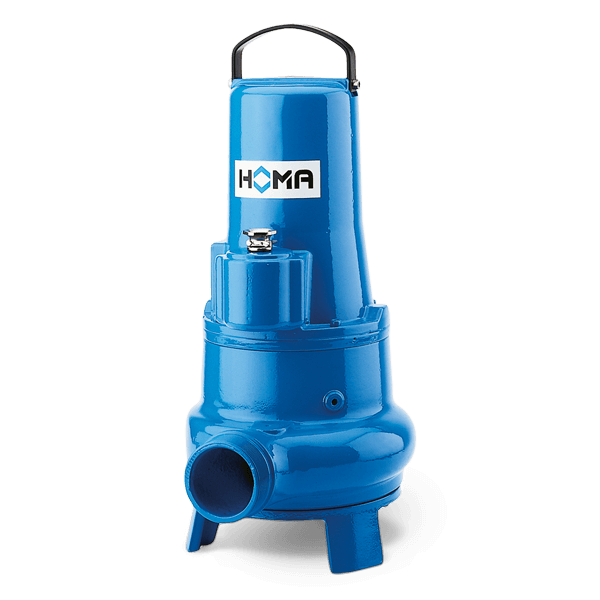

The HOMA TP50V is the vortex version of the TP50 series: a cast iron dirty and wastewater pump where the impeller rotates freely above the flow opening. Fibres, wipes, and coarse solids up to 65 mm pass through without touching the impeller — in practice, this is the recipe against failures in pumping stations where things sometimes pass through that shouldn't.
Choose the TP50V over the TP50M when operational reliability outweighs the last bit of efficiency: for contaminated wastewater with many fibres, a vortex impeller is the trouble-free choice. The .../4 versions (1450 rpm) run quieter and wear slower in continuous operation; the .../2 versions deliver the highest pressure. For sewage pumping stations and explosive environments, all variants are available ATEX-certified. All models have a thermistor in the winding.
Scope of delivery:
10 m cable and loose cable end; A-versions with control box and automatic float switch.
Technical specifications HOMA TP50V:
| Head (Hmax): | 7.5 - 21.0 m (per version) |
| Flow rate (Qmax): | 42.0 - 59.0 m³/hour (per version) |
| Power (P2): | 1.0 - 4.4 kW |
| Voltage: | W: 230 V / 1 phase — D: 400 V / 3 phases |
| Free passage: | 50 - 65 mm |
| Impeller: | vortex |
| Discharge connection: | 2½" ext. |
| Max. medium temperature: | 40 °C (short-term 60 °C) |
| Explosion-proof: | EX versions available according to ATEX |
Downloads:
1. Datasheet HOMA TP50V (DE)
2. Manual TP50 (ENG / DE)
3. Supplementary ATEX instructions (NL / ENG / DE / FR / PL)
Obligation-free advice?
Are you unsure whether to choose between the TP50M and TP50V for your pumping station? Feel free to contact our customer service without any obligation — we'll gladly calculate with you.
