Pros and cons:
+ Heavy-duty series of dirty water and wastewater pumps: up to 72.9 m³/hour and 31.6 m head
+ Closed single-channel impeller with 50 mm free passage
+ Wide range: normal, high-pressure (HD), medium-pressure (MD) and star-delta versions
+ Each version also available as explosion-proof (ATEX)
- Considerable weight (29-60 kg)
Wastewater pump for pumping stations and heavy-duty pump sumps:

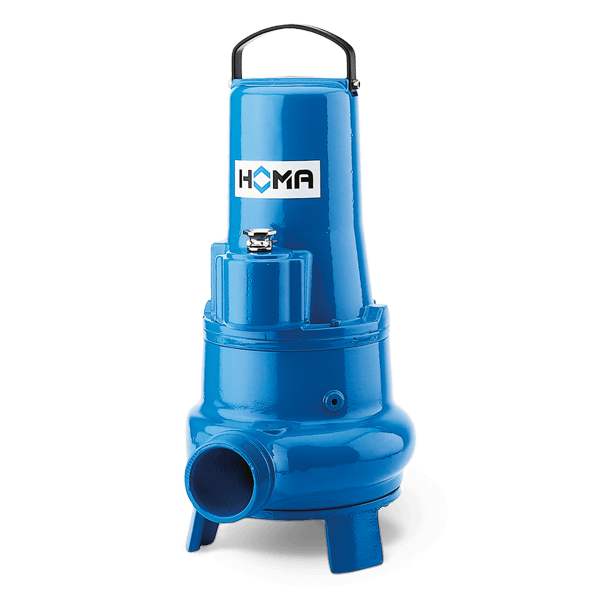

The HOMA TP50M is a cast iron dirty water and wastewater pump with a closed single-channel impeller and 50 mm free passage. This is the series for serious work: sewage pumping stations, pump sumps of companies and institutions, and wastewater transport where large volumes with solids pass through day in and day out. The range extends from the compact 14/2 to the 50/2 with star-delta starting for the highest capacities.
In practice, you choose based on the duty point: the .../2 versions (2900 rpm) for pressure and capacity, the .../4 versions (1450 rpm) for quieter and less wear in continuous operation. The HD version achieves 30 m head, the MD is just below that with 26.5 m but delivers more volume. For sewage pumping stations and other environments with explosion hazard, every variant is available ATEX-certified. All models have a clixon in the winding.
Scope of supply:
10 m cable and loose cable end; A-versions with control box and automatic float switch.
Technical specifications HOMA TP50M:
| Head (Hmax): | 9.0 - 31.6 m (per version) |
| Flow (Qmax): | 28.8 - 72.9 m³/hour (per version) |
| Power (P2): | 1.0 - 4.4 kW |
| Voltage: | W: 230 V / 1 phase — D: 400 V / 3 phases |
| Free passage: | 50 mm |
| Impeller: | closed single-channel |
| Discharge connection: | 2½" ext. |
| Max. medium temperature: | 40 °C (briefly 60 °C) |
| Explosion-proof: | EX versions available according to ATEX |
Downloads:
1. Datasheet HOMA TP50M (DE)
2. Manual TP50 (ENG / DE)
3. Additional instructions ATEX (NL / ENG / DE / FR / PL)
