Pros and Cons:
+ Free passage 30 mm (M) to 42 mm (V): processes wastewater with coarse solids
+ Up to 42 m³/hour and 19 m delivery head
+ Cast iron motor housing and impeller, V-version with stainless steel outer casing
+ All versions also available in explosion-proof (ATEX)
- Heavy weight (27-37 kg)
Wastewater pump for solids up to 42 mm:

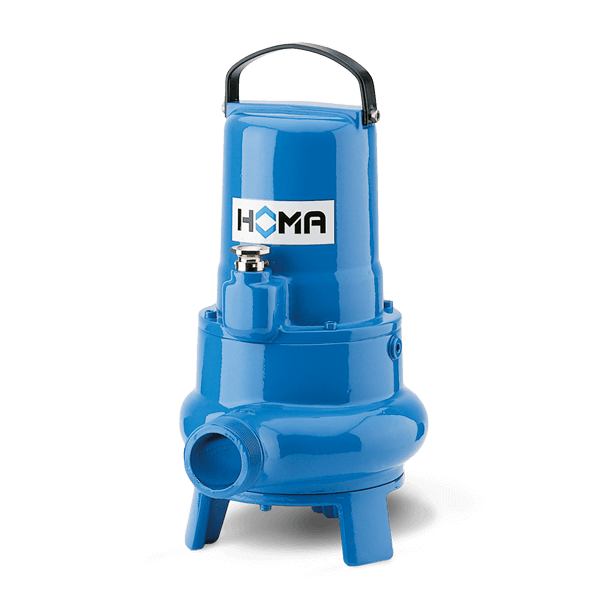

The HOMA TP30 is a cast iron wastewater pump for water containing solids. This series is the larger sibling of the TP28: more flow (up to 42 m³/hour), more delivery head (up to 19 m), and in the vortex version, a passage up to 42 mm. This makes it the pump for serious sumps at businesses, homeowners' associations (VvE's), and municipal facilities where wastewater with coarser components needs to be reliably discharged.
Choose the M-version (open single-channel impeller) for maximum flow and delivery head; the V-version (vortex impeller) for fibrous and tangled dirt that would clog a channel impeller. If you work in an environment with explosion hazards — sewage pumping stations, industry — every version is also available as a certified EX-variant. All models have a clixon (thermal protection) in the winding.
Scope of delivery:
10 m cable and loose cable end; A-versions with control box and automatic float switch; on/off switch and STORZ coupling.
Technical specifications HOMA TP30:
| Delivery head (Hmax): | M: 15.8 - 19.0 m / V: 6.4 - 13.0 m |
| Flow rate (Qmax): | M: 34.6 - 42.1 m³/hour / V: 31.0 - 38.0 m³/hour |
| Power (P2): | 0.70 - 1.20 kW |
| Voltage: | W: 230 V / 1 phase — D: 400 V / 3 phases |
| Free passage: | M: 30 mm / V: 30 - 42 mm |
| Impeller: | M: open single-channel / V: vortex |
| Discharge connection: | 2" ext. |
| Max. medium temperature: | 40 °C (short-term 60 °C) |
| Explosion-proof: | EX-versions available according to ATEX |
Downloads:
1. Datasheet HOMA TP30 (DE)
2. Manual TP28 / TP30 (NL / ENG / DE)
3. Additional ATEX instructions (NL / ENG / DE / FR / PL)
Non-binding advice?
Are you unsure between the M- and V-impeller, or do you need an ATEX version for your pumping station? Feel free to contact our customer service – we are happy to help you think through your options.
