Pros and Cons:
+ Large free passage of 28 mm: pumps wastewater with fibers and soft solids
+ Choice of single-channel impeller (M, high flow rate) or vortex impeller (V, clog-free)
+ Cast iron pump housing, motor housing, and impeller — built for daily use
+ Available in 230 V and 400 V, with float or loose cable end
- Significant weight (13-22 kg)
Wastewater pump with large passage:

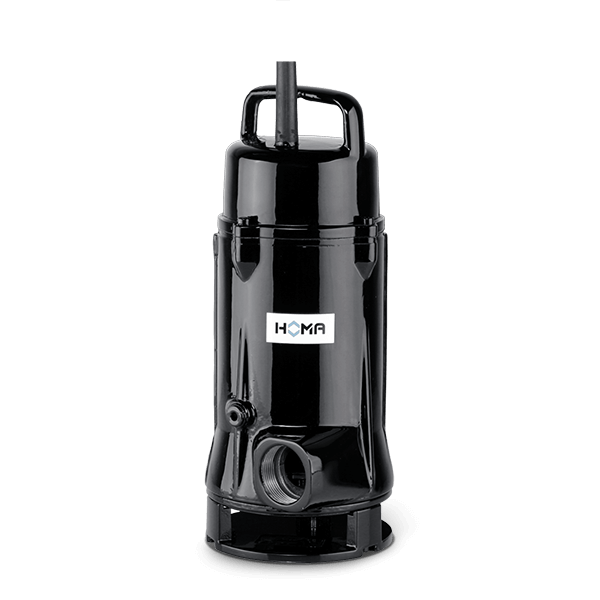

The HOMA TP28 is a cast iron wastewater pump with a free passage of 28 mm. Where a regular drainage pump stops at 10 mm, the TP28 also handles water with larger soft solids, wipes, and fibers — precisely the type of wastewater found in pump sumps of homes, businesses, and public facilities.
The choice between M and V is simple in practice: the M-version with an open single-channel impeller achieves the highest head (13.6 m), while the V-version with a vortex impeller is virtually impervious to clogging with fibrous water. The motor is oil-filled and pressure-waterproof (IP68, insulation class H) with a thermal sensor in the winding; the connection compartment is separate from the motor. The entry-level models TP28V W/WA come with a plug, the other versions with a control box or loose cable end for fixed installation.
Scope of delivery:
10 m cable and control box; A-versions with automatic float switch on the pump cover; DL-versions without control box with loose cable end; TP28V W(A) without control box, with plug.
Technical specifications HOMA TP28:
| Head (Hmax): | M: 13.6 m / V: 10.0 m |
| Flow rate (Qmax): | M: 22.0 m³/hour / V: 25.2 m³/hour |
| Power (P2): | M: 0.70 kW / V: 0.90 kW |
| Voltage: | W: 230 V / 1 phase — D: 400 V / 3 phases |
| Free passage: | 28 mm |
| Impeller: | M: open single-channel / V: vortex |
| Discharge connection: | 1½" int. |
| Max. medium temperature: | 40 °C (short-term 60 °C) |
| Article numbers: | see versions (SKU per variant) |
Downloads:
1. Datasheet HOMA TP28 (ENG)
2. Manual TP28 / TP30 (NL / ENG / DE)
Obligation-free advice?
Are you unsure between the M and V impeller, or between the TP28 and TP30? Feel free to contact our customer service — we are happy to help you think it through.
