Pros and Cons:
+ Entire pump housing and impeller made of stainless steel — corrosion-resistant and durable
+ Vortex impeller with 35 - 50 mm free passage: clog-resistant with fibers and textiles
+ Compact and light (from 7.7 kg) — easy to transport or permanently install
- Maximum medium temperature 35 °C (briefly 60 °C)

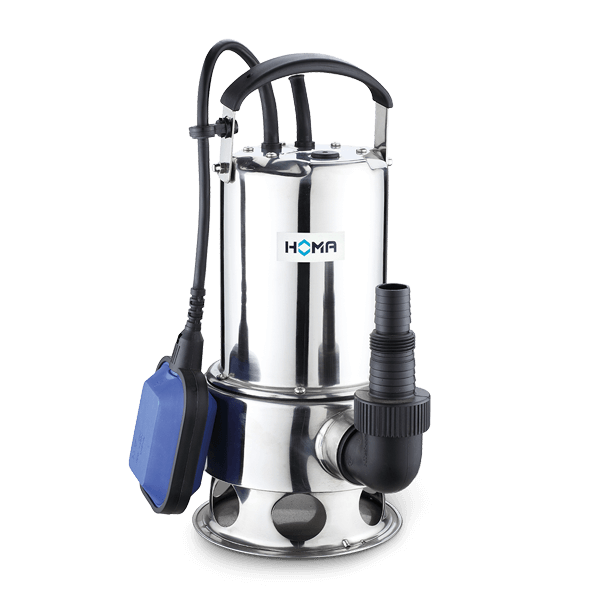

Stainless steel dirty water pump with large free passage:
The HOMA TCV series is the stainless steel all-rounder for dirty and waste water with coarser solids. Thanks to the vortex impeller, fibers, textiles and soft solids up to 50 mm pass through the pump effortlessly — ideal for basements, pump sumps and applications in private, commercial and industrial settings.
The entry-level TCV408 WA operates on 230V and comes complete with a float switch, PP elbow, and hose connection. The more powerful TCV513 to TCV519 deliver up to 28 m³/hour and are available in 230V (W/WA) and 400V (D) versions. The WA models switch fully automatically via the float.
Scope of delivery:
Pump with 10 m cable and plug, or loose cable end (D-version). TCV408 WA: includes PP elbow, hose connection and float lock.
Technical specifications:
| Head (Hmax): | 9.0 - 12.7 m |
| Flow rate (Qmax): | 16.5 - 28.0 m³/hour |
| Power (P2): | 0.76 - 1.2 kW |
| Voltage: | 230V (W/WA) / 400V (D) |
| Impeller: | Vortex |
| Free passage: | 35 - 50 mm Ø |
| Discharge connection: | 1½" int. - 2" int. |
| Speed: | 2900 rpm |
| Material: | Pump housing and impeller made of stainless steel |
Downloads:
Datasheet TCV (PDF)
Manual TCV (PDF, DE/EN/NL)
Non-binding advice?
Are you unsure which TCV version suits your situation? Feel free to contact our customer service — we are happy to help you think things through.
