Pros and cons:
+ Sensor switch automatically activates the pump with only 5 mm of water — prevents major floods
+ Pumps down to a residual water level of 2 mm
+ No pump pit or floor drain needed: ideal for laundry rooms, basements, or boiler rooms
+ Jacket cooling: sufficient motor cooling even at low water levels
- Suitable for clean and slightly contaminated water (solids up to 3 mm)
Automatic flood protection:

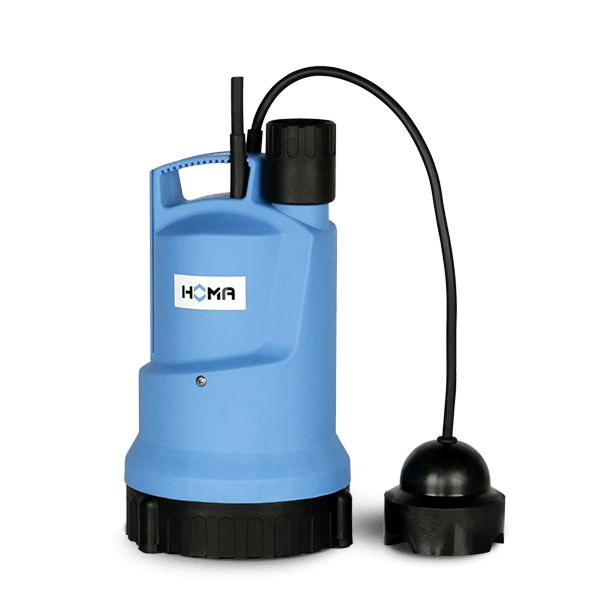

The HOMA Sensoflat is a flat-suction submersible pump with an electronic sensor switch. While a conventional float switch only activates at 20-25 cm of water, the Sensoflat intervenes from just 5 mm. In practice, a leaking washing machine, burst pipe, or heavy rain is often only noticed after the damage has already occurred — this pump switches itself on before that happens and continues pumping until only 2 mm of water remains.
The pressure-tight motor has a stainless steel motor housing and thermal protection in the winding. The C270 WF is the more powerful version with a suction strainer and outer casing entirely made of stainless steel (insulation class F, IP68).
Scope of delivery:
1. C240 WF: pump with sensor switch, double socket with sealing ring and hose connection, 10 m cable and plug
2. C270 WF: pump with sensor switch, 10 m cable and plug
Technical specifications HOMA Sensoflat:
| Head (Hmax): | C240 WF: 8.0 m / C270 WF: 10.2 m |
| Flow rate (Qmax): | C240 WF: 10.0 m³/hour / C270 WF: 9.7 m³/hour |
| Power (P2): | C240 WF: 0.25 kW / C270 WF: 0.45 kW |
| Voltage: | 230 Volt / 1 phase |
| Free passage: | C240 WF: 3 mm / C270 WF: 2 mm |
| Activation level: | from 5 mm water level |
| Discharge connection: | 1¼" |
| Max. medium temperature: | 35 °C (briefly 60 °C) |
| Article numbers: | 9110385 / 9110286 |
Downloads:
1. Datasheet HOMA Sensoflat C240 WF / C270 WF (DE)
2. Manual C240 (NL / ENG / DE / FR)
3. Manual C270 (NL / ENG / DE / FR)
Obligation-free advice?
Are you hesitating between the C240 and C270, or do you want to know if the Sensoflat is suitable for your situation? Feel free to contact our customer service — we are happy to help you think it through.
