Pros and cons:
+ Diaphragm pressure tank (22 - 60 litres) prevents frequent switching during low water demand
+ Fully automatic via pressure switch — tap open = pump on
+ Self-priming, stainless steel pump housing and impeller
- Only for clean water (no abrasive particles)
Classic booster system for home and garden:

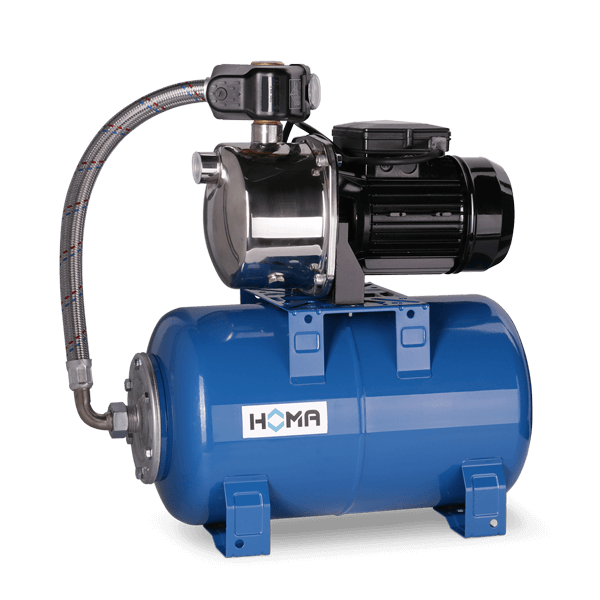

The HOMA HWE series is the classic domestic water system: a self-priming stainless steel pump with a pressure switch and a diaphragm pressure tank. The pressure tank supplies small amounts of water without the pump having to start — ideal for toilet flushes or brief hand washing, and it saves switching cycles and energy.
The HWE55 and HWE71 have a 22-litre steel pressure tank, the HWE70-60 a large 60-litre tank, and the HWE76E a 22-litre stainless steel tank. All models provide water supply from a well, rainwater tank, or pond and are also suitable for lawn sprinklers and pressure boosting (max. inlet pressure 1 bar) thanks to their high pressure.
Scope of delivery:
Pump with pressure switch, diaphragm pressure tank, manometer, 2 m cable and plug.
Technical specifications:
| Head (Hmax): | 47 - 53 m |
| Flow rate (Qmax): | 3.3 - 4.5 m³/hour |
| Power (P2): | 0.70 - 1.00 kW |
| Voltage: | 230 Volt / 1 phase |
| Suction/discharge connection: | 1" int. |
| Pressure tank: | 22 litres steel / HWE70-60: 60 litres / HWE76E: 22 litres stainless steel |
| Material: | Pump housing and impeller made of stainless steel |
| Max. medium temperature: | 35 °C |
Downloads:
Datasheet HWE/HCE (PDF)
Manual HWE (PDF, DE/EN/NL)
No-obligation advice?
Are you hesitating between a domestic water system with a pressure tank (HWE) or with electronic control (HCE)? Feel free to contact our customer service — we are happy to help you.
