Pros and cons:
+ Heavy-duty professional construction pumps: up to 70 m³/hour and 31 m head
+ Jacket cooling: full motor cooling even at low water levels, continuous operation (S1)
+ Wear-resistant impeller, pump housing made of ductile cast iron (GJS), stainless steel outer casing
+ Includes control box with manual/auto switch and STORZ coupling
- Requires 400 V three-phase power
Professional construction pump for abrasive dirty water:

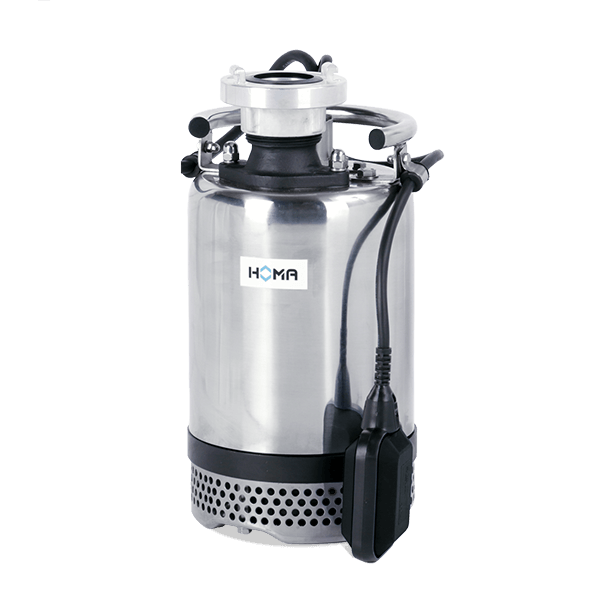

The HOMA HBP522, HBP537 and HBP555 are jacket-cooled construction pumps for dirty water containing abrasive sand or mud particles. This is the heavier segment of the HBP series: where the HBP503-512 handles daily construction pit work, these machines are used when serious volume needs to be moved — dewatering large construction pits, tunnels, wellpoint dewatering or emergency deployment for large-area flooding.
In practice, the jacket cooling is a major advantage on a construction site: the pump continues to run cooled even when the pit is almost empty, without overheating. The motor shaft and outer casing are made of stainless steel, the impeller is wear-resistant and the pump housing of ductile cast iron (GJS) is resistant to years of abrasive conditions. Supplied with 20 m cable and control box; the DA versions switch automatically via the float switch.
Scope of delivery:
Pump with 20 m cable, control box with manual/auto switch or on/off switch and STORZ coupling. DA versions with automatic float switch.
Technical specifications HOMA HBP522 / HBP537 / HBP555:
| Head (Hmax): | HBP522: 18.0 m / HBP537: 26.5 m / HBP555: 31.0 m |
| Flow rate (Qmax): | HBP522: 55.0 m³/hour / HBP537: 55.0 m³/hour / HBP555: 70.0 m³/hour |
| Power (P2): | HBP522: 2.2 kW / HBP537: 3.7 kW / HBP555: 5.5 kW |
| Voltage: | 400 Volt / 3 phases |
| Free passage: | 6 - 9 mm |
| Discharge connection: | 2" - 3" ext. with STORZ coupling |
| Max. medium temperature: | 40 °C |
| Weight: | 39 - 71 kg |
| Article numbers: | 9251280 / 9251290 / 9251281 / 9251291 / 9251282 / 9251292 |
Downloads:
1. Datasheet HOMA HBP503 - HBP555 (DE)
2. Manual HBP522 - HBP555 (NL / ENG / DE / FR)
3. Brochure HOMA HBP construction pumps (ENG)
Obligation-free advice?
Are you unsure which HBP suits your dewatering needs, or debating between the HBP series and a submersible agitator pump? Feel free to contact our customer service — we are happy to help.
