Pros and cons:
+ Wear-resistant construction: also suitable for water with abrasive sand and mud particles
+ Includes 90° connection elbow and STORZ-C fixed coupling: direct connection of a fire hose
+ Oil-filled, pressure-waterproof motor (IP68, insulation class H)
+ Supplied with control box
- Solids up to a maximum of 10 mm
Wear-resistant submersible pump for sandy water:

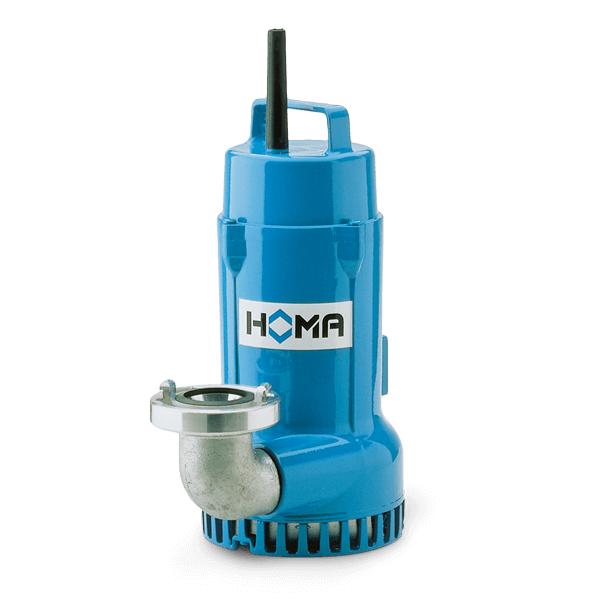

The HOMA H16 is a wear-resistant submersible pump for clean and dirty water with abrasive sand or mud particles. Sandy water is the fastest destroyer of a regular submersible pump: the impeller wears down and efficiency decreases. The H16 is built for this, with a cast iron impeller, rubberized suction cover, and a robust aluminum housing.
Typical applications: groundwater lowering, dewatering construction pits, tunnels, and shafts, and as an emergency pump for floods. Thanks to the included STORZ-C coupling, you can directly connect a standard pressure hose – which is very practical on a construction site. With 22.5 m³/hour and 11.5 meters head, the pump operates on a standard 230 V connection, so it can be used in locations without three-phase power.
Scope of delivery:
Pump with 90° connection elbow, STORZ-C fixed coupling, 10 m cable, and control box. WA version with automatic float switch.
Technical specifications HOMA H16:
| Head (Hmax): | 11.5 m |
| Flow rate (Qmax): | 22.5 m³/hour |
| Power (P2): | 0.75 kW |
| Voltage: | 230 Volt / 1 phase |
| Free passage: | 10 mm |
| Discharge connection: | 1½" int. with STORZ-C coupling |
| Max. medium temperature: | 40 °C (short-term 60 °C) |
| Weight: | 10.8 kg |
| Article numbers: | 9221120.02 / 9221125.02 |
Downloads:
1. Datasheet HOMA H16 (NL)
2. Manual H16 (NL / ENG / DE / FR)
Obligation-free advice?
Are you unsure whether the H16 is powerful enough for your job, or are you also considering the larger H119 / H121? Feel free to contact our customer service – we are happy to help you think it through.
