Pros and cons:
+ Universal professional drainage pump: pumps up to 24 m³/hour
+ Robust construction: aluminum housing with cast iron impeller
+ Oil-filled, pressure-waterproof motor (IP68, insulation class H) with thermal sensor
+ Supplied with control box
- Solids up to a maximum of 10 mm
Professional drainage pump for large volumes of water:

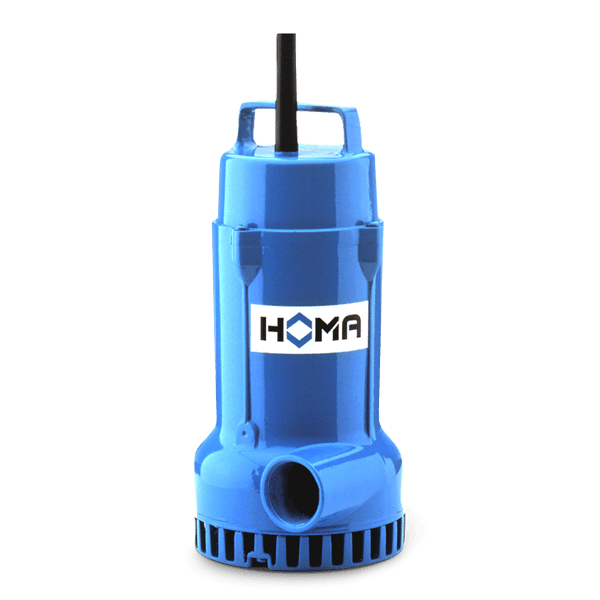

The HOMA H106 and H117 are universal submersible drainage pumps for clean and dirty water. Where smaller cellar pumps stop, these begin: with a flow rate of up to 19 m³/hour (H106) or 24 m³/hour (H117) and a discharge head of up to 11 meters, they quickly empty a flooded cellar, construction pit, or area. Also suitable for lowering surface water and pumping water from reservoirs for irrigation.
In practice, this series is often seen with contractors and installers who need a reliable pump that can handle daily work. The motor is oil-filled and pressure-waterproof (IP68, insulation class H) with a thermal sensor in the winding, and the electrical connection compartment is separate from the motor — solid German engineering that will last for years. The WA versions have a guided float switch with adjustable switching height for fully automatic operation.
Scope of delivery:
Pump with 10 m cable and control box. WA versions with automatic float switch.
Technical specifications HOMA H106 / H117:
| Discharge head (Hmax): | H106: 8.0 m / H117: 11.0 m |
| Flow rate (Qmax): | H106: 19.0 m³/hour / H117: 24.0 m³/hour |
| Power (P2): | H106: 0.50 kW / H117: 0.75 kW |
| Voltage: | 230 Volt / 1 phase |
| Free passage: | 10 mm |
| Discharge connection: | 1½" int. |
| Max. medium temperature: | 40 °C (briefly 60 °C) |
| Weight: | H106: 10.6 kg / H117: 10.7 kg |
| Article numbers: | 9010620.02 / 9110621.02 / 9011700.02 / 9111700.02 |
Downloads:
Datasheet available upon request via our customer service.
Obligation-free advice?
Are you hesitating between the H106 and H117, or between this series and a wear-resistant construction pump? Feel free to contact our customer service — we are happy to help you make an informed decision.
