Pros and cons:
+ Vortex impeller: insensitive to fibers and coarser solids up to 20 mm (CR360V) or 30 mm (CR372V)
+ Motor housing, pump housing, suction strainer and impeller completely made of stainless steel 1.4301
+ Compact and light: easy to carry as an emergency pump
+ Jacket cooling: sufficient motor cooling even at low water levels
+ CR372V supplied with control box, motor protection and on/off switch
- Only available in 230 V version
Dirty water pump with vortex impeller for heavily contaminated water:

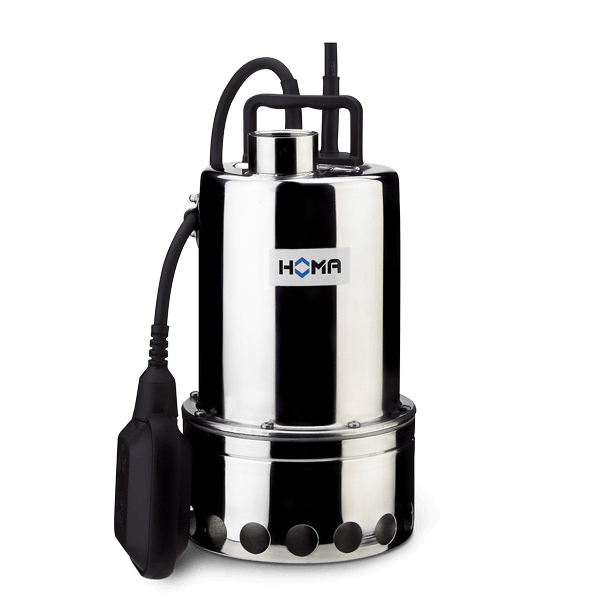

The HOMA CR360V and CR372V are stainless steel dirty water pumps with vortex impellers for water with a large proportion of solids and fibers. A conventional multi-channel impeller gets stuck on rags, leaves or other fibrous material — with a vortex impeller, the impeller rotates freely above the flow opening, so blockages rarely occur in practice. This makes this series the right choice for pumping dirty water in and around the house, in case of flooding, or as a robust portable emergency pump.
Which one to choose? The CR360V (20 mm passage, 1¼" connection) is the compact all-rounder for cellars and pits. The CR372V (30 mm passage, 2" connection) pumps significantly more with 25 m³/hour and 12 m delivery head and is supplied with a control box and motor protection — you often see it in locations where a lot of water needs to be removed quickly. Both are entirely made of stainless steel 1.4301, including the impeller, and are therefore rust-resistant and wear-resistant.
Scope of delivery:
1-2. CR360V W / WA: pump with 10 m cable and power plug; WA with guided float switch (switching height adjustable)
3-4. CR372V W / WA: pump with 10 m cable, control box with motor protection and on/off switch; WA with float switch
Technical specifications HOMA CR360V / CR372V:
| Delivery head (Hmax): | CR360V: 7.3 m / CR372V: 12.0 m |
| Flow rate (Qmax): | CR360V: 11.5 m³/hour / CR372V: 25.0 m³/hour |
| Power (P2): | CR360V: 0.45 kW / CR372V: 1.10 kW |
| Voltage: | 230 Volt / 1 phase |
| Free passage: | CR360V: 20 mm / CR372V: 30 mm |
| Impeller: | vortex |
| Discharge connection: | CR360V: 1¼" int. / CR372V: 2" int. |
| Max. medium temperature: | 35 °C (short-term 60 °C) |
| Article numbers: | 9251111 / 9251112 / 9251210 / 9251211 |
Downloads:
1. Datasheet HOMA CR360V / CR372V (NL)
2. Manual CR360V / CR372V (NL / ENG / DE / FR)
Non-binding advice?
Are you hesitating between the CR360V and the CR372V, or are you unsure whether a vortex impeller is necessary for your situation? Feel free to contact our customer service — we are happy to assist you.
