Supplier item number: SPT 315
Pros and cons:
+ Powerful 1.5 kW three-phase pump (400V) for sandy and dirty water
+ Open vortex impeller — insensitive to fibers and solids
+ Robust cast iron housing with chrome steel impeller — wear-resistant
+ Double mechanical shaft seal (SiC) and thermal protection
- Only available as 400V three-phase — no 230V version
Professional construction & dirty water submersible pump

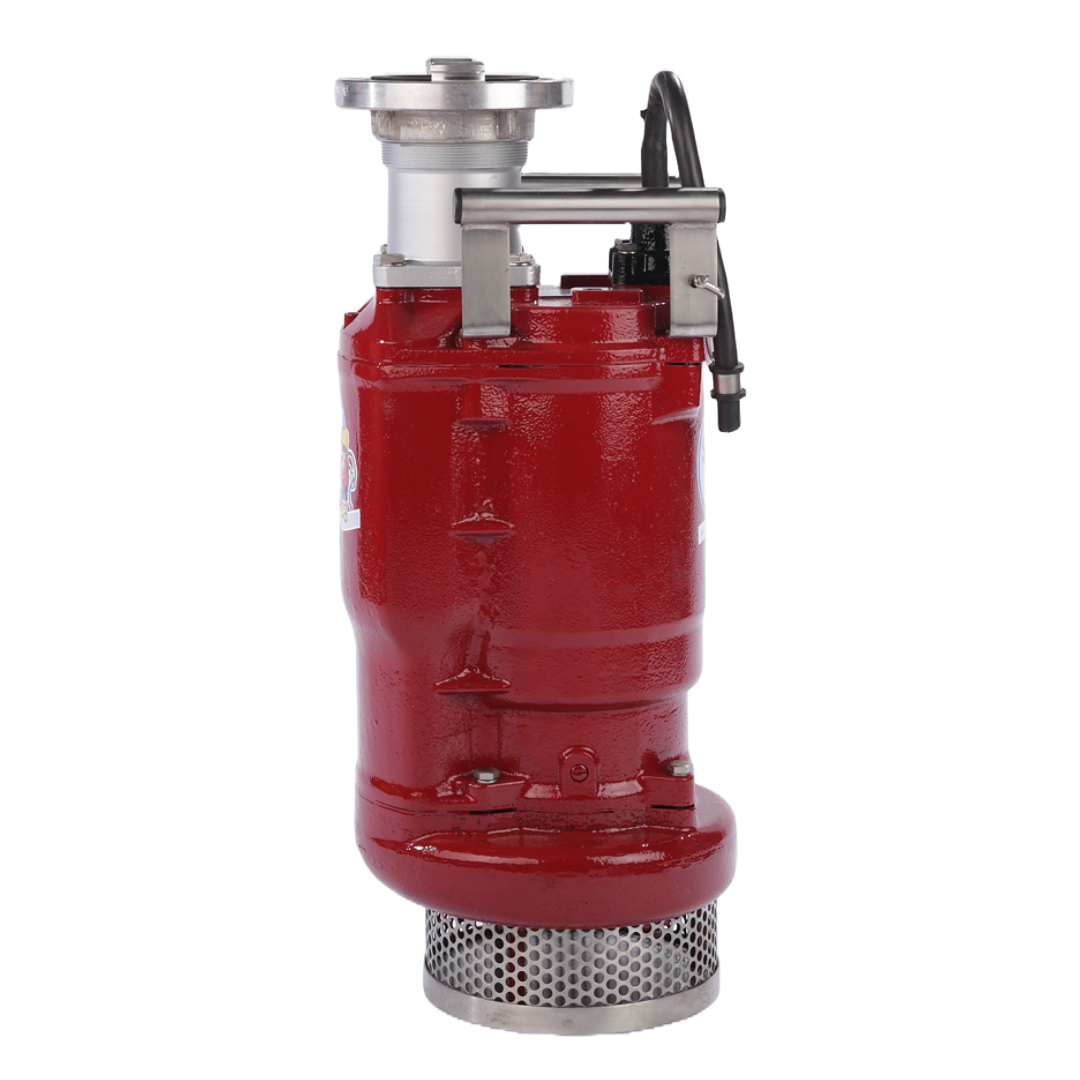

The SPT 315 is a professional construction and dirty water submersible pump (1.5 kW, 400V) for sandy and gravelly water. Exactly the pump for when a regular garden pump fails due to dirt: on construction sites, for dewatering, and in utilities.
The pump housing and motor are made of wear-resistant cast iron, the open vortex impeller of chrome steel casting. With a double mechanical shaft seal made of silicon carbide (SiC) and built-in thermal motor protection, the 315 is resistant to abrasive, contaminated water and continuous operation.
Which SPT submersible pump do I need?

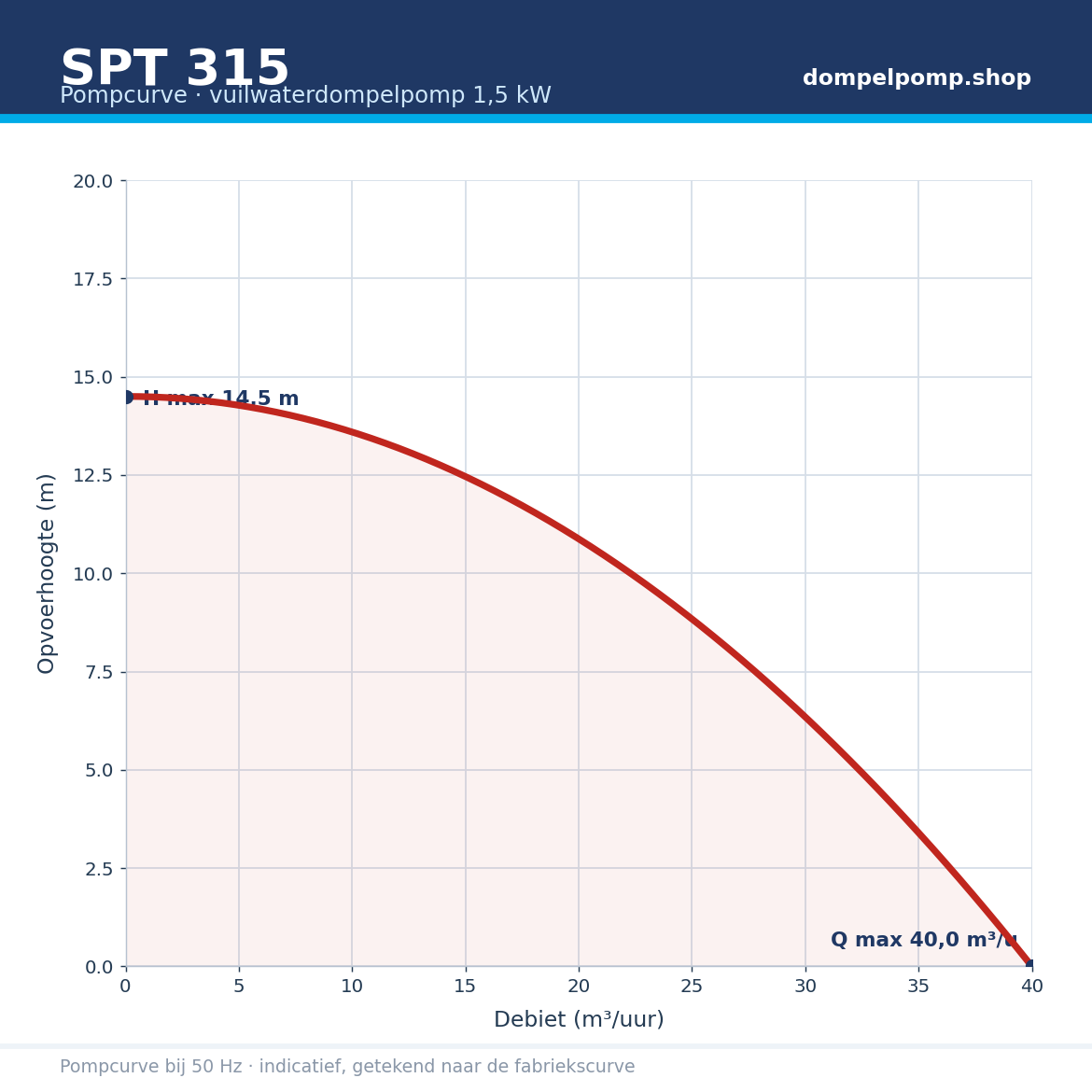

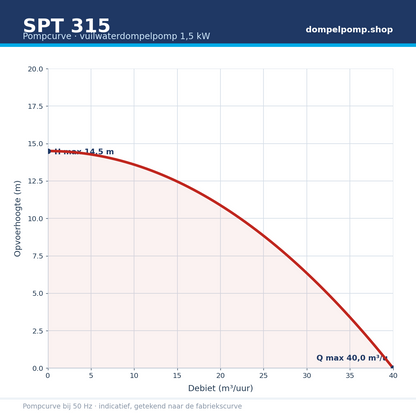

Choose by power, head, and flow rate. The 315 delivers up to 40 m³/hour and 14.5 meters of head. If you need more pressure or flow, look at a heavier model from the SPT 215–8220 series. Unsure about the right choice? Ask us for free advice.
Scope of delivery
SPT 315 submersible pump with R 3" discharge connection. This 400V three-phase pump does not have a built-in float; level control is via an external control system.
Technical specifications SPT 315
| Power | 1.5 kW (2-pole, 2900 rpm) |
| Voltage | 400 V / 3-phase (three-phase current) |
| Nominal current | 3.50 A |
| Max. head | 14.5 meters |
| Max. flow rate | 40 m³/hour |
| Free passage | 8.5 mm |
| Discharge connection | 3" (80 mm) R"AG |
| Material | Cast iron housing, chrome steel impeller |
| Shaft seal | Double mechanical seal (SiC) |
| Weight | 37 kg |
Downloads
1. SPT 215–8220 datasheet (DE)
Free advice?
Unsure if the SPT 315 suits your situation? Feel free to contact our customer service — we are happy to help you think things through.
