Supplier item number: NS-95X/16: SAER NS-95X/16 · NS-95C/16T: SAER NS-95C/16T · NS-95C/16M: SAER NS-95C/16M · NS-95DA/10: SAER NS-95DA/10 · NS-95DA/17: SAER NS-95DA/17
Pros and Cons:
+ Well pump made of high-quality stainless steel
+ Very suitable for irrigation
+ Submersible depth of max. 200 meters
+ Delivers high pressure: high head
+ Plug & Play by PVS BRONKOP
- No automatic float switch: possible with PLC (ask about the options)
- Only applicable in clean water

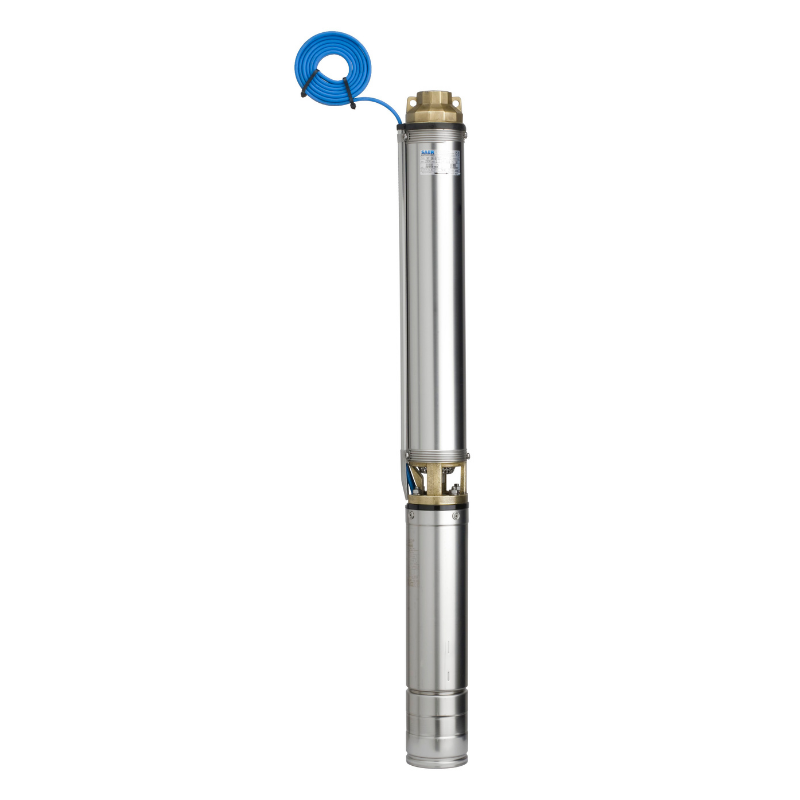

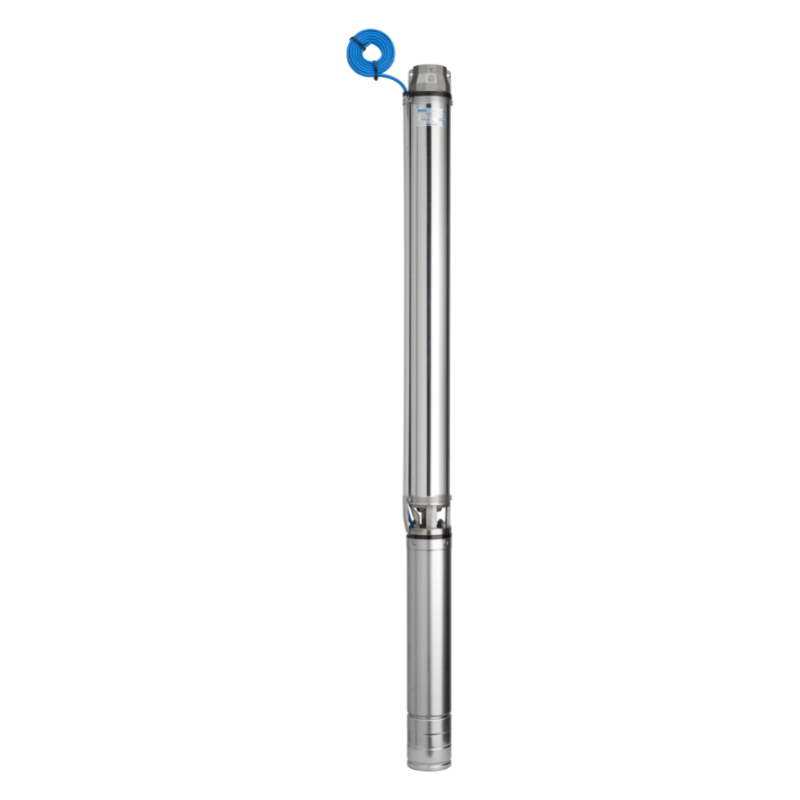

High-quality stainless steel well pump, professionally built:
Our SEAR well pumps are professionally manufactured in one of the four factories in Italy. The manufacturer of this pump line is constantly looking for improvements and innovations to incorporate into its products.

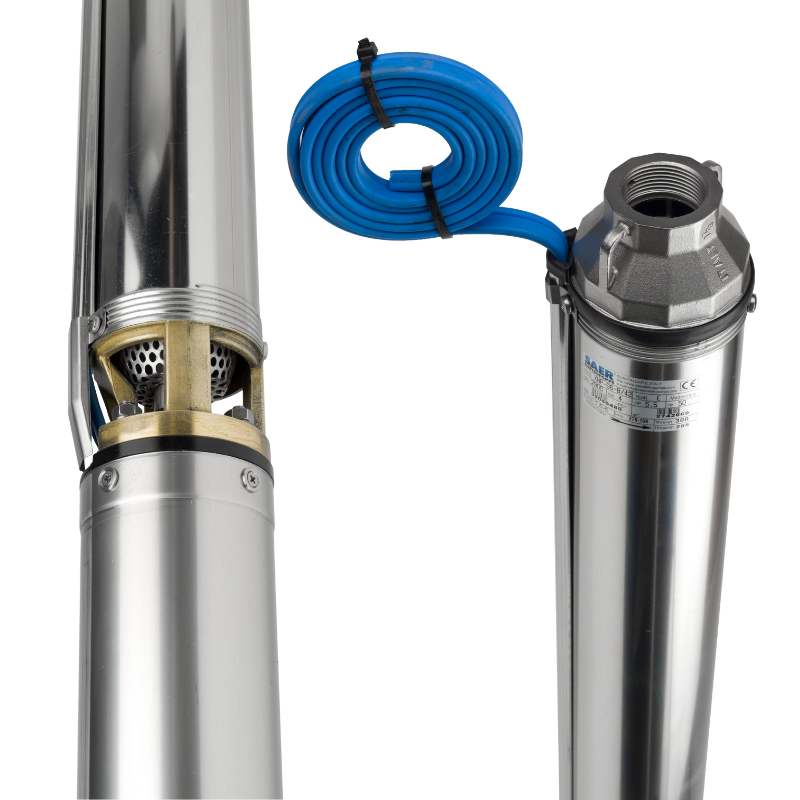

The 4” NS line from SEAR is incredibly durable due to its stainless steel outer casing and AISI 420 steel pump shaft. The lightweight polycarbonate impellers transfer the power of the 750watt to 3000watt strong electric motor to the medium to be pumped.
It is important that this type of well pump is protected against dirty water and abrasive particles in the water to prevent wear to the pump. For all SEAR pump models, an automatic float switch or PLC, please contact our pump experts.
Scope of delivery:
1. SEAR NS-95X/16: 230 Volt stainless steel well pump incl. 20 meter power cable, complete with capacitor box and equipped with thermal protection
2. SEAR NS-95C/16T: 400 Volt stainless steel well pump incl. 20 meter power cable, complete with capacitor box and equipped with thermal protection
3. SEAR NS-95C/16M: 230 Volt stainless steel well pump incl. 20 meter power cable, complete with capacitor box and equipped with thermal protection
4. SEAR NS-95DA/10: 400 Volt stainless steel well pump incl. 20 meter power cable, complete with capacitor box and equipped with thermal protection
5. SEAR NS-95DA/17: 400 Volt stainless steel well pump incl. 20 meter power cable, complete with capacitor box and equipped with thermal protection

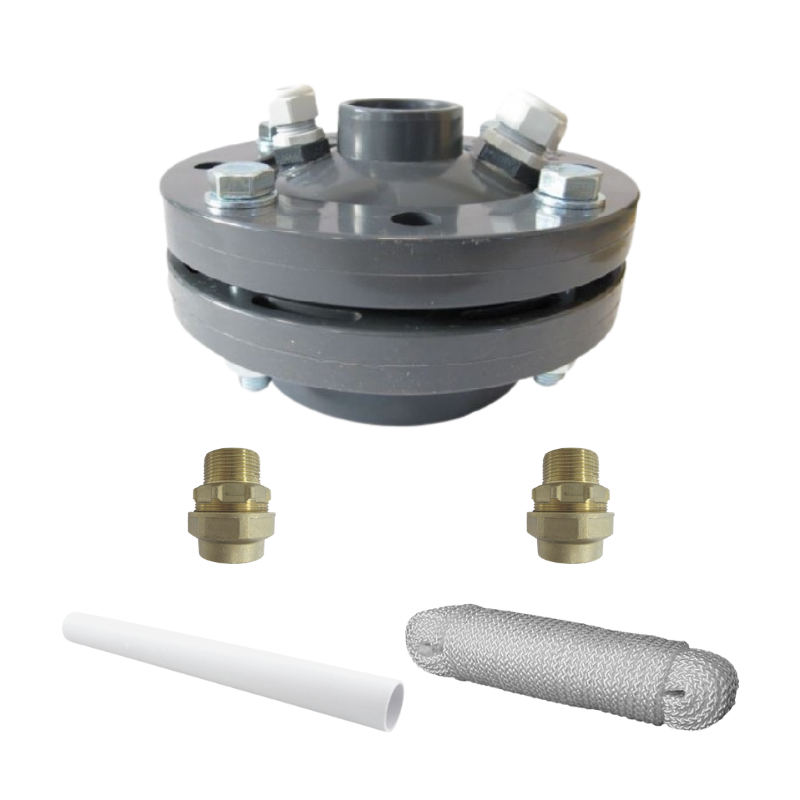

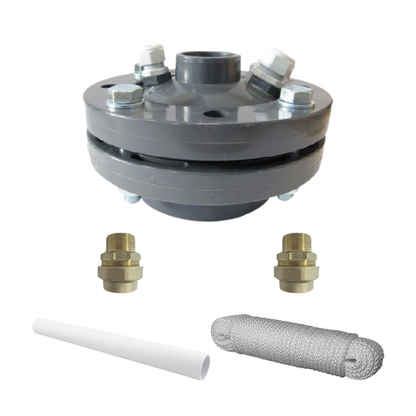

6. PVC Well head 110mm: PVC well head (110 mm) complete with couplings and 15 mtr PE drinking water pipe 40 mm, 2 well pump couplings 40 mm complete with support sleeves and 15 meter nylon rope.
7. PVC Well head 125mm: PVC well head (125 mm) complete with couplings and 15 mtr PE drinking water pipe 50 mm, reducer ring 110 mm to 125 mm, 2 well pump couplings 50 mm complete with support sleeves and 15 meter nylon rope.
Technical specifications SPT 322 D:

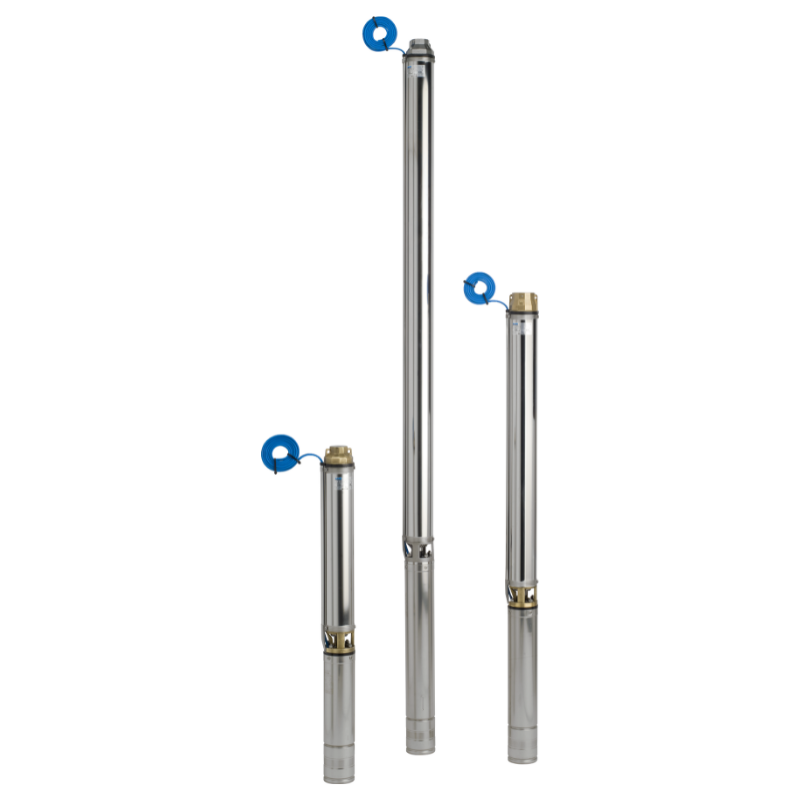

Fluid: chemically and mechanically non-aggressive, without solid matter or abrasive components. Passage of solids: max 2 mm. Temperature of the pumped fluid: min 0 C max 35 C. Maximum operating pressure: 34 bar. Maximum submersible depth: 300 m below the fluid level. Rotation direction: counter-clockwise, looking at the outlet. Pump can be placed horizontally and vertically. Below are the capacities of all SEAR stainless steel well pumps:
| Model | Height | Head | Flow rate | Well head |
| NS-95X/16 M | 925mm |
68 mwk |
5.000 l/h | 110mm |
| NS-95C/16 T / M | 1091mm | 69 mwk | 8.000 l/h | 110mm |
| NS-95DA/10 | 1290mm | 59 mwk | 11.000 l/h | 125mm |
| NS-95DA/17 | 1702mm | 98 mwk | 11.000 l/h | 125mm |
| Materials | |
| Impellers: | Polycarbonate, reinforced with glass fibers |
| Grates: | NORYL (technopolymer) reinforced with glass fibers |
| Shaft: | Stainless steel, grooved profile |
| Outlet and suction support: |
Brass or coated carbon steel (stainless steel possible) |
| Outer casing: |
AISI304 stainless steel |
| Pressure outlet: | 1" 1/4 G (NS95 KA-X-B-C) or 2" G (NS95 DA E-F). |
Downloads:
1. Product sheet SEAR NS well pumps (IT/ENG/ES/FR/DE)
Obligation-free advice?
Do you have questions about this pump, how to use it, or whether it is suitable for your situation? Please feel free to contact our customer service and we will do our best to help you.
