Article number: 80/5 AUT (300W): N2081090 · 160/7 AUT (500W): N2081110 · 200/8 AUT (750W): N2081100

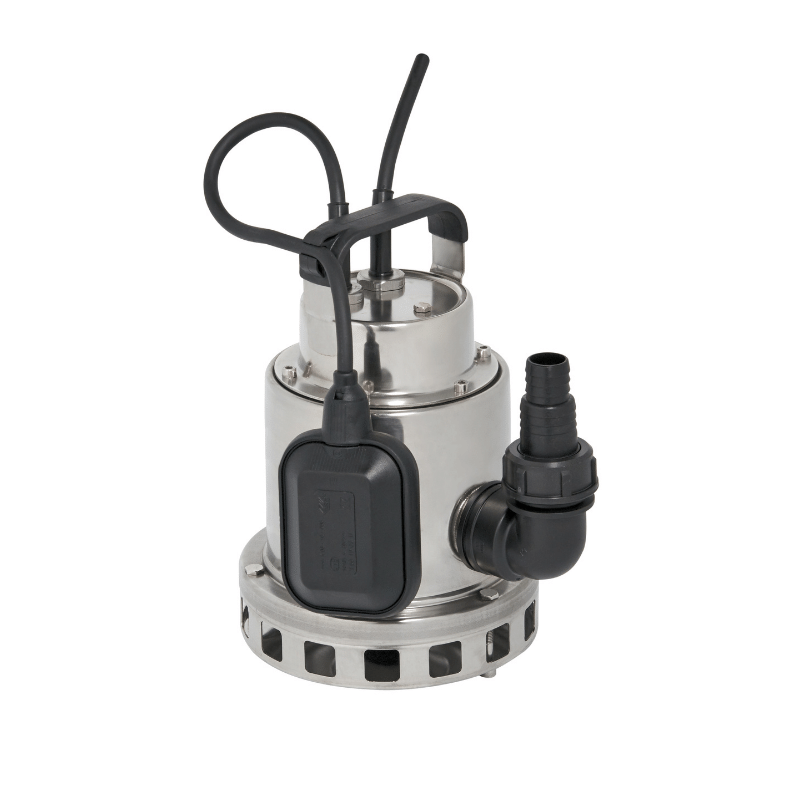

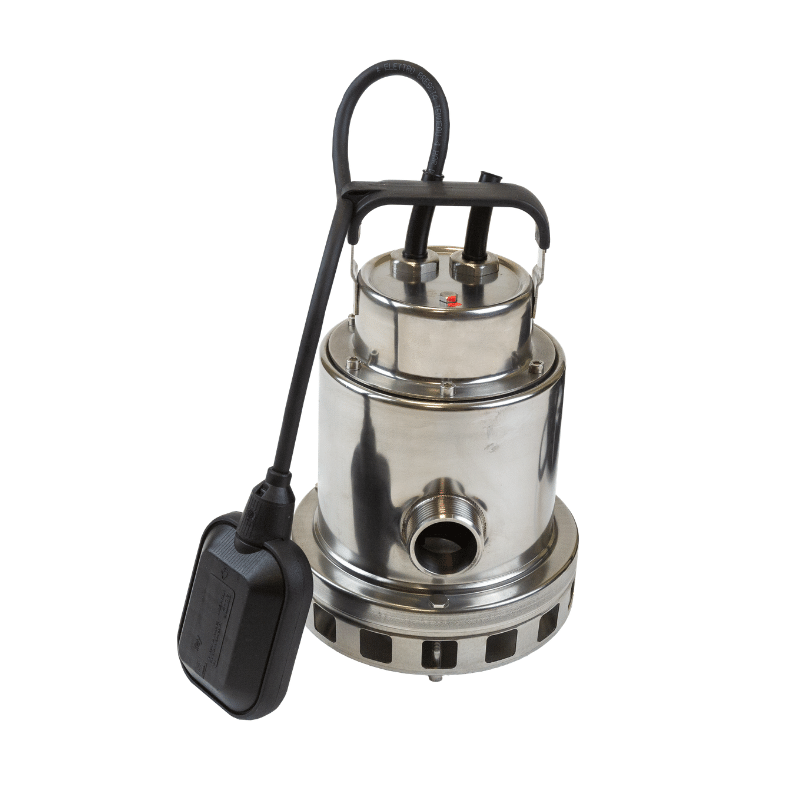

Pentair Jung Pumpen OMNIA
Robust submersible pump, entirely made of AISI 304 stainless steel
+ Full stainless steel submersible pump from the Drena-Line
+ Does not overheat thanks to its cooling jacket
+ Variable discharge connection allows various hoses to be fitted
+ Switches off automatically with the automatic float switch (electromechanical)
- Not suitable for abrasive liquids, see our construction range for pumps that can handle those
The pumps in the OMNIA series are built 100% from stainless steel (AISI 304). The motor is cooled via a cooling jacket, which allows the machine to run for a long time without being fully submerged in water. A ø 32 mm hose connection is included.
The automatic version (aut) is fitted with an electromechanical float switch. Minimum dry-running level 35 mm (in the manual version).
Applications:
- Draining infiltrated water, pumping rainwater from gullies or wells, emptying rooms, tanks and light industrial applications
- Fountains and other water applications
- Irrigation

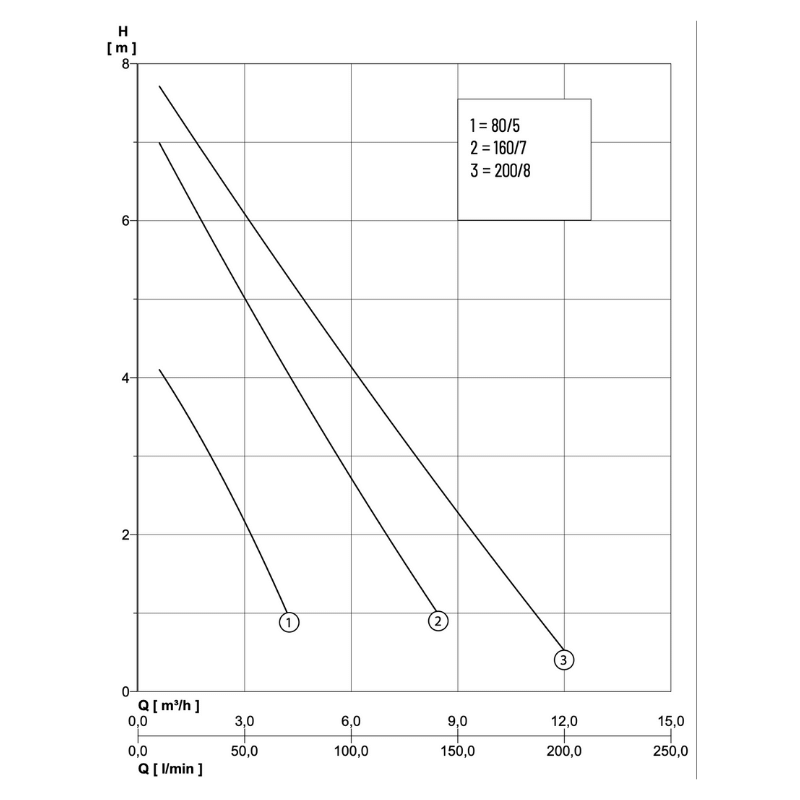

Technical specifications:
| 1. 80/5 | 2. 160/7 | 3. 200/8 | |
| Head: | 4.1 metres | 7.0 metres | 7.8 metres |
| Flow rate: | 4,200 l/hour | 7,000 l/hour | 9,400 l/hour |
| Power: | 300 watt | 500 watt | 750 watt |
| Voltage: | 230 Volt | 230 Volt | 230 Volt |

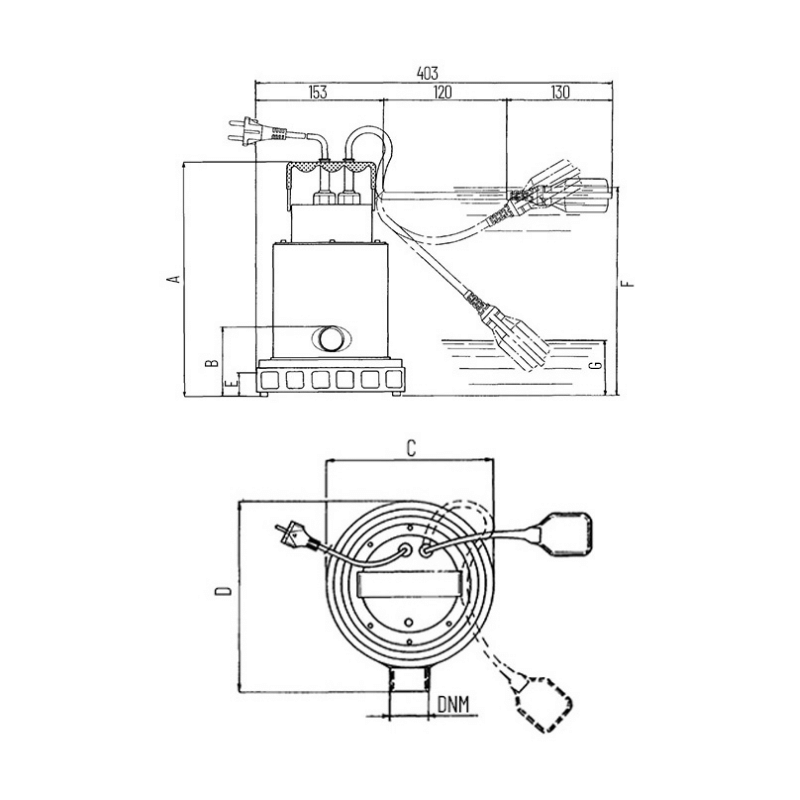

| Discharge connection: | 1 1/4" 25/35 mm | 1 1/4" 25/35 mm | 1 1/4" 25/35 mm |
| Power cable: | 10 m + mains plug | 10 m + mains plug | 10 m + mains plug |
