Item number: MULTICUT 35/2 M: JP50357 · MULTICUT 36/2 M: JP50363 · MULTICUT 45/2 M: JP50369 · MULTICUT 75/2 M: JP50375 · MULTICUT 76/2 M: JP50377 · MULTICUT 35/2 M EX: JP50359 · MULTICUT 36/2 M EX: JP50365 · MULTICUT 45/2 M EX: JP50371 · MULTICUT 75/2 M EX: JP50376 · MULTICUT 76/2 M EX: JP50378

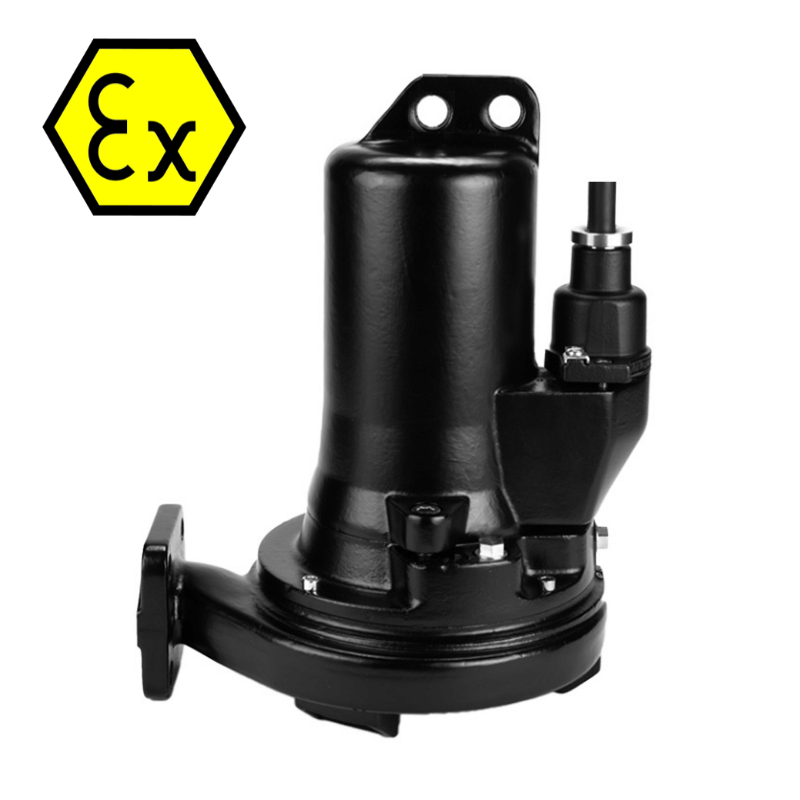

MultiCut submersible pumps from Pentair Jung Pumpen
Submersible pumps with the MultiCut cutting system are used stationary in pressure drainage systems for the dewatering of residential areas or individual houses. They are suitable for the discharge of domestic wastewater with common contaminants (as defined in DIN 1986-3).
Depending on the possible additional cutting system, the pressure line can be used from DN 32 (without cutting system min. DN 80).

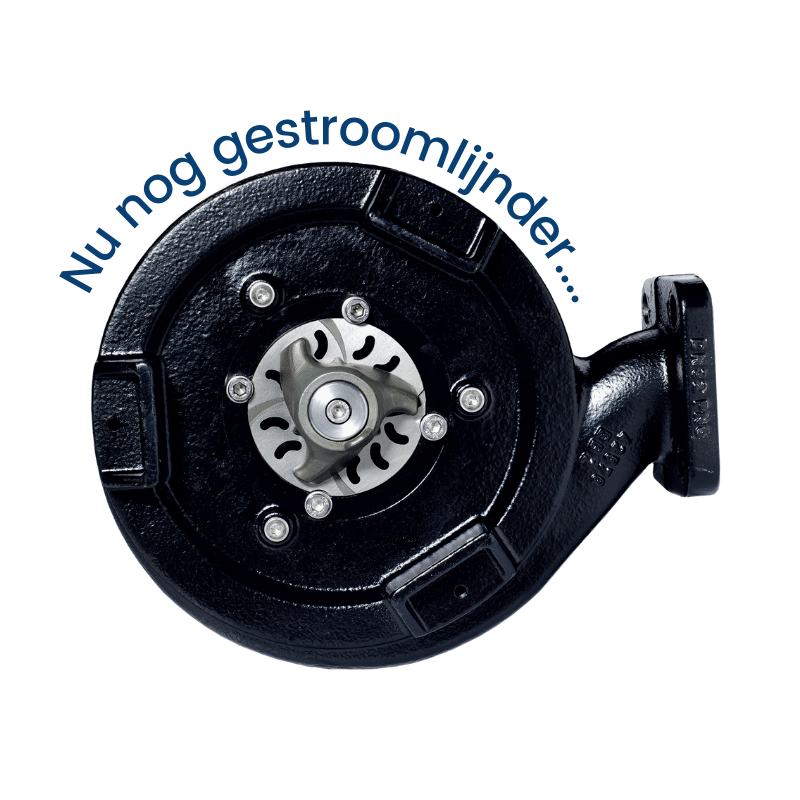

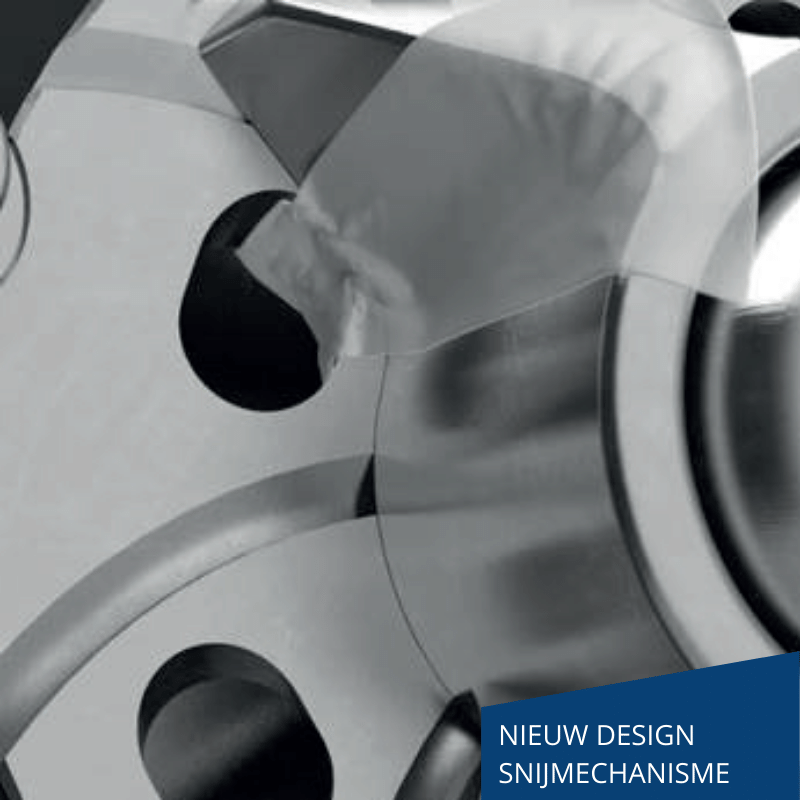

The external MultiCut cutting system ensures maximum operational reliability and excellent discharge properties. The system is equipped with a cutting plate made of hardened stainless steel (RVS) and a triangular blade. This combination, with more than 200,000 cutting operations per minute, reduces coarse contaminants in the wastewater before they can enter the hydraulic components of the pump.

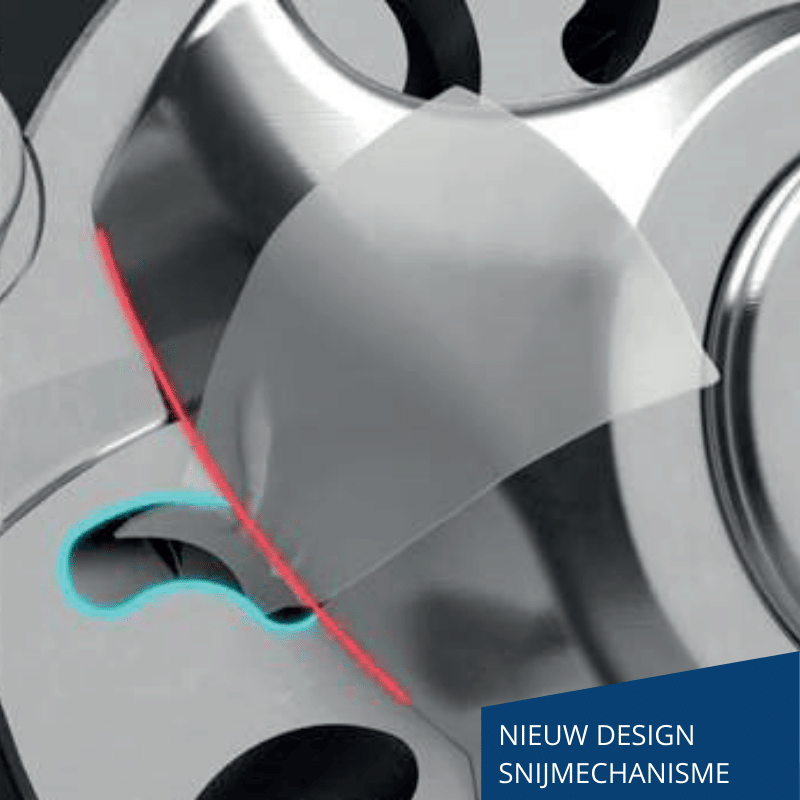

Solid particles that cannot be discharged (are too hard/large) are separated by the cutting rotor even before they enter the pump. Specially arranged grooves on the cutting plate ensure that the MultiCut system continuously cleans itself, which provides additional operational reliability and safety.
Advantages and disadvantages:
+ High reliability due to improved cutting technology

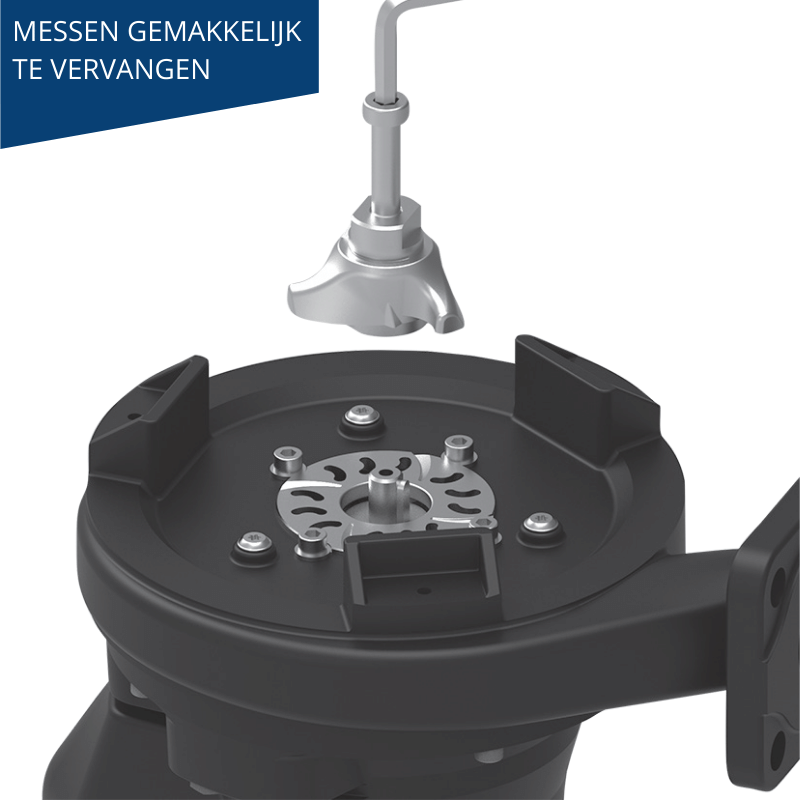

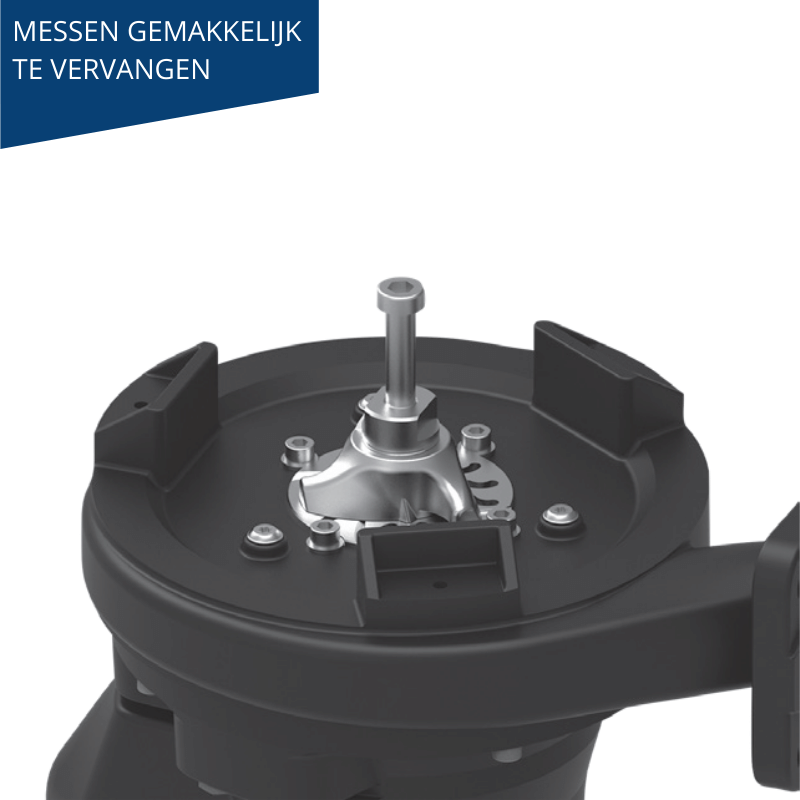

+ Adjustable cutting mechanism
+ Easy to check oil level in oil reservoir
+ Explosion-proof version
+ Built-in motor protection
- Cannot cut everything, cutting rotor prevents these parts from being pumped
Downloads:
Product Sheet Pentair Jung Pumpen Multicut ENG
Product Sheet Pentair Jung Pumpen Multicut NL
Manual Pentair Jung Pumpen Multicut 08 / 20
Manual Pentair Jung Pumpen Multicut 20
Brochure Pentair Jung Pumpen Multicut
