Item number: 400 RK E (230V): JP09324 · 400 RK (400V): JP09322
COMPLI 400 RK E - Pentair Jung Pumpen
A station with unique features:

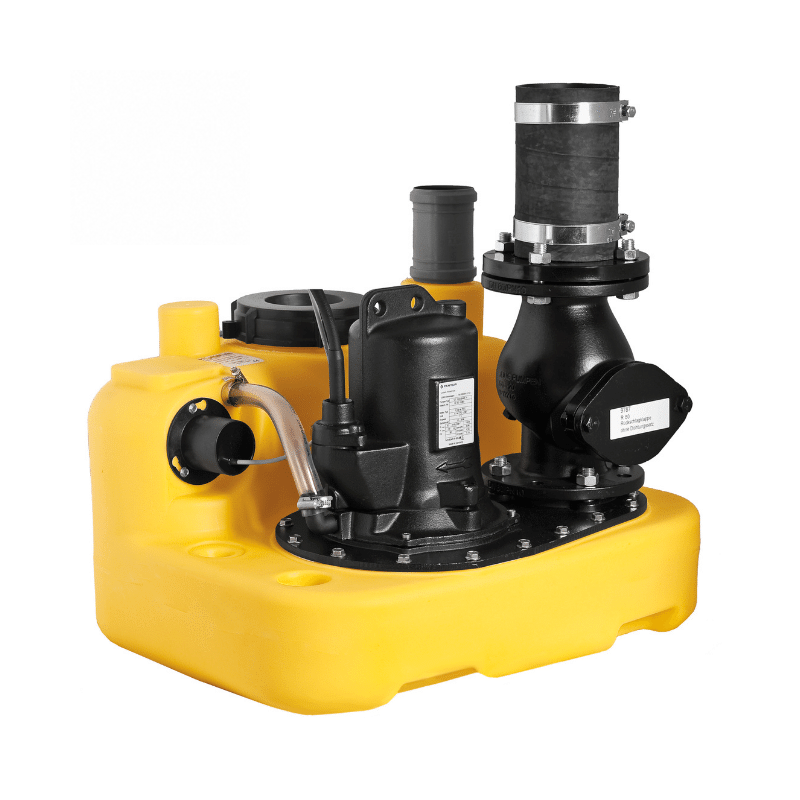

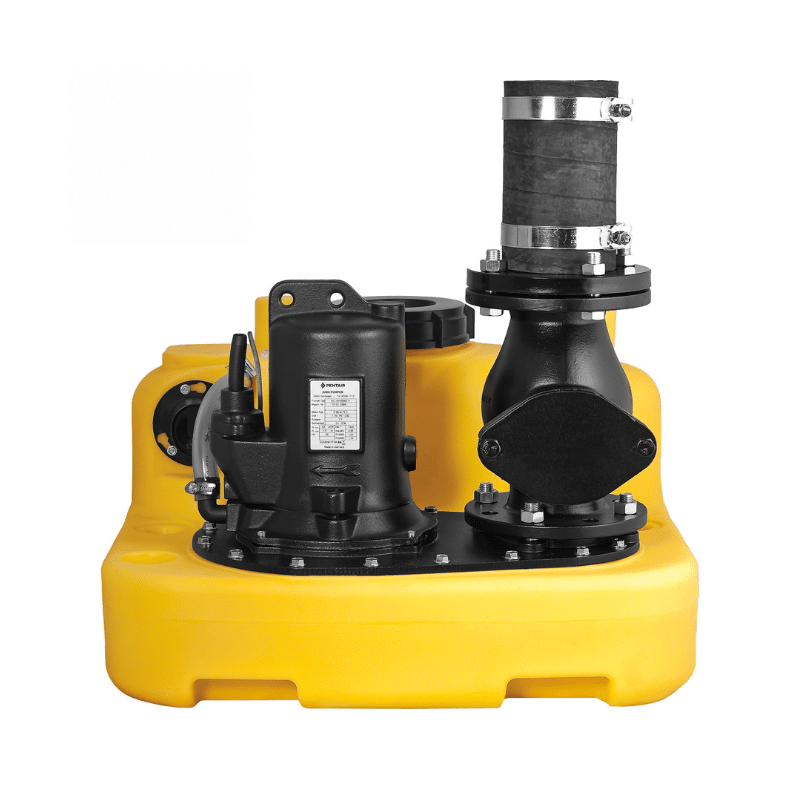

The COMPLI 400 RK E is a powerful sewage lifting station from the COMPLI series. This station has been specially developed for the discharge of wastewater from homes, such as those with a basement. Thanks to its very compact reservoir dimensions and numerous connection options, the COMPLI 400 is versatile in its application.
The COMPLI 400 RK E is easy to install not only due to its low weight, but also due to the plug with integrated control, eliminating the need for an electrician to commission the installation.
The submersible unit can be used for general purposes in areas at risk of flooding. The socket must be connected in a well-ventilated and flood-protected area.
The powerful single-phase motor of the COMPLI 400 rests on a stable base with an annular cast iron housing, making the installation particularly stable and ensuring quiet operation.
Pros and cons:
+ Submersible: no risk during flooding
+ Delivered ready for connection: including control box
+ Variable connection options mean the unit can be placed almost anywhere
+ Possibility to connect to SMART HOME systems
+ Non-return valve prevents pipeline from emptying
- No cutting mechanism
Why a lifting station from Pentair?
The range of sewage lifting stations extends from small installations for processing a single toilet to large installations for hotels, businesses, and industry. All installations operate automatically and are distinguished by container volumes and pump sizes. All installations are fully produced and assembled at the company's own factory in Germany. Pentair also produces the various PE reservoirs here itself.
Not 2 but 5 years warranty!
We are convinced of the quality of our products. That is why we offer SHK-FACHBETRIEBEN a 5-year warranty on the purchase of selected products.
Register your pump to claim the warranty!
Scope of delivery:
Ready-to-connect reservoir system according to EN 12050, height-adjustable clamp flange DN 100 for inlet height 180/250 mm, additional inlets Ø 50 mm horizontally and vertically, possibility for inlet DN 100 from above, mounted submersible pump and connection flange DN 80 with pipe section Ø 110, optionally with pre-assembled non-return valve DN 80, each with an elastic connection with clamps for the plastic pressure pipe and a sliding sleeve for the ventilation pipe DN 70, automatic level control, control system (protection class IP 44) with circuit breaker, motor protection, transformer, mains-voltage-dependent, optionally restartable alarm system and potential-free contact for collective fault message, with optical display of alarm, operation and rotation direction (only for three-phase current), manual–0–auto switch. On request, the system can be equipped with a microprocessor control.
Cable reservoir–control system 4 m, cable control system–plug 1.5 m.

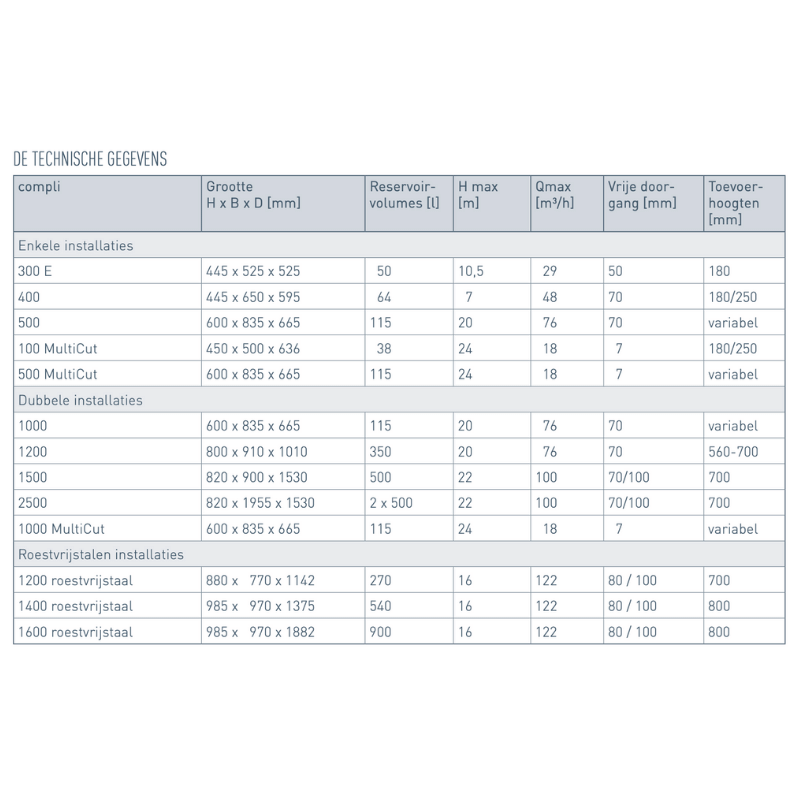

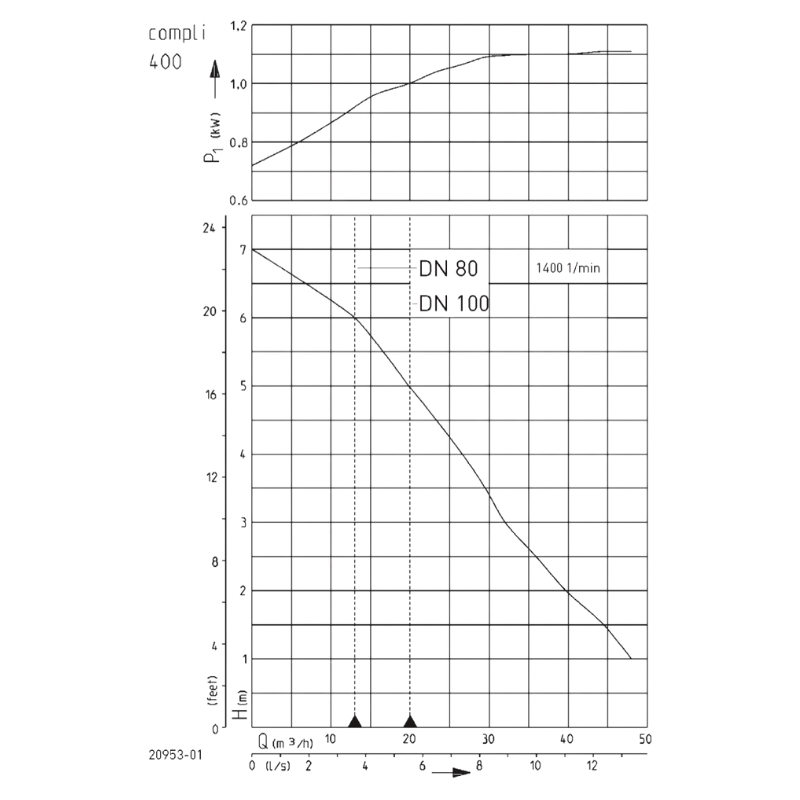

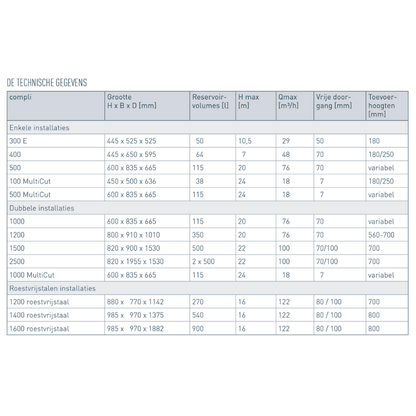

Technical specifications:

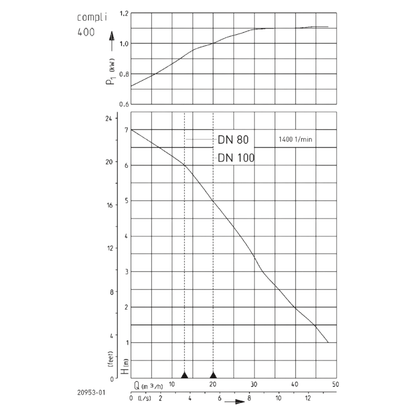

| Head: | 7 meters |
| Flow rate: | 48 m3/hour |
| Power P1: | 1.25 kW / 1.55 kW |
| Voltage: | 230 Volt |
| Tank capacity: | 64 liters |
| Weight: | 70 kg / 71 kg |
| Free passage: | 70mm |
Downloads:
1. Product sheet COMLI 400
2. Instruction manual COMPLI
3. Promo sheet COMPLI series

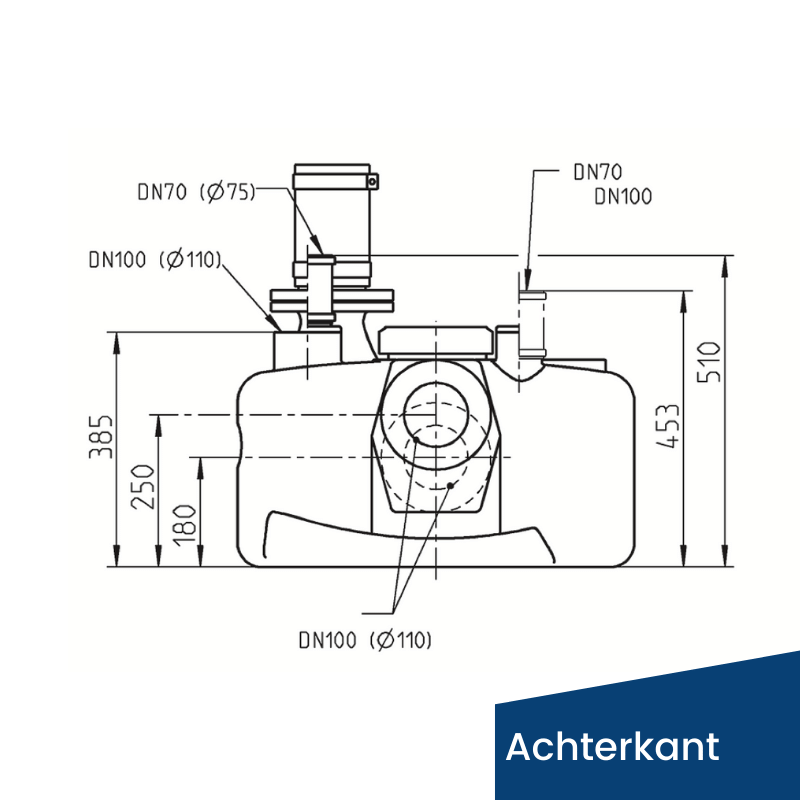

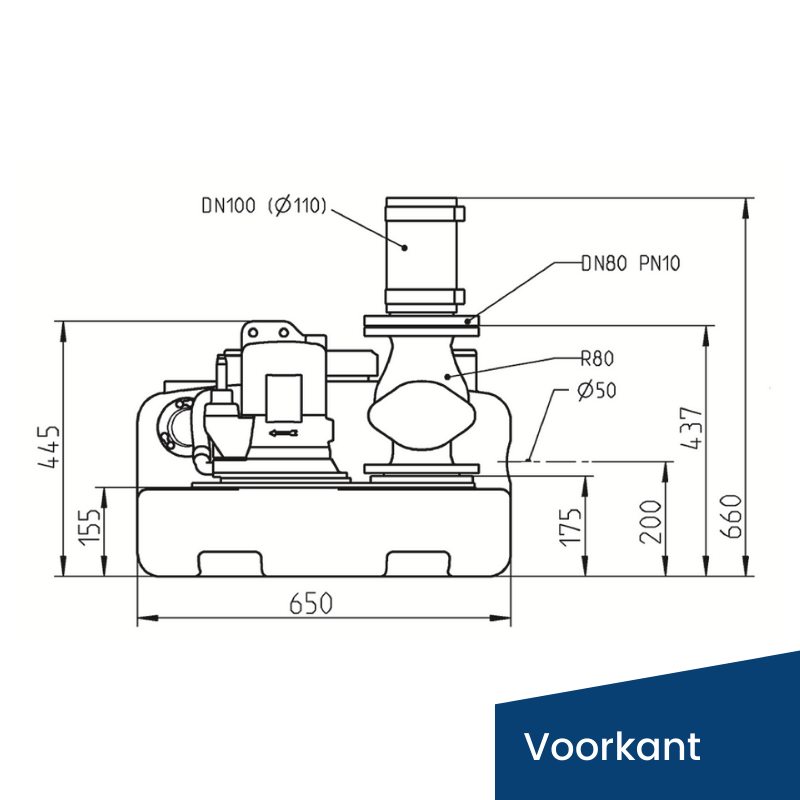

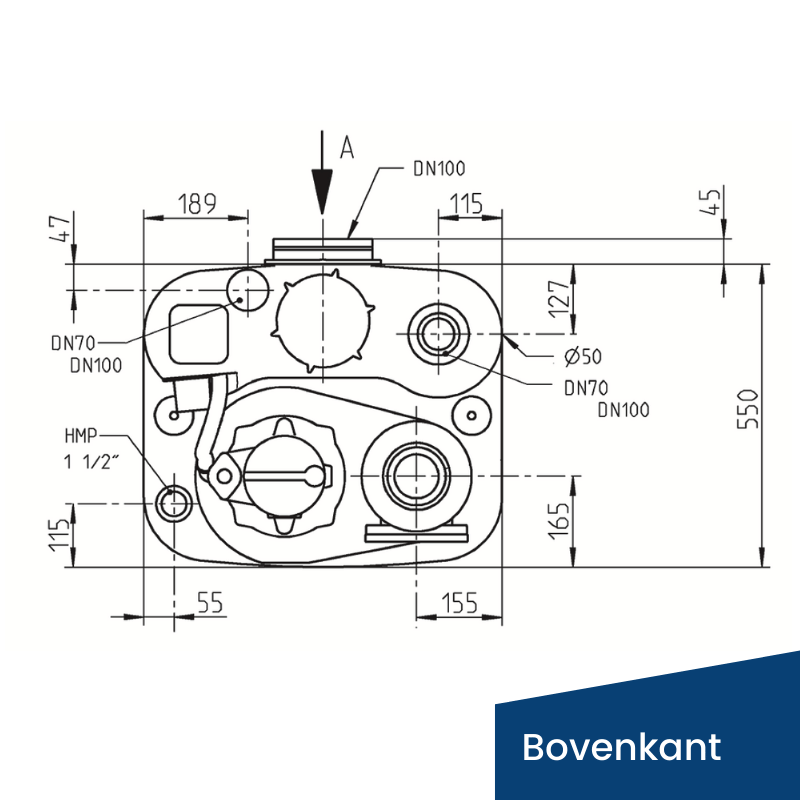

4. Technical drawing COMPLI 400
