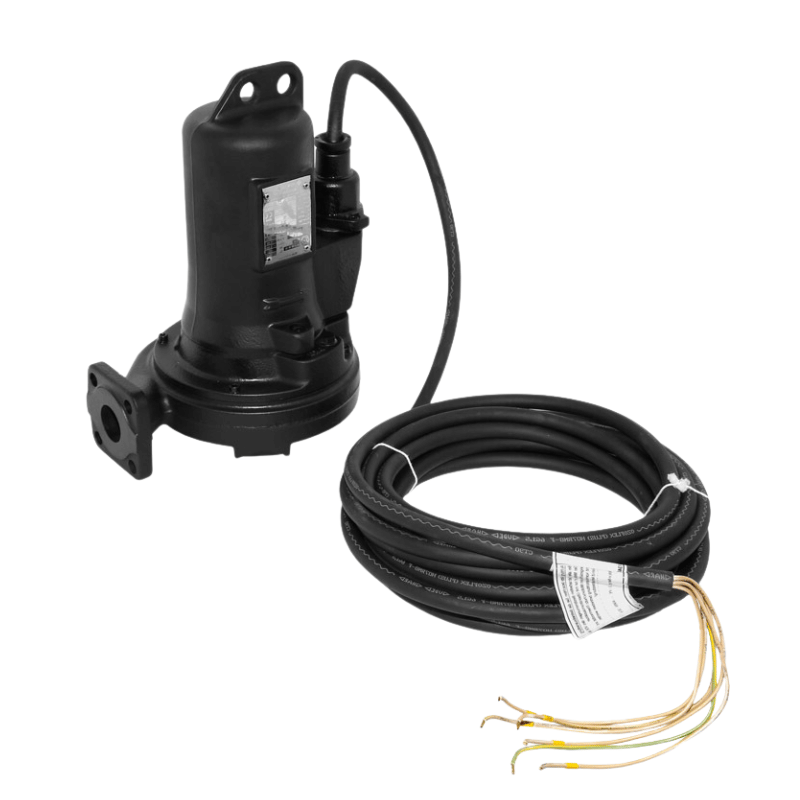

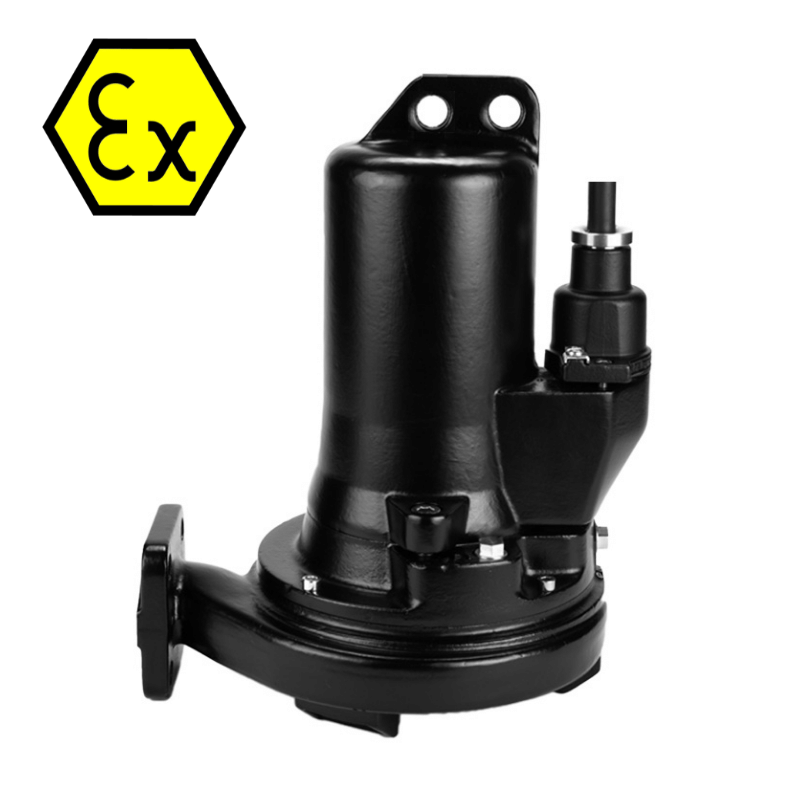

MultiCut submersible pumps from Pentair Jung Pumpen
Submersible pumps with the MultiCut cutting system are used stationary in pressure drainage systems for the dewatering of residential areas or individual houses. They are suitable for the discharge of domestic wastewater with common contaminants (as defined in DIN 1986-3).
Depending on the additional cutting system that may be present, the pressure pipe can be used from DN 32 (without cutting system min. DN 80).
The external MultiCut cutting system ensures maximum operational reliability and excellent discharge properties. The system is equipped with a cutting plate made of hardened stainless steel (RVS) and a triangular knife. This combination reduces coarse contaminants in the wastewater with more than 200,000 cuts per minute before they can enter the hydraulic components of the pump.
Solid particles that cannot be discharged (are too hard/large) are separated by the cutting rotor outside the pump. Specially arranged grooves on the cutting plate ensure that the MultiCut system cleans itself continuously, which provides additional operational reliability and safety.
Advantages and disadvantages:
+ High reliability due to improved cutting technology
+ Adjustable cutting mechanism
+ Oil level in oil reservoir easy to check
+ Explosion-proof design
+ Built-in motor protection
- Cannot cut everything, cutting rotor prevents these parts from being pumped
Downloads:
Product sheet Pentair Jung Pumpen Multicut 08 NL
Manual Pentair Jung Pumpen Multicut 08 / 20
Brochure Pentair Jung Pumpen Multicut
