Pros and cons:
+ Universally applicable for clean and dirty water (solids up to 10 mm)
+ Jacket cooling with top discharge: cooling also at low water levels
+ Removable suction strainer: residual water can be pumped down to 5 mm
+ WA version with automatic float switch, lockable for continuous operation
+ Stainless steel motor housing with thermal protection in the winding
Universal dewatering pump with jacket cooling:

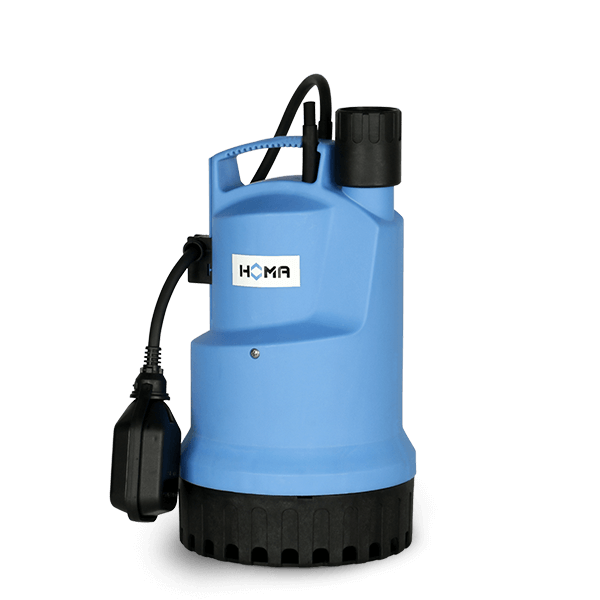

The HOMA Chromatic C250 / C260 is the universal submersible pump for pumping clean or contaminated water. Perfect for basement dewatering, keeping wells, shafts, and spaces dry, draining domestic wastewater (sink, shower, washing machine), lowering surface water, emergency use during floods, and unpressurized irrigation from ditches or reservoirs.
The pressure-tight motor (insulation class B, IPX8) has a thermal sensor in the winding. Motor housing, motor shaft, and screws are made of stainless steel; suction strainer, outer casing, and impeller are made of impact-resistant plastic. The C260 is the more powerful version with higher head and flow rate.
Scope of delivery:
1./3. C250 W and C260 W: pump with double socket including sealing ring, check valve, and hose connection, 10 m cable and plug
2./4. C250 WA and C260 WA: as above, with automatic float switch
Technical specifications HOMA C250 / C260:
| Head (Hmax): | C250: 8.0 m / C260: 11.5 m |
| Flow rate (Qmax): | C250: 12.0 m³/hour / C260: 16.0 m³/hour |
| Power (P2): | C250: 0.26 kW / C260: 0.48 kW |
| Voltage: | 230 Volt / 1 phase |
| Free passage: | 10 mm |
| Discharge connection: | 1¼" |
| Speed: | 2850 rpm |
| Max. medium temperature: | 35 °C (briefly 60 °C) |
| Weight: | C250: 5.1-5.3 kg / C260: 5.9-6.1 kg |
| Article numbers: | 9010365 / 9110365 / 9010390 / 9110390 |
Downloads:
1. Datasheet HOMA C250 / C260 (DE)
2. Manual HOMA C250 / C260 (NL / ENG / DE / FR)
Non-binding advice?
Do you have any questions about this pump and whether it is suitable for your situation? Please feel free to contact our customer service and we will help you as best as possible.
