Pros and cons:
+ Sucks flat to approx. 2 mm residual water level
+ Also suitable for slightly contaminated water (solids up to 3 mm)
+ Jacket cooling with overhead discharge connection: cooling even at low water levels
+ Stainless steel motor housing with thermal protection in the winding
- No float switch (see Sensoflat version for automatic switching)
Powerful flat suction pump for cellars and construction:

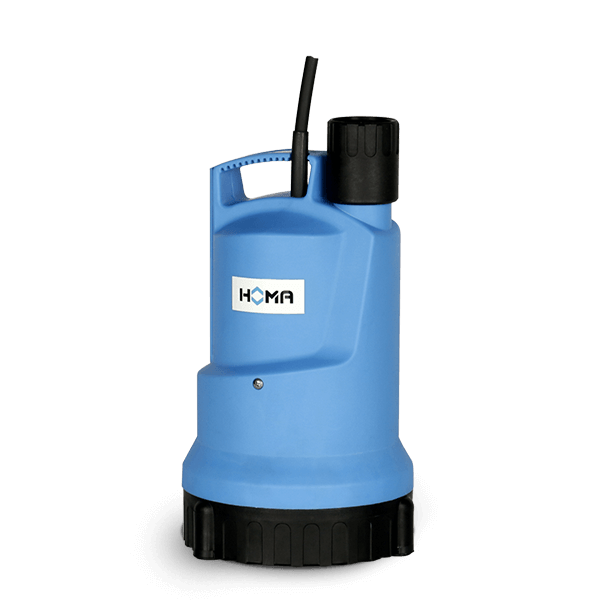

The HOMA Chromatic C240 W Flat is a flat-suction submersible pump with jacket cooling for clean and slightly contaminated water. The pump sucks down to approx. 2 mm residual water level, making it the ideal pump for cellar drainage, keeping sumps, shafts and rooms dry, draining domestic wastewater (sink, shower, washing machine) and as an emergency pump in case of flooding.
The pressure-water tight motor (insulation class B, IPX8) is flushed by the medium and has a thermal sensor in the winding. Motor housing, motor shaft and screws are made of stainless steel; suction strainer, outer housing and impeller are made of impact-resistant plastic.
Scope of delivery:
Pump with double socket 1¼" including sealing ring and hose connection, 10 meter cable and power plug.
Technical specifications HOMA C240 W Flat:
| Head (Hmax): | 8.0 meters |
| Flow (Qmax): | 10.0 m³/hour |
| Power (P2): | 0.25 kW |
| Voltage: | 230 Volt / 1 phase |
| Free passage: | 3 mm |
| Discharge connection: | 1¼" |
| Speed: | 2850 rpm |
| Max. medium temperature: | 35 °C (briefly 60 °C) |
| Weight: | 5.0 kg |
| Article number: | 9110371 |
Downloads:
1. Datasheet HOMA C240 W Flat (DE)
2. Manual HOMA C240 W Flat (NL / ENG / DE / FR)
Non-binding advice?
Do you have questions about this pump and whether it is suitable for your situation? Please feel free to contact our customer service and we will help you as best as possible.
