Pros and Cons:
+ Flat suction down to approx. 2 mm residual water level
+ Jacket cooling with top-mounted discharge connection: sufficient motor cooling even at low water levels
+ Compact and light (2.6 kg), ideal as an emergency pump
+ Solid HOMA quality 'Made in Germany'
- Only suitable for clean water (solids up to 1 mm)
Compact flat suction pump for clean water:

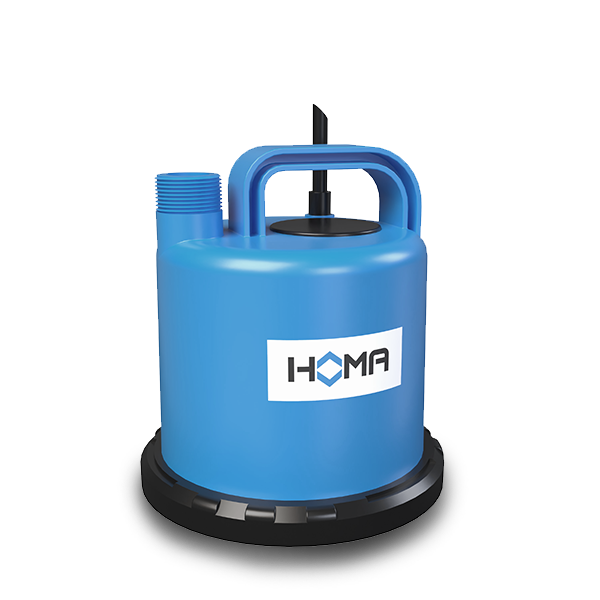

The HOMA C80 W is a compact flat-suction submersible pump with jacket cooling, suitable for continuous operation. The pump suctions down to approx. 2 mm residual water level, making it ideal for emptying cellars, collection basins, and circulating pond water. Due to its low weight, the pump is also excellent for use as an emergency pump in case of flooding.
The seal-less canned motor (insulation class B, IP68) is flushed and cooled by the medium. Motor housing, motor shaft, and screws are made of stainless steel; the suction strainer and outer casing are made of impact-resistant plastic.
Scope of delivery:
Pump with 10-meter cable and power plug.
Technical specifications HOMA C80 W:
| Head (Hmax): | 3.0 meters |
| Flow rate (Qmax): | 2.8 m³/hour |
| Power (P2): | 0.04 kW |
| Voltage: | 230 Volts / 1 phase |
| Free passage: | 1 mm |
| Discharge connection: | ¾" male thread |
| Max. medium temperature: | 35 °C (short-term 60 °C) |
| Weight: | 2.6 kg |
| Article number: | 9010240.01 |
Downloads:
1. Datasheet HOMA C80 (DE)
2. Manual HOMA C80 (NL / ENG / DE / FR)
Non-binding advice?
Do you have questions about this pump and whether it is suitable for your situation? Please feel free to contact our customer service and we will help you as best as possible.
