Pros and cons:
+ Resistant to chemically aggressive water: salt water (up to 15%), brine and condensate
+ Motor housing and motor shaft in highly resistant stainless steel
+ Automatic float switch, lockable for continuous operation
+ Cooling jacket with discharge on top: cooling even at a low water level
+ More powerful than the CH140: 12.5 m³/h and 10.5 m head
− Free passage 10 mm; for coarse dirt a dirty water pump with a larger passage is better
Submersible pump with float switch for chemically aggressive water:

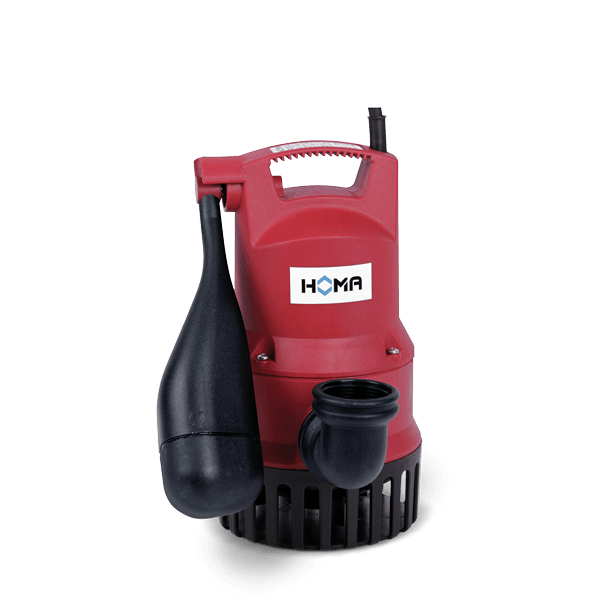

The HOMA Bully CH150 WA is a submersible pump for water that an ordinary pump cannot cope with for long: salty regeneration water from a water softener, brine, condensate from a condensing boiler or swimming pool water. The motor housing and motor shaft are made of highly resistant stainless steel; the outer housing, suction strainer and impeller are of impact-resistant glass-fibre reinforced plastic. So nothing rusts away where the aggressive water flows past.
In practice a standard dirty water pump in a softener sump often seizes up within a few years because of salt deposits and corrosion. Can an ordinary submersible pump handle salt water? Briefly, yes, but for a permanent installation with salty or chemically loaded water a CH version like this one is the better choice.
The CH150 is the more powerful version of the CH140: 12.5 m³ per hour at a maximum head of 10.5 metres. The float switch turns the pump on and off automatically according to the water level. The cooling jacket keeps the motor cooled even at a low water level.
Scope of delivery:
Pump with automatic float switch and float lock, 10 m connecting cable with mains plug, elbow with seals, integrated non-return valve, double nipple and double socket with integrated non-return valve.
Technical specifications HOMA Bully CH150 WA:
| Head (Hmax): | 10.5 m |
| Flow rate (Qmax): | 12.5 m³/h (12,500 litres per hour) |
| Power (P2): | 0.38 kW |
| Voltage: | 230 Volt / 1 phase, 3.5 A |
| Free passage: | 10 mm |
| Discharge connection: | 1¼" female thread |
| Speed: | 2850 rpm |
| Max. medium temperature: | 35 °C |
| Material: | motor housing and motor shaft in highly resistant stainless steel; outer housing, suction strainer and impeller in glass-fibre reinforced plastic |
| Weight: | 6.0 kg |
| Article number: | 9110230 |
Downloads:
1. Manual HOMA Bully C(H)140 / C(H)150 (NL / ENG / DE / FR)
2. Datasheet Bully C140 / C150, dimensions and accessories (NL)
A pump that will not rust away within two years in your softener or condensate sump: the CH150 WA is delivered quickly and free of charge.
Free advice?
Not sure whether your water is chemically aggressive, or which CH pump you need? Feel free to contact our customer service without obligation and we will be glad to help.
