Article number: JP09346

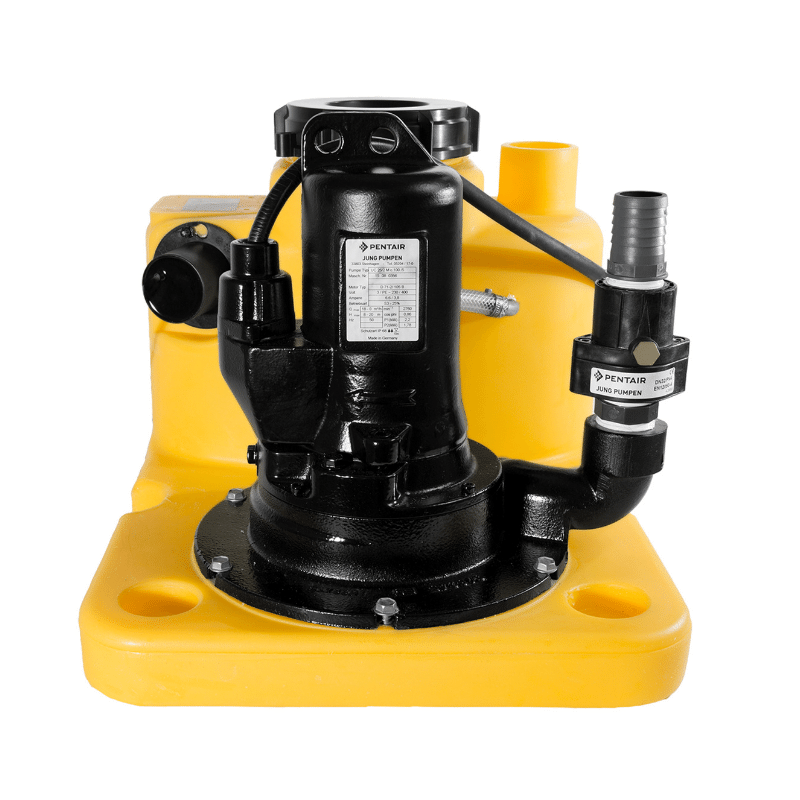

COMPLI 108/2 ME MultiCut
Our most powerful lifting station with cutting mechanism:
The COMPLI 108/2 ME with MultiCut cutting system is used for the disposal of wastewater from special facilities such as mobile sanitary facilities, toilets in production halls or houseboats.
The MultiCut cutting system enables wastewater to be pumped through long and small-dimensioned pressure pipes to the nearest sewer, following the terrain. This method of wastewater transport is often more cost-effective than gravity drainage. The MultiCut cutting system offers maximum operational reliability and excellent drainage properties.
Pros and cons:
+ Suitable for submersion: no risk during flooding
+ High delivery head: connectable to pressure line
+ Additional safety through double check valve
+ Delivered ready for connection: incl. control box
+ Variable connection options mean the unit can be placed almost anywhere
+ Connectivity options with SMART HOME systems
+ Reliable VORTEX impeller and 114l PE tank
- Pumps with cutting mechanisms require backpressure: view stations without cutting mechanisms here
Why a lifting station from Pentair?
The range of faeces lifting stations extends from small installations for processing a single toilet to large installations for hotels, businesses, and industry. All installations operate automatically and differ in container volumes and pump sizes. All installations are fully produced and assembled in Pentair's own factory in Germany. Pentair also produces its own various PE tanks here.
Not 2 but 5 years warranty!
We are convinced of the quality of our products. That is why we offer SHK-FACHBETRIEBEN a 5-year warranty on the purchase of selected products.
Register your pump to claim the warranty!
Scope of delivery:
Ready-to-connect tank installation (115 l) according to EN 12050 with clamp flange DN 100 for inlet height 180/250mm, variable inlet heights DN 150 (180, 275, 315 mm), DN 100 (180-340 mm), additional inlets, 50 mm horizontal and vertical, reducer DN 150/DN 100, built-on submersible pump(s), each with an elastic connection with clamps for the plastic pressure pipe, mounted check valve and a sliding sleeve for ventilation pipe DN 70, automatic level control, control system (protection class IP 44) with motor protection, sound insulation, transformer, mains voltage-dependent, resettable alarm system and potential-free contact for collective fault message, optical display of rotation direction (three-phase), alarm and operation, manual-0-auto switch. On request, the installation can be equipped with a microprocessor control. Cable tank-control 4 m, Cable control-plug 1.5 m.
Delivered per pallet, please take the weight into account.
Technical specifications:

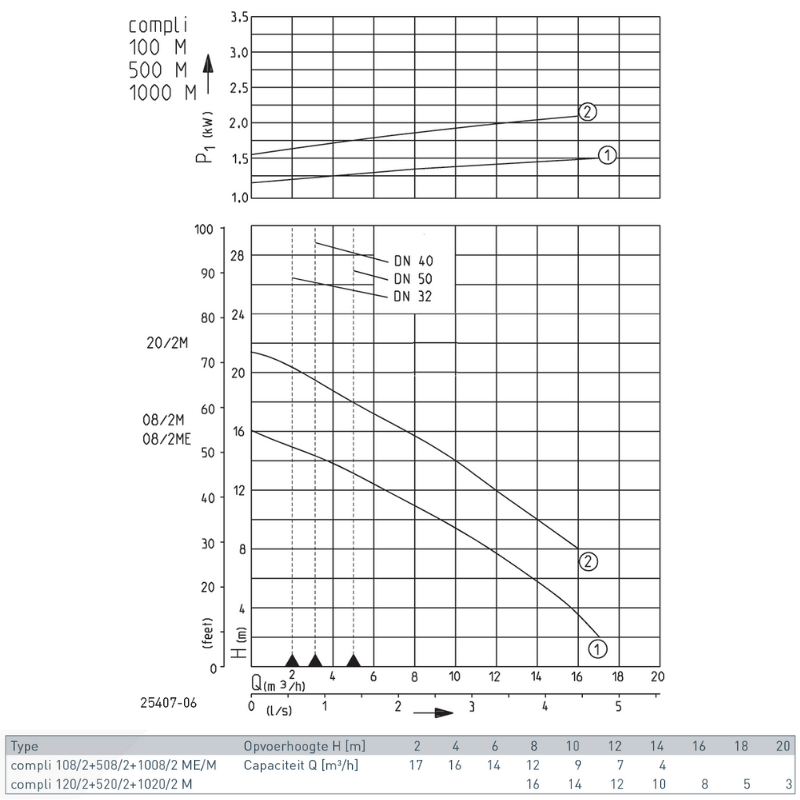

| Delivery head: | 14 meters |
| Flow rate: | 17 m3/hour |
| Power 1 pump: | 1.65 kW |
| Voltage: | 400 Volt |
| Tank capacity: | 38 liters |
| Weight: | 41 kg |

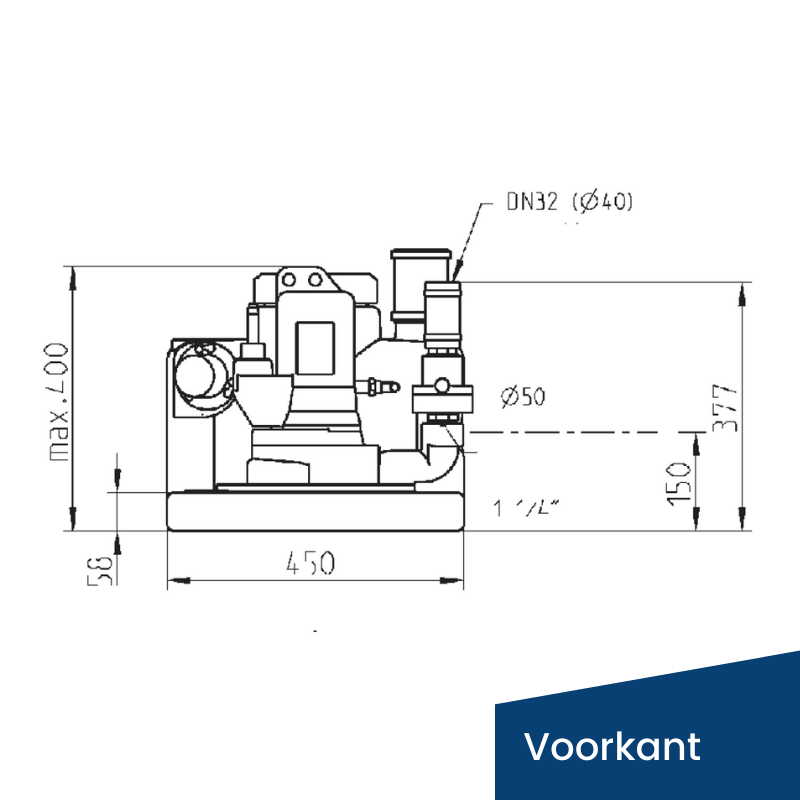

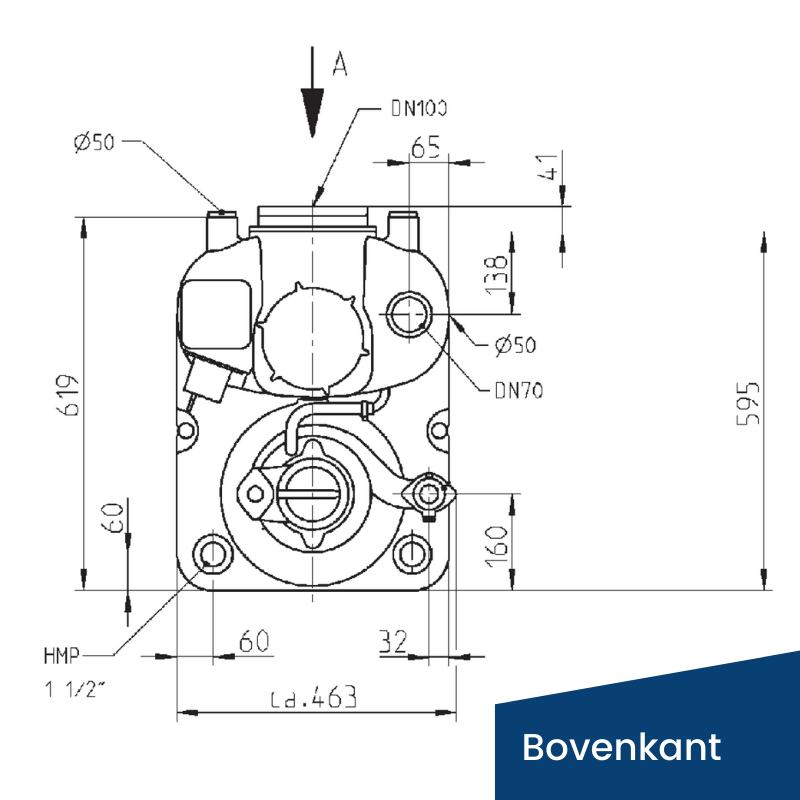

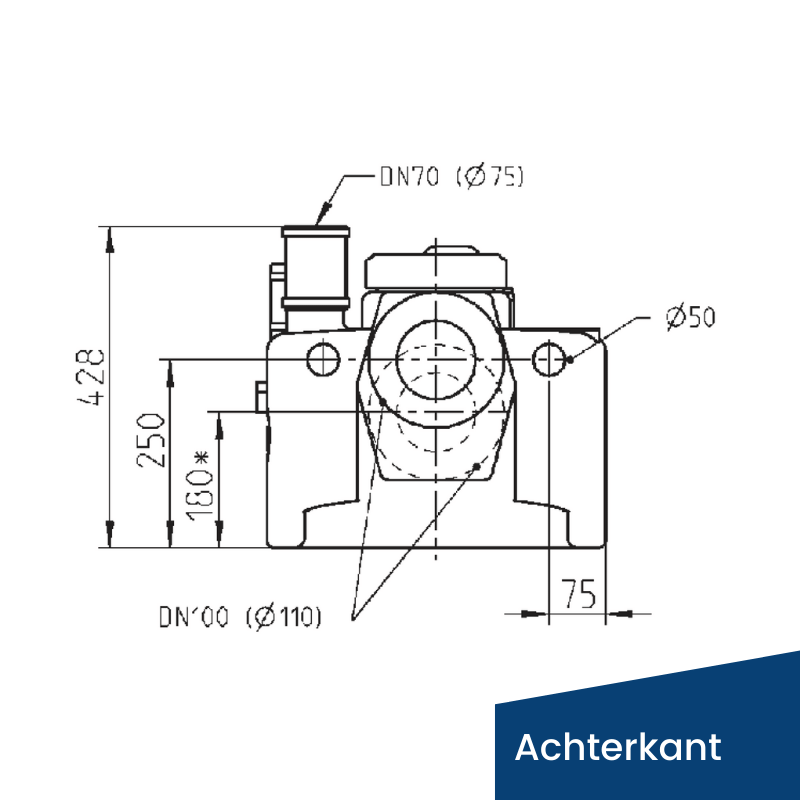

| Dimensions: | See images |
| Plug: | CEE |
| Power cable: | 4m H07RN-F |
| Clearance: | 7mm |
| Impeller: | Vortex, GRP |
Downloads:
1. Product sheet COMLI 100/500/1000 MultiCut
2. User manual COMPLI Series
3. Promo sheet COMPLI series

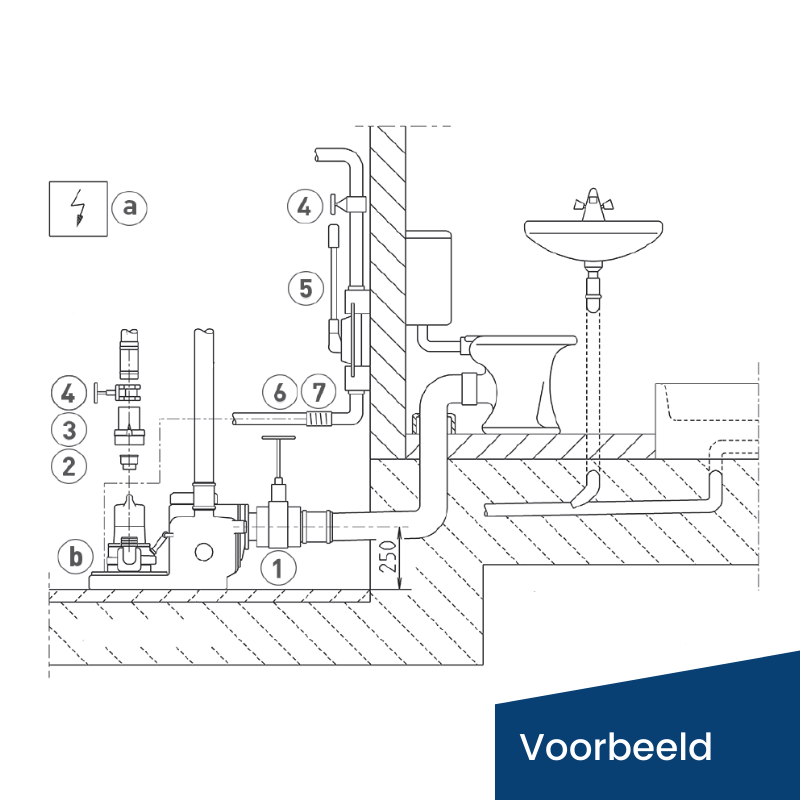

Accessories:
For the accessories listed below, you can request a non-binding offer from us. You will then immediately receive the current delivery times and a competitive total price.
| Item | Description | Dimensions (mm) |
| PVC slide valve (1) | With 2 pipe connections, DN 100, PN 1 | 360x295 (HxW) |
| With 2 arrow connections, DN 150, PN 2 | 660x450 (HxW) | |
| Reducing socket (2) | 1.25" - 1.5" |
|
| 1.25" - 2" |
||
| Check valve (3) | R40 - 1.25" DN 40, PN 4 |
150x120 (HxW) |
| R50 - 2" DN 50, PN 4 |
150x120 (HxW) |
|
| Ball check valve (3) | R50 - 2" DN 50, PN 6 |
185x155 (HxW) |
| Shut-off valve (4) | 1.25" DN 32, PN 16 | 110x60 (HxW) |
| 1.5" DN 40, PN 16 |
125x60 (HxW) | |
| 2" DN 50, PN 16 | 140X70 (HxW) | |
| Hand diaphragm pump (5) | For emergency, H geod 15m |
640x1.5" (HxD) |
| Elastic connection (6) | 1.5" DN 40, PN 4 | 120x50 (HxD) |
| 2" DN 50, PN 4 | 150x63 (HxD) | |
| Hose clamp (7) | 1.25" or 2" | |
| Sealing kit (blank flange) (8) | Necessary for side connection, DN 150 |
*You will need to install a Smart Home application in your home that can receive the FTJP signal.
Dompelpomp.shop installation service:
Would you prefer to have this pump installed by an expert in your home or facility? That's possible! We work with certified installers who have been trained by our suppliers to install our lifting stations, submersible pumps, and pump sumps. Please feel free to contact our customer service for a suitable offer or read more about our installation service here.
Non-binding advice?
Do you have questions about this pump, how to apply it, and whether it is suitable for your situation? Then feel free to contact our customer service and we will try to help you as best as possible.
