Article number: JP43131

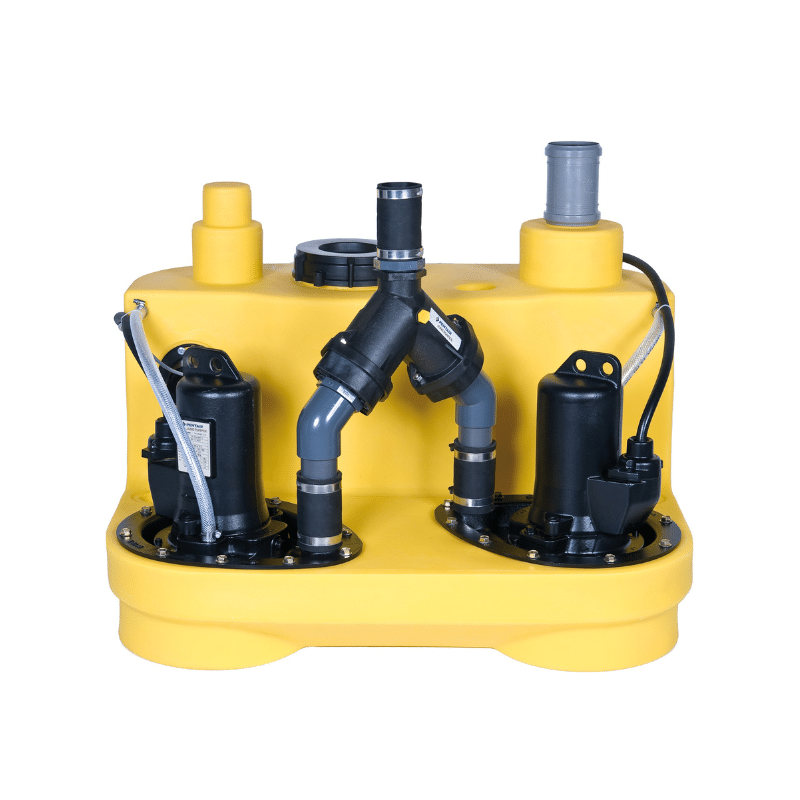

Compli 1008/2 ME MultiCut
Our most powerful lifting station with cutting mechanism:
The COMPLI 1008/2 ME with MultiCut cutting system is used for discharging wastewater from special objects such as mobile sanitation facilities, toilets in production halls or houseboats.
The MultiCut cutting system allows wastewater to be pumped through long and small-dimensioned pressure pipes to the nearest sewer, following the terrain. This form of wastewater transport is often more cost-effective than discharge via gravity pipelines. The MultiCut cutting system offers maximum operational reliability and excellent discharge properties.
Why a Pentair lifting station?
The range of faecal lifting stations extends from small units for processing a single toilet to large installations for hotels, businesses and industry. All systems operate automatically and differ in container volumes and pump sizes. All systems are fully manufactured and assembled in our own factory in Germany. The various PE tanks are also produced here by Pentair itself.
Pros and cons:
+ Suitable for submersion: no risk during flooding
+ High delivery head: can be connected to pressure line
+ Additional safety through double non-return valve
+ Delivered ready for connection: incl. control box
+ Variable connection options mean the unit can be placed almost anywhere
+ Possibilities to connect to SMART HOME systems
+ Reliable VORTEX impeller and PE 114l tank
- Pumps with cutting mechanism require back pressure: view the COMPLI 1000 without cutting system here
Not 2 but 5 years warranty!
We are convinced of the quality of our products. That is why we offer SHK-FACHBETRIEBEN a 5-year warranty on the purchase of selected products.
Register your pump to claim the warranty!
Technical specifications:

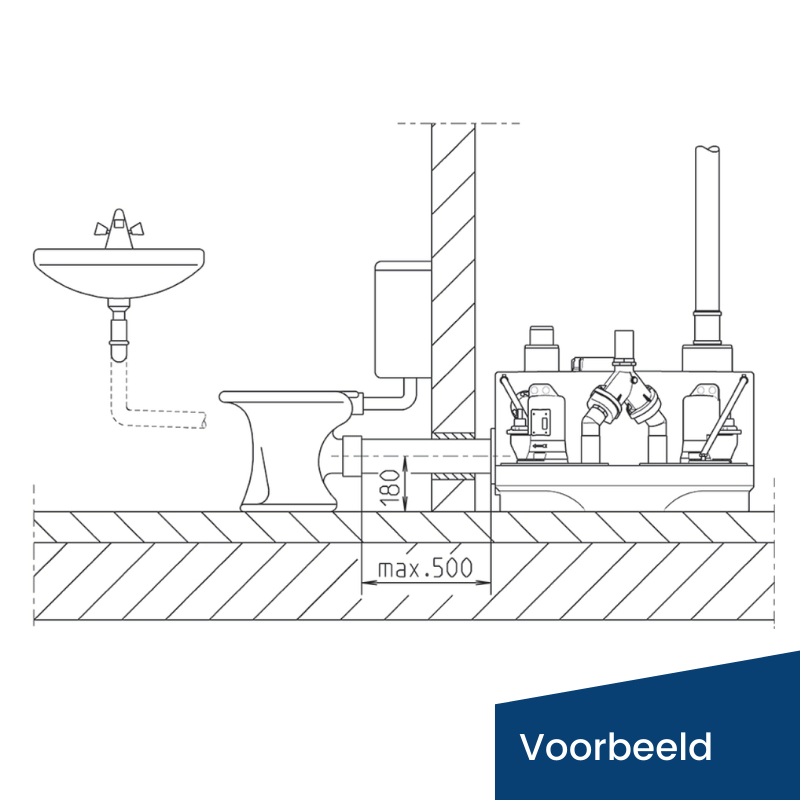

The submersible units are suitable for general use in areas at risk of flooding. The control system must be installed in a flood-protected and well-ventilated area. The high-quality polyethylene (PE) tanks have freely accessible connection options, a revision opening at the top, and an inlet clamping flange for easy installation. The inflow height can be varied depending on the installation: DN 150/DN 50: 180, 275, and 315 mm, DN 100: 180-340 mm.
A DN 150/DN 100 KG reducer is supplied for connecting a DN 100 supply pipe. At the top of the tank, there is a vertical inlet piece for a DN 150 or DN 100 supply pipe. If the rear inlet is not used, it must be closed with the DN 150 closing set (order separately!). These double units have two pumps on the tank, which switch alternately. In case of peak load, both pumps switch on simultaneously.

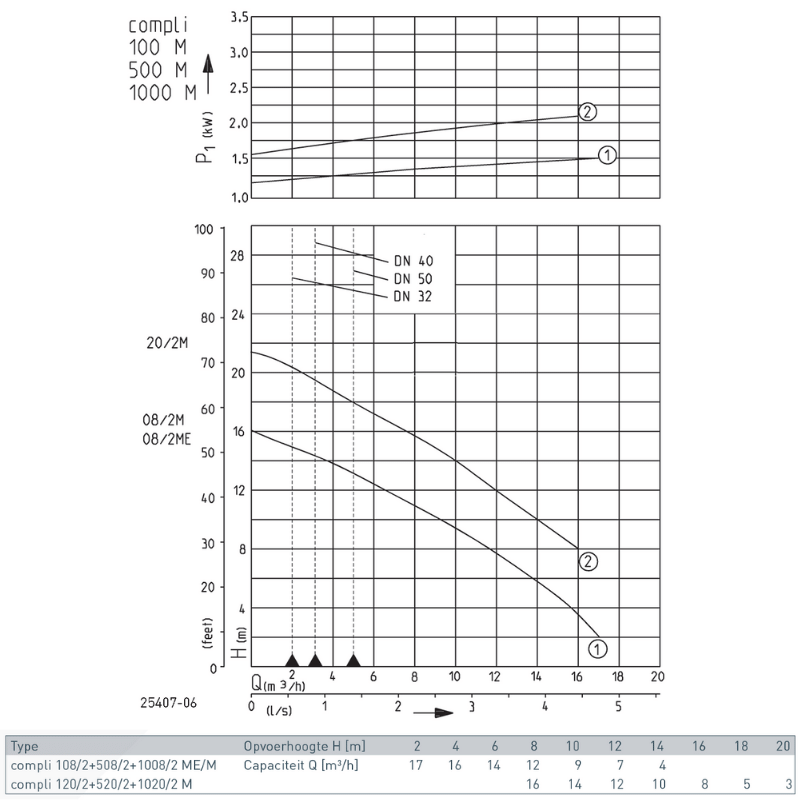

| Delivery head: | 14 meters |
| Flow rate: | 17 m3/hour |
| Power 1 pump: | 1.70 kW |
| Power 2 pumps: | 1.14 kW |
| Voltage: | 230 Volt |
| Tank capacity: | 117 litres |
| Weight: | 77 kg |

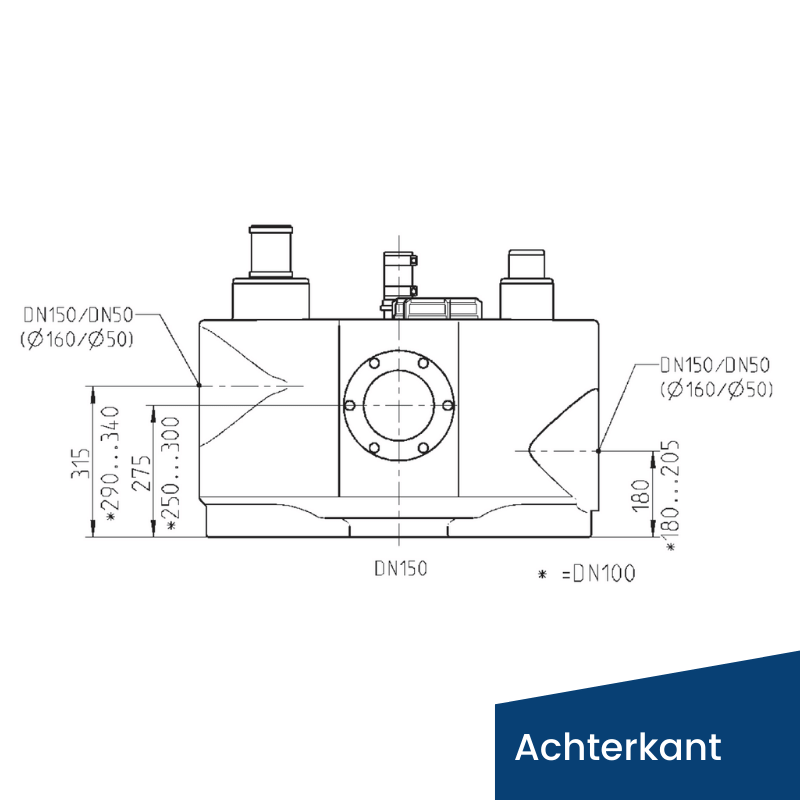

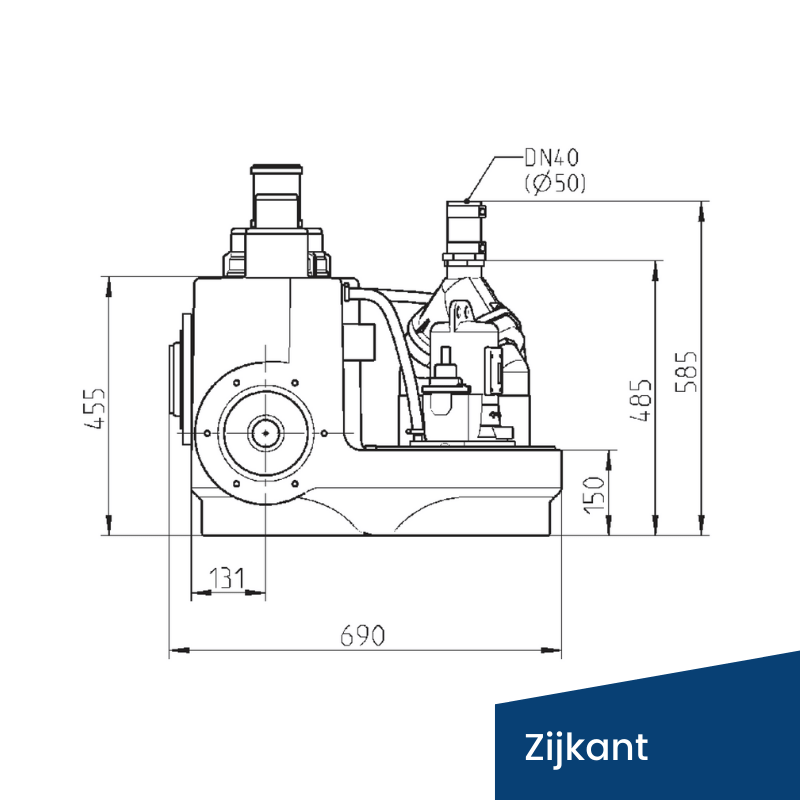

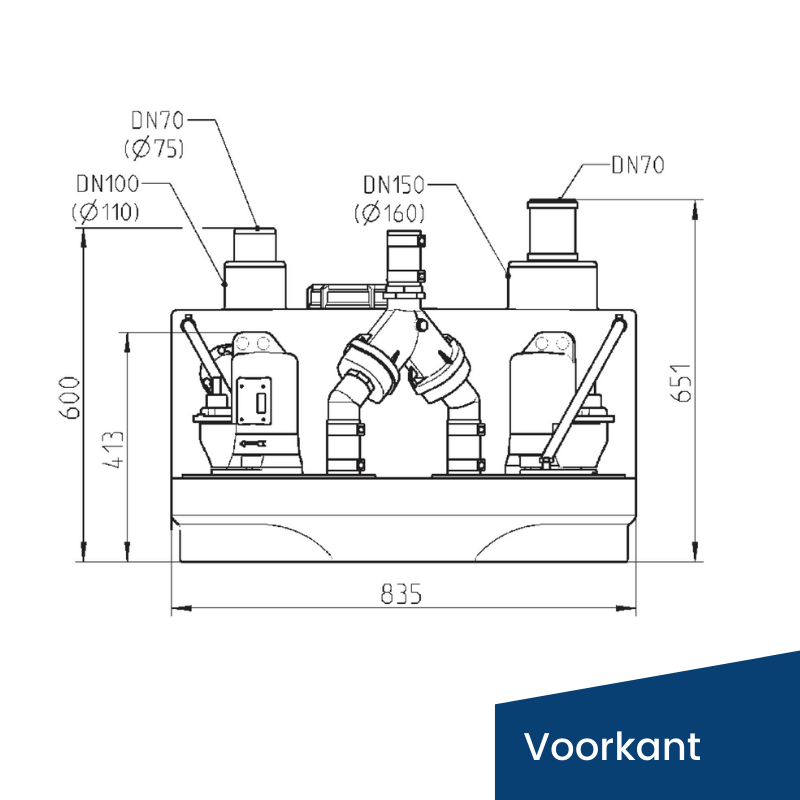

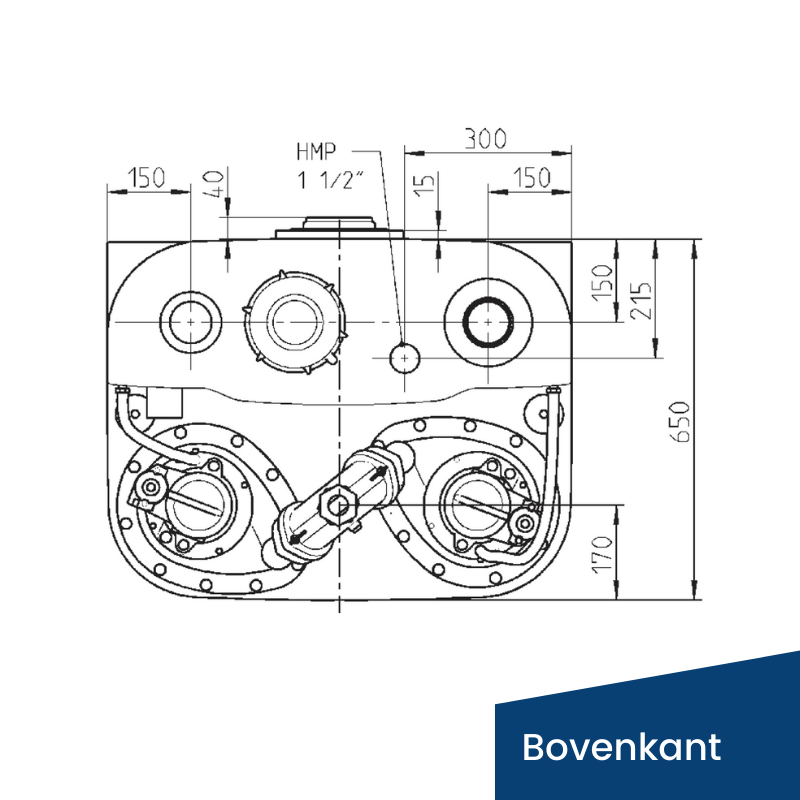

| Dimensions: | See images |
| Plug: | Schuko |
| Power cable: | 4m H07RN-F |
| Free passage: | 7mm |
| Impeller: | Vortex, GRP |
Accessories:
For the accessories below, you can request a non-binding quote from us. You will then immediately receive current delivery times and a competitively priced total.
| Item | Description | Dimensions (mm) |
| PVC gate valve (1) | With 2 pipe connections, DN 100, PN 1 | 360x295 (HxW) |
| With 2 pipe connections, DN 150, PN 2 | 660x450 (HxW) | |
| Reducer socket (2) | 1.25" - 1.5" |
|
| 1.25" - 2" |
||
| Non-return valve (3) | R40 - 1.25" DN 40, PN 4 |
150x120 (HxW) |
| R50 - 2" DN 50, PN 4 |
150x120 (HxW) |
|
| Ball check valve (3) | R50 - 2" DN 50, PN 6 |
185x155 (HxW) |
| Shut-off valve (4) | 1.25" DN 32, PN 16 | 110x60 (HxW) |
| 1.5" DN 40, PN 16 |
125x60 (HxW) | |
| 2" DN 50, PN 16 | 140X70 (HxW) | |
| Hand diaphragm pump (5) | For emergencies, H geo 15m |
640x1.5" (HxD) |
| Elastic connection (6) | 1.5" DN 40, PN 4 | 120x50 (HxD) |
| 2" DN 50, PN 4 | 150x63 (HxD) | |
| Hose clamp (7) | 1.25" or 2" | |
| Sealing kit (blind flange) (8) | Necessary for side connection, DN 150 |
*You must also install a Smart Home application in your house that can receive the FTJP signal.
Dompelpomp.shop installation service:
Would you prefer to have this pump installed by an expert in your home or property? You can! We work with certified installers who have been trained by our suppliers to install our lifting stations, submersible pumps, and pump sumps. Feel free to contact our customer service for a suitable offer or read more about our installation service here.
Scope of delivery:
Ready-to-connect tank installation (115 l) according to EN 12050 with clamping flange DN 100 for inlet height 180/250mm, variable inlet heights DN 150 (180, 275, 315 mm), DN 100 (180-340 mm), additional inlets, 50 mm horizontal and vertical, reducer DN 150/DN 100, mounted submersible pump(s), each with an elastic connection with clamps for the plastic pressure pipe, mounted non-return valve and a sliding sleeve for ventilation pipe DN 70, automatic level control, control system (protection class IP 44) with motor protection, sound insulation, transformer, mains voltage-dependent, resettable alarm system and potential-free contact for collective fault message, optical display of rotation direction (three-phase), alarm and operation, manual-0-auto switch. On request, the installation can be equipped with a microprocessor control. Cable tank–control 4 m, Cable control–plug 1.5 m.
Delivered per pallet, please take the weight into account.
Downloads:
1. Product sheet COMLI 100/500/1000 MultiCut
2. DWG drawing COMLI 1000
3. User manual COMPLI Series
4. Promo sheet COMPLI series
Non-binding advice?
Do you have questions about this pump, how to apply it, or whether it is suitable for your situation? Please feel free to contact our customer service and we will do our best to help you.
