Article numbers: 1EZEDP734 and 1EZEDP753
Pros and Cons
+ Cutting mechanism with three-bladed knife for fibers and stringy waste
+ High discharge pressure, suitable for longer or narrower discharge pipes
+ Robust cast iron construction and two mechanical shaft seals in oil chamber
+ Choice of 230 V and 400 V
- The correct version must be chosen based on the operating point and pipe resistance

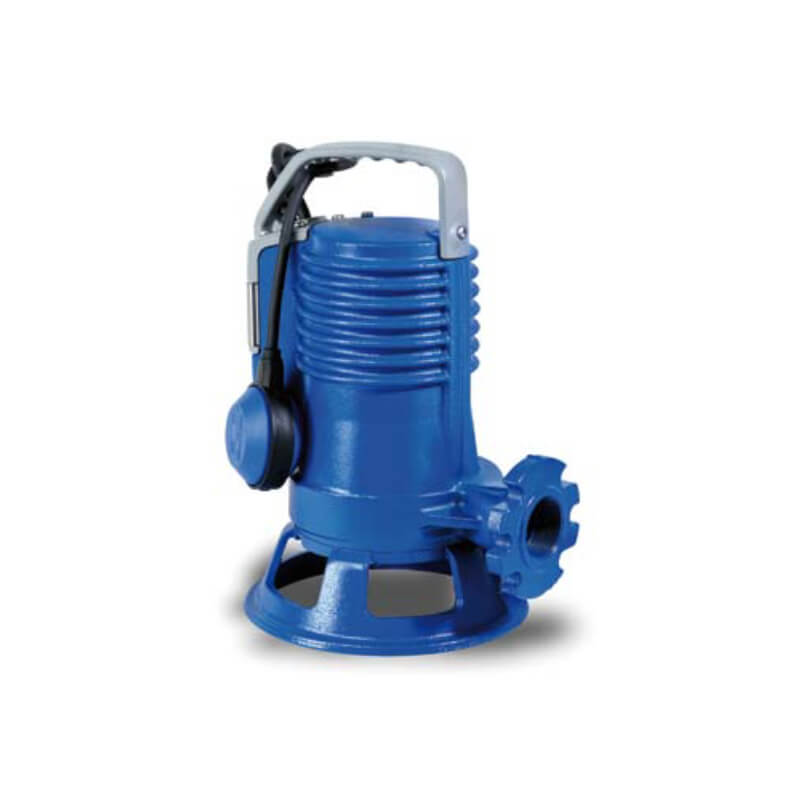

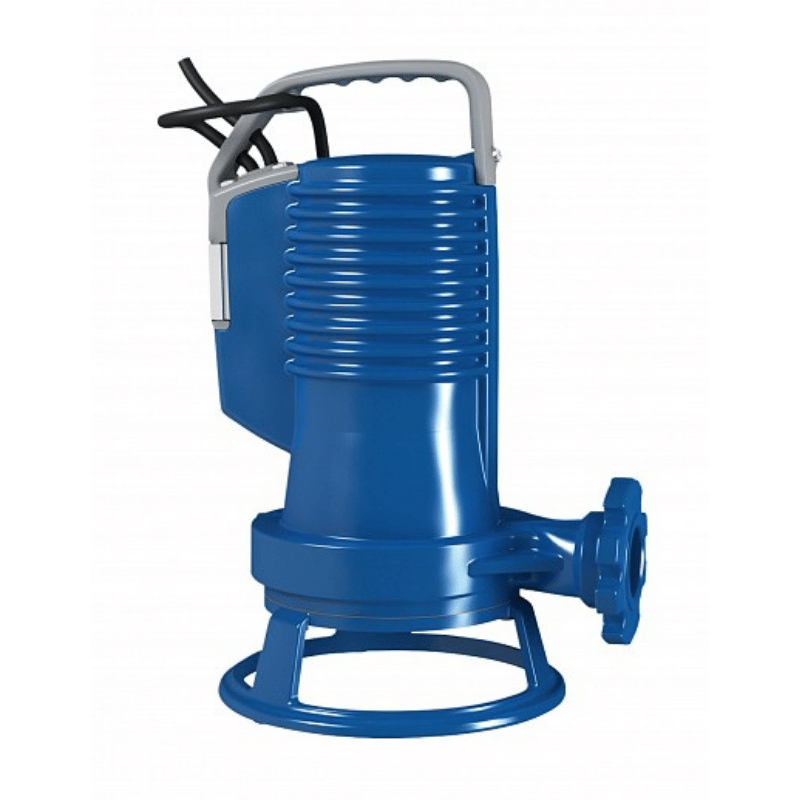

Wastewater submersible pump with cutting mechanism
The Zenit GR BluePro shreds fibers and stringy waste before the wastewater enters the discharge pipe. The rotating three-bladed knife works against a steel cutting plate. This pump is intended for unscreened domestic and light civil wastewater, for example in a pump sump or small lifting station.
A cutting pump is particularly interesting when a higher discharge pressure is required or when the discharge pipe is relatively long or narrow. The 400 V version is more powerful, but voltage alone does not determine the choice: capacity, head, and pipe loss must be assessed together.
Which version do you choose?
| Version | Voltage | Power P2 | Discharge connection | Article number |
| 150/2/G40H | 230 V / 1 phase | 1.10 kW | G 1½″ / DN32 | 1EZEDP734 |
| 200/2/G40H TRG2SIC | 400 V / 3 phases | 1.50 kW | G 1½″ / DN32 | 1EZEDP753 |
Technical features
| Pump type | Wastewater submersible pump with cutting mechanism |
| Pump housing and impeller | Cast iron |
| Cutting knife | Three-bladed knife made of chrome steel |
| Protection class | IP68 |
| Maximum medium temperature | 40 °C |
| Maximum submersion depth | 20 meters |
| Shaft seal | Two mechanical silicon carbide seals in oil chamber |
Scope of delivery
Zenit GR BluePro submersible pump in the selected version. Control, plug, and level control vary depending on the electrical version and installation; have these components checked before ordering.
Download and video
Declaration of Conformity Zenit blue/bluePRO (English)
Need help choosing?
Send us the desired capacity, vertical head, pipe length, pipe diameter, and available voltage. We will be happy to calculate the operating point and the suitable version with you via the contact form.
