Pros and cons:
+ High-pressure borewell pump with a head of up to 95 meters (H804)
+ Slim 4"-5" design: fits into narrow wells and boreholes
+ Stainless steel housing and suction strainer, closed multi-channel impellers
+ H816 SW with side suction for rainwater tanks and cisterns
- Only suitable for clean water (passage 1.5 mm)
High-pressure borewell pump for irrigation and water supply:

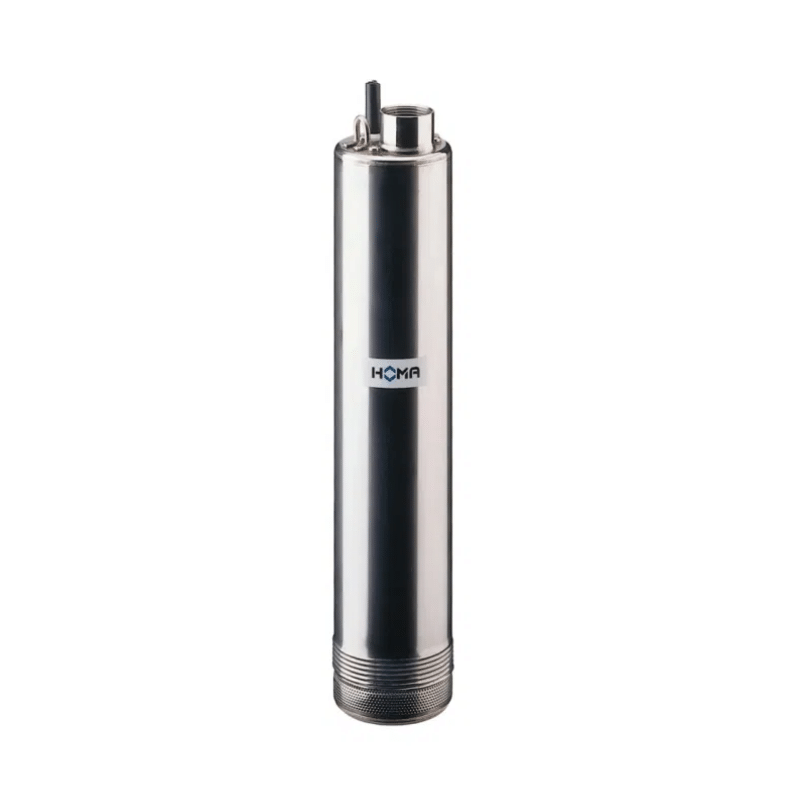

The HOMA H800 series consists of high-pressure borewell pumps for clean water from wells, boreholes, rainwater pits, and cisterns. Anyone who wants to irrigate their garden or crops with groundwater needs pressure — a regular submersible pump only reaches a few dozen meters, these multi-stage borewell pumps deliver 45 to 95 meters of head. Enough for irrigation with sprinklers, pressure boosting in the house, or sustainable water supply from your own well.
Which one to choose? In practice, the choice is mainly a matter of desired pressure: the H812 WA (45 m) for simple garden irrigation, the H816 WA (68 m) and H818 WA (82 m) for larger plots — all three with float switch for dry-running protection. The H802/H804/H806 without float switch are for fixed installations, up to 95 meters head for the H804. The H816 SW sucks in from the side, making it ideal for cisterns: combined with a floating suction, it pumps away the cleanest water just below the water level.
Scope of delivery:
Pump with 20 m cable and plug, or control box. WA versions with float switch.
Technical specifications HOMA H802 - H818:
| Head (Hmax): | 45 - 95 m (per version, see variant selection) |
| Flow rate (Qmax): | 3.3 - 5.7 m³/hour |
| Power (P2): | 0.55 - 1.20 kW |
| Voltage: | 230 Volt / 1 phase |
| Free passage: | 1.5 mm |
| Impeller: | closed multi-channel impellers (multi-stage) |
| Discharge connection: | 1¼" int. (H802 and H816 SW: 1" int.) |
| Diameter: | 4" - 5" |
| Article numbers: | see versions (SKU per variant) |
Downloads:
1. Datasheet HOMA H802 - H818 (DE)
Non-binding advice?
Not sure what head your irrigation needs? Feel free to contact our customer service — we'd be happy to calculate it for you.
