RP SOS PUMP flat suction submersible pump
THE solution for waterlogging... mopping is now a thing of the past!
The ultimate flat suction submersible pump for every installer, roofer and professional end-user. This compact and robust aluminum submersible pump is ideally suited for pumping water from flat roofs, cellars, swimming pools and ponds, among other things. Thanks to the powerful 290W oil-filled motor, a discharge head of 7 meters can be achieved and a water displacement of up to 5000 liters per hour is possible.
The RP SOS PUMP is available in the following 4 versions:
1. RP SOS PUMPThe RP SOS PUMP can flat suction down to 2mm residual level (wipe-dry) and continues to displace water from 5mm water level due to the presence of a de-aeration valve. In the standard version, the pump does not switch off automatically if there is no more water. Supplied complete with a 3-stage hose connection fitting the 1" internal thread connection of the pump, suitable for connecting 13-19 or 25mm hose. It is important to know that in case of a cable break, the 10-meter long cable can be easily and inexpensively replaced.
2. RP SOS PUMP AUT CRAB
The RP CRAB float is equipped with a sensor that detects water or no water. As soon as there is water, the RP CRAB will switch on the pump, and as soon as there is no more water, the RP CRAB will switch off the pump. The on and off time can be set by yourself with the included magnetic key. The pump and float are connected to each other via the float's adapter plug and 5 meters of cable. Clean electrodes at least twice a year for scale, etc.!
3. RP SOS PUMP AUTO LEVEL CONTROL
The RP LEVEL CONTROL is a float with electrodes that you can easily mount on the pump's handle. It is particularly suitable for placement in a small space where a conventional float does not have enough room to switch. You can easily set the on and off levels (pumping down to 2mm) yourself. Here too, the pump and float are connected to each other via the float's adapter plug. Clean electrodes at least twice a year for scale, etc.!

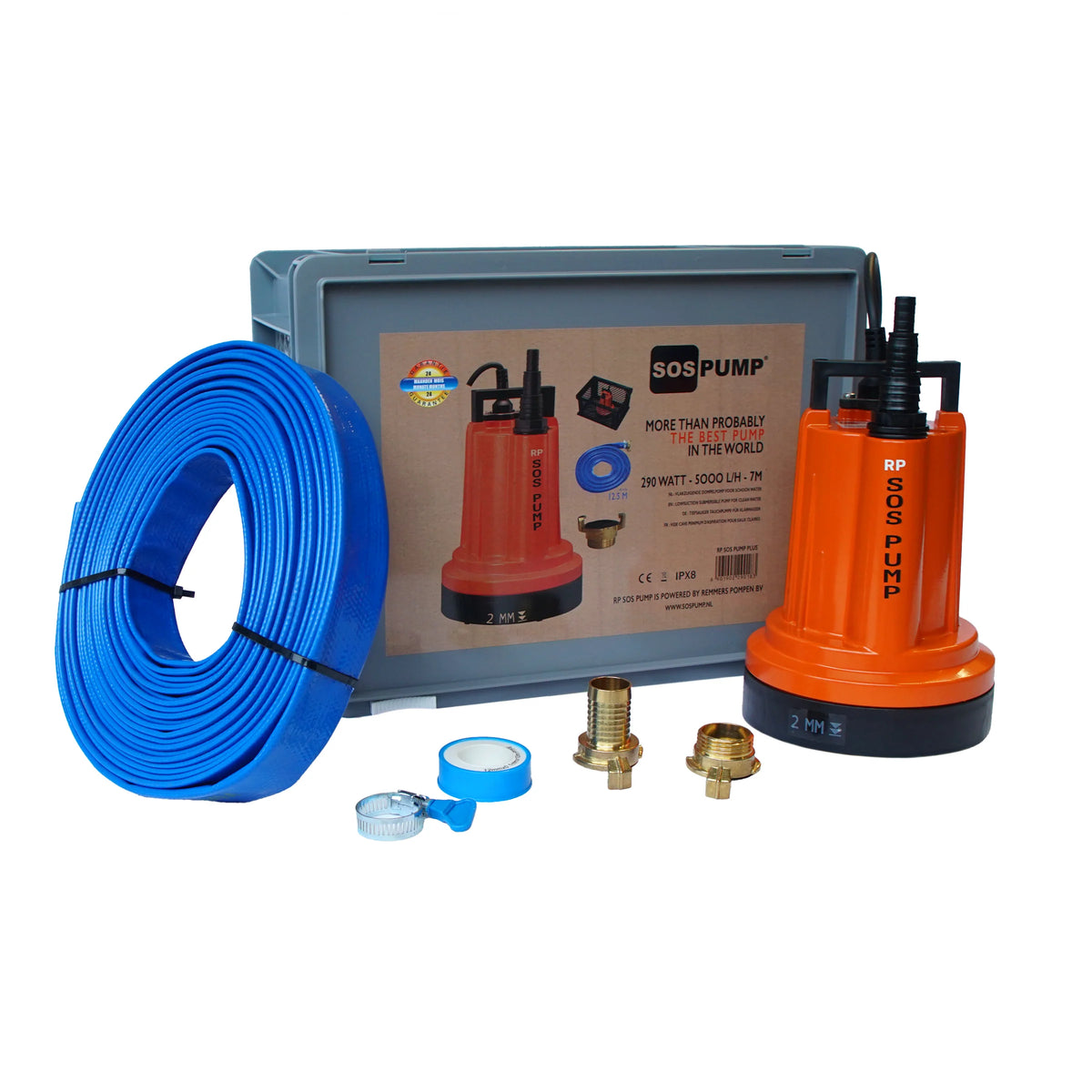

Our motto is an SOS PUMP PLUS for every company bus. The plug & play set for every installer, roofer, and professional end-user. Complete with filter/storage box (so no coarse dirt goes through the pump), 12.5 meters of flat hose, and the necessary couplings. After use, it can be easily stored in the bus or garage/shed. For the last centimeters, you need to remove the pump from the box.
5. RP CRAB FLOAT (LOOSE)
Separate electronic float switch. To be mounted on any submersible pump with a 230-volt plug. The float has 5 meters of cable between the float and the adapter plug. Clean electrodes at least twice a year for scale, etc.!
Technical specifications
| Head: | 7 meters |
| Flow rate: | 5 m3/hour / 5000 l/s |
| Power: | 290 watts |
| Voltage: | 220 Volt |
| Discharge connection: | Top, 13/19 or 25 mm |
| Power cable: | 10 meters including power plug |
| Scope of delivery |
Flat suction pump, hose, 2 pcs. hose nozzle, teflon tape, 2 pcs. hose clamp, crate incl. lid |
