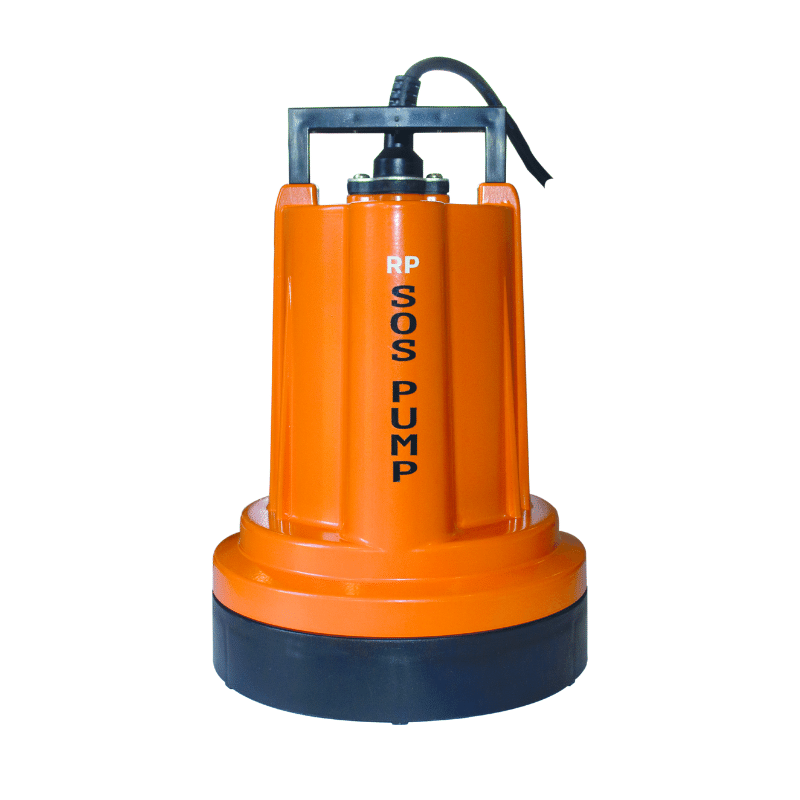

RP SOS PUMP flat suction submersible pump
THE solution for waterlogging... mopping is now a thing of the past!
The ultimate flat suction submersible pump for every installer, roofer and professional end-user. This compact and robust aluminium submersible pump is extremely suitable for pumping water from flat roofs, cellars, swimming pools and ponds, among other things. The powerful 290W oil-filled motor can achieve a head of 7 metres and a water displacement of up to 5000 litres per hour.
The RP SOS PUMP is available in the following 4 versions:
1. RP SOS PUMPThe RP SOS PUMP can suck flat down to a residual level of 2mm (mop-dry) and continues to displace water from a water level of 5mm due to the presence of a de-aeration valve. In the standard version, the pump does not switch off automatically if there is no more water. Supplied complete with a 3-step hose nozzle fitting the 1" internal thread connection of the pump, suitable for connecting 13-19 or 25mm hoses. It is important to know that in case of cable breakage, the 10-meter long cable can be easily and inexpensively replaced.

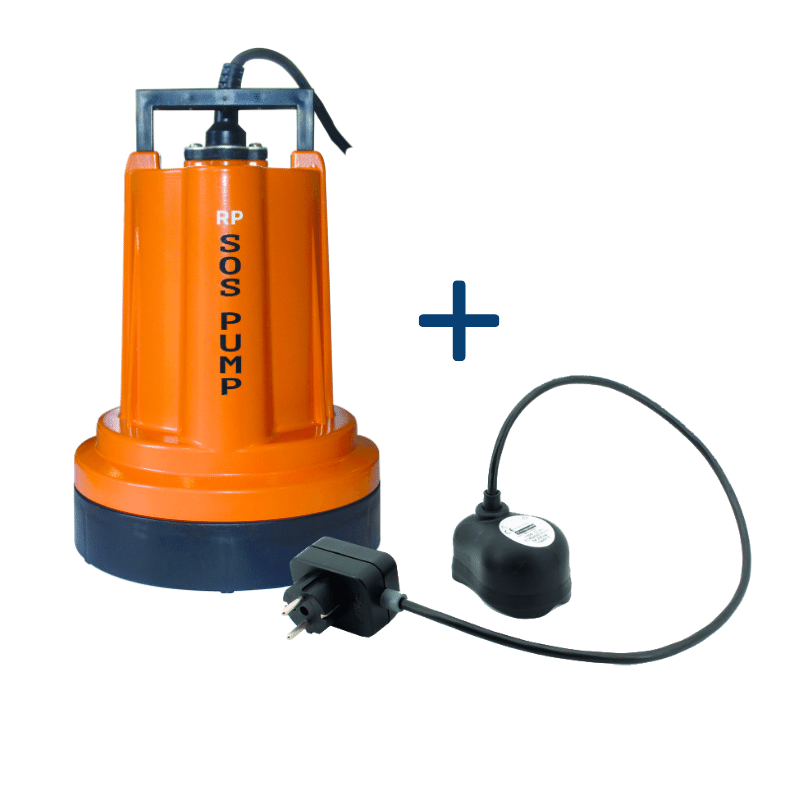

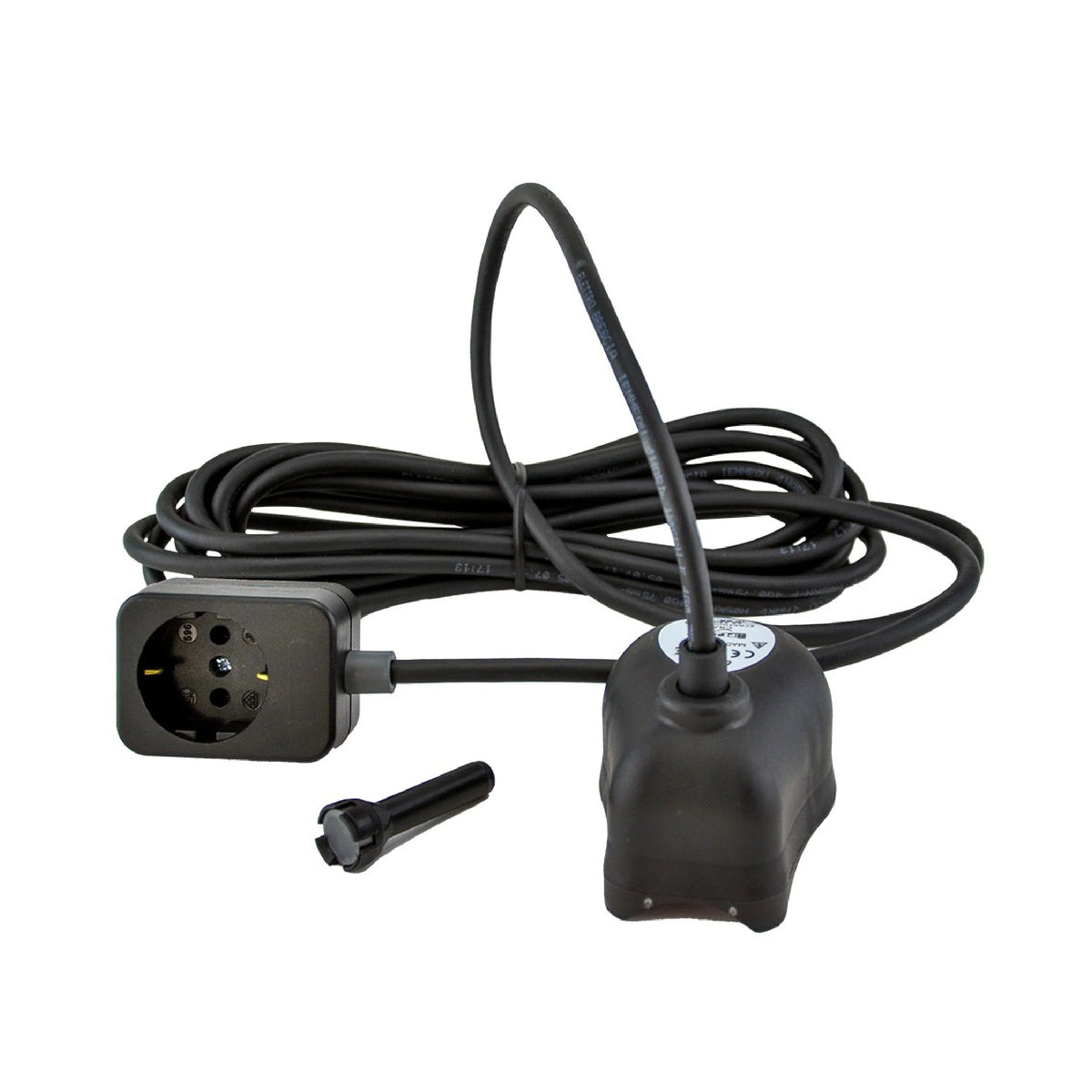

2. RP SOS PUMP AUT CRAB

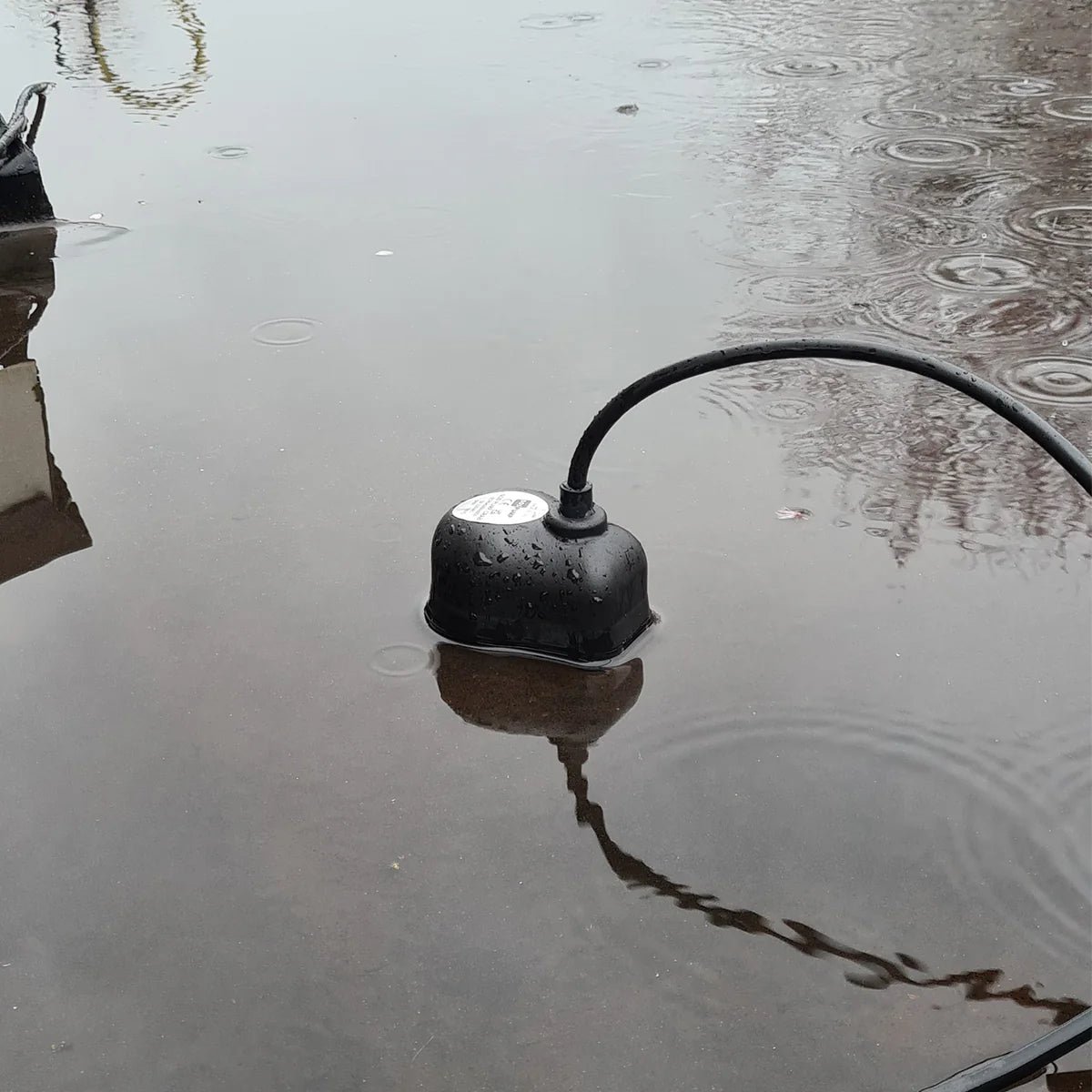

The RP CRAB float is equipped with a high-quality sensor that detects whether water is present or not. As soon as the RP CRAB float switch comes into contact with water, it will switch on the pump, and as soon as the pump has pumped away all the water, so that the sensor is no longer in contact with water, the pump will switch off automatically.
You can set the on and off time yourself with the supplied magnetic key; this process is clearly described in the included manual. The pump and float are connected to each other via the float's mating plug and a 10-meter power cable.
Place the pump half a centimetre lower than the crab float (otherwise the pump may suck irregularly and not build up enough pressure in the pump and hose). Check every six months whether the electrodes under the crab sensor are clean, and clean them if they are dirty.
Place the pump half a centimetre lower than the crab float (otherwise the pump may suck irregularly and not build up enough pressure in the pump and hose). Check every six months whether the electrodes under the crab sensor are clean, and clean them if they are dirty.
3. RP SOS PUMP AUTO LEVEL CONTROL
The RP LEVEL CONTROL is a float with electrodes that you can easily mount on the pump's handle. It is particularly suitable for placement in small spaces where a conventional float does not have enough room to switch. You can easily set the on and off levels yourself (pumping down to 2mm). Here, too, the pump and float are connected via the float's mating plug. Clean the electrodes at least twice a year to remove deposits, etc.!
An SOS PUMP PLUS for every commercial van is our motto. The plug & play set for every installer, roofer and professional end user. Supplied complete with filter/storage box (so no coarse dirt goes through the pump), 12.5 metre flat hose and the necessary couplings. Easy to store in the van or garage/shed after use. For the last few centimetres, you will need to remove the pump from the box.
Order the RP SOS PUMP PLUS pump set HERE

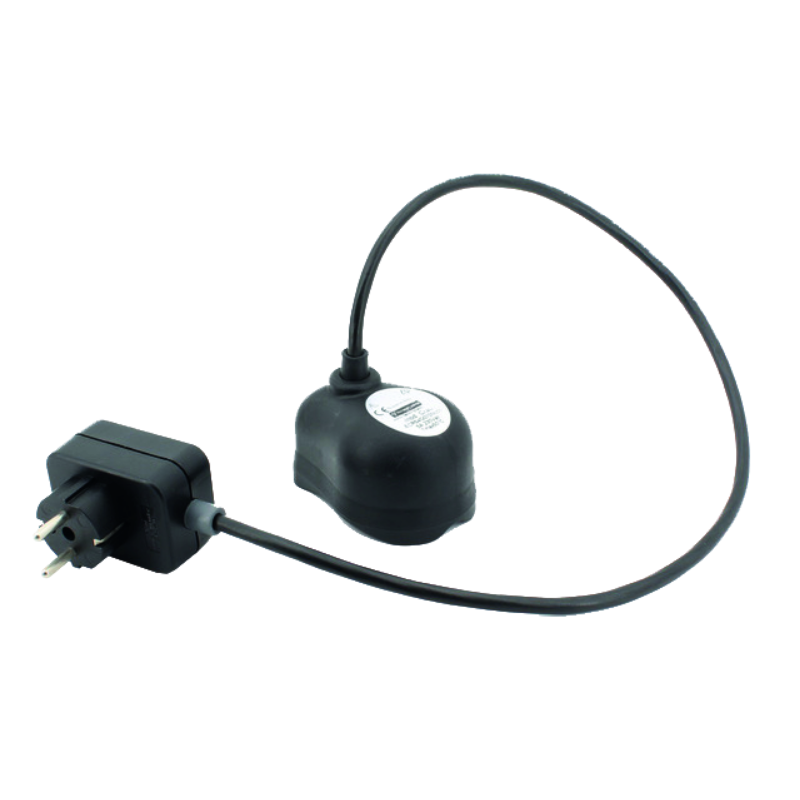

5. RP CRAB FLOAT (LOOSE)
Separate electronic float switch. To be mounted on any submersible pump with a 230-volt plug. The float has a 5-meter cable between the float and the mating plug. Clean electrodes at least twice a year from deposits etc.!
Technical specifications
| Supplier item number: | RP.0572 + RP.0568 |
| Head: | 7 metres |
| Flow rate: | 5 m3/hour / 5000 l/s |
| Power: | 290 watts |
| Voltage: | 220 Volt |
| Discharge connection: | Top, 13/19 or 25 mm |
| Power cable: | 10 metres incl. mating plug for the level switch |
| Scope of delivery | SOS flat suction submersible pump with float |
| Manual | NL/DE/FR/EN |
